DBETBX Size 6 Series 1x

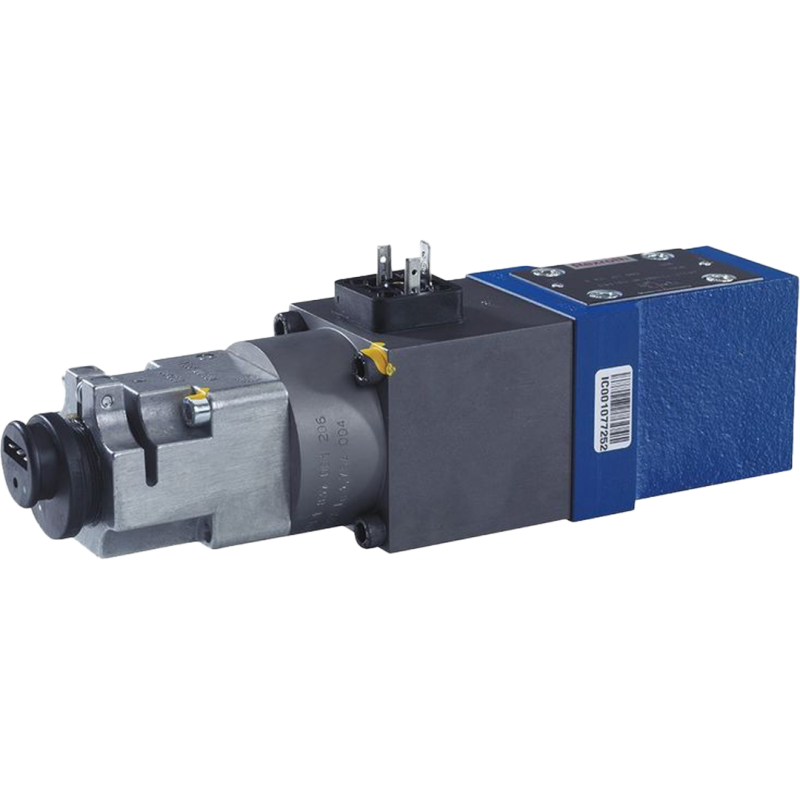

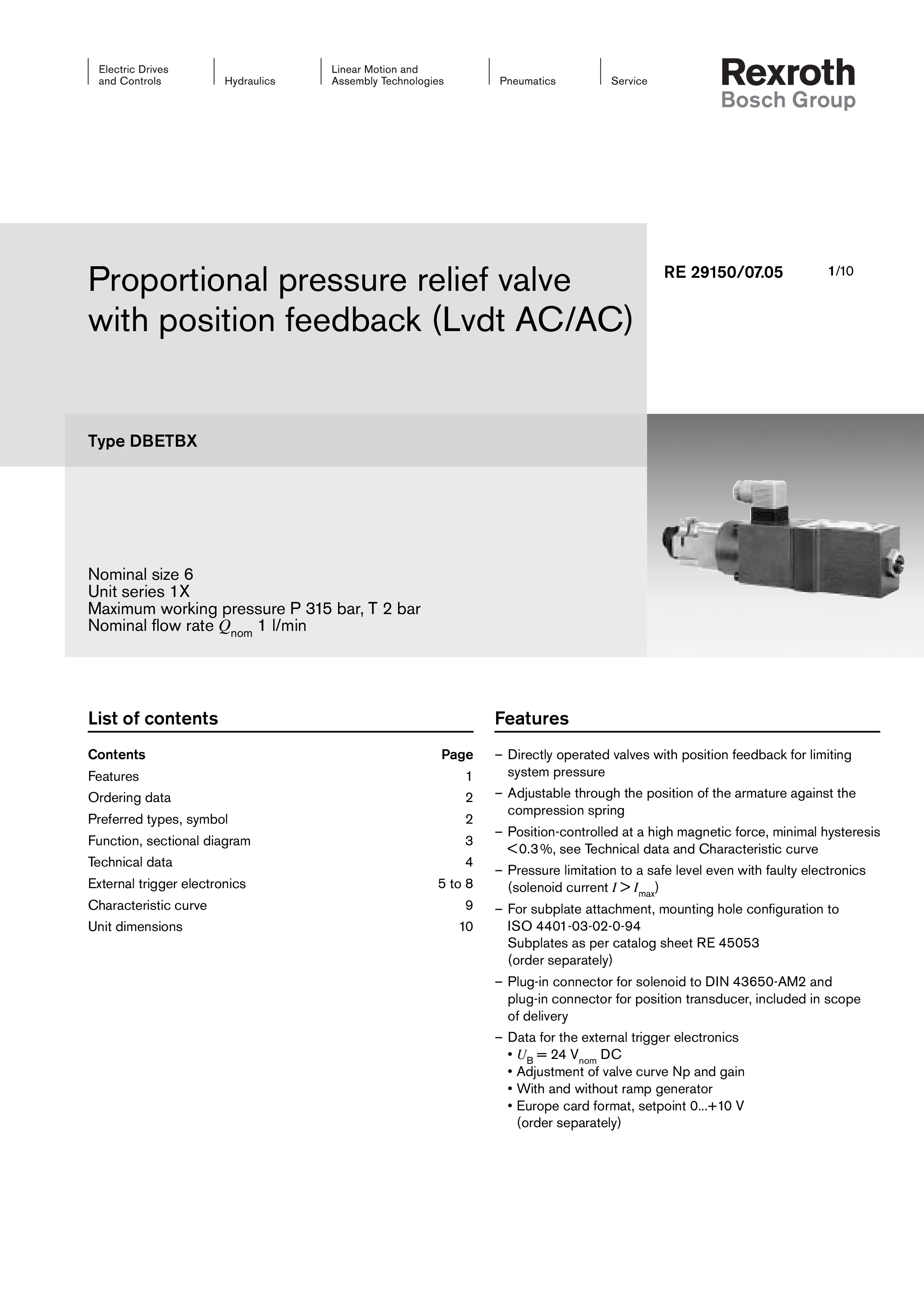

Bosch Rexroth Direct Operated Proportional Pressure Relief Valves DBETBX

• Component series 1X
• Size 6
• Maximum operating pressure 315 bar
• Maximum flow 1 l/min

Features:

• Directly operated valves with position feedback for limiting system pressure
• Adjustable through the position of the armature against the compression spring
• Position-controlled at a high magnetic force, minimal hysteresis < 0.3 %, see Technical data and Characteristic curve
• Pressure limitation to a safe level even with faulty electronics (solenoid current I > Imax)
• For subplate attachment, mounting hole configuration to
  ISO 4401-03-02-0-94
  Subplates as per catalog sheet RE 45053
  (order separately)
• Plug-in connector for solenoid to DIN 43650-AM2 and
  plug-in connector for position transducer, included in scope of delivery
• Data for the external trigger electronics:
  - UB = 24 Vnom DC
  - Adjustment of valve curve Np and gain
  - With and without ramp generator
  - Europe card format,setpoint 0...+10 V
  (order separately)
