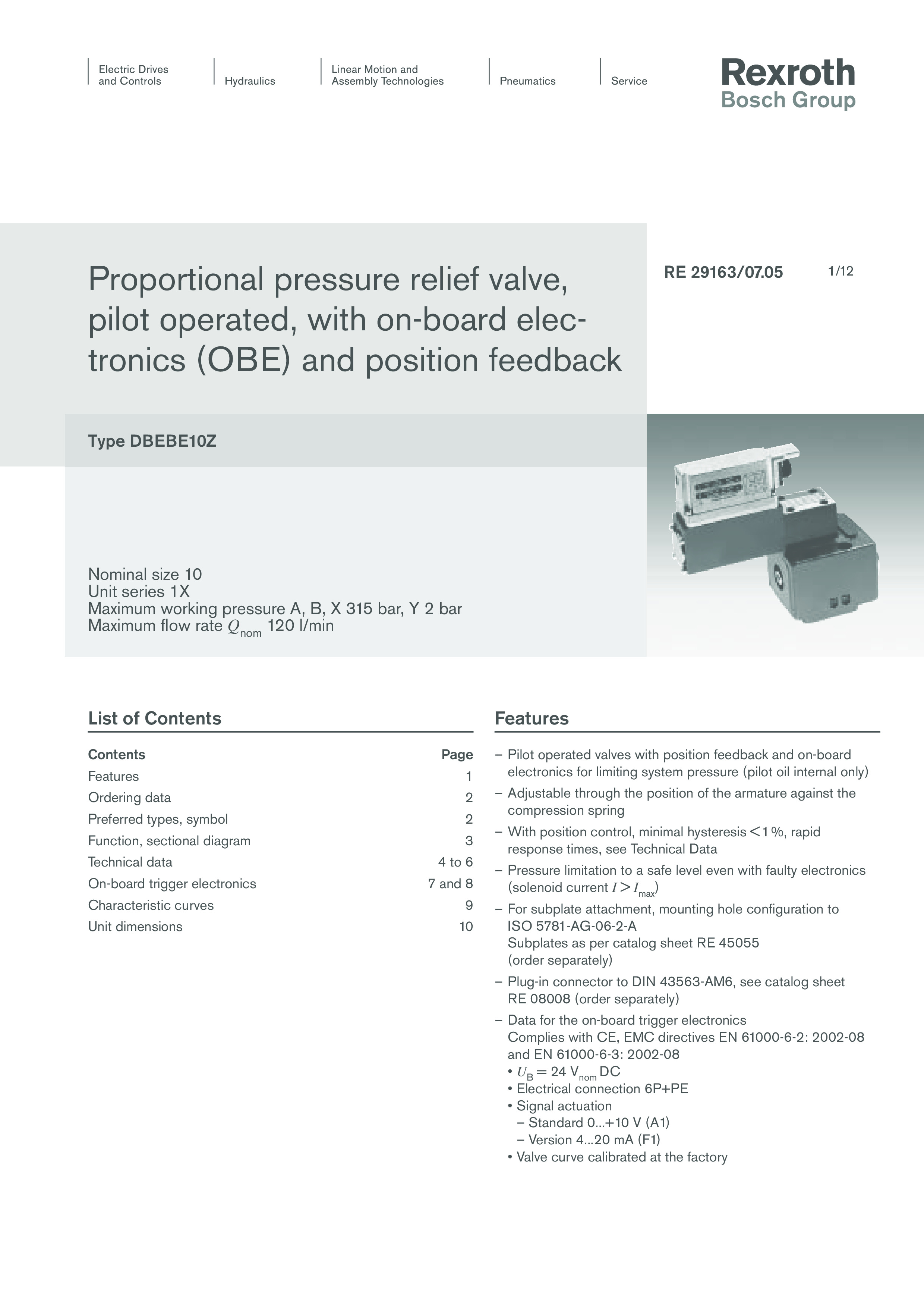

DBEBE10Z Size 10 Series 1x
Pilot operated proportional pressure relief valves with max pressure limitation without/with integrated electronics for subplate mounting (OBE) DBEBE10Z
- Size 10
- Component series 1X
- Max. operating pressure 315 bar
- Flow, max. 120 l/min
Description
Downloads

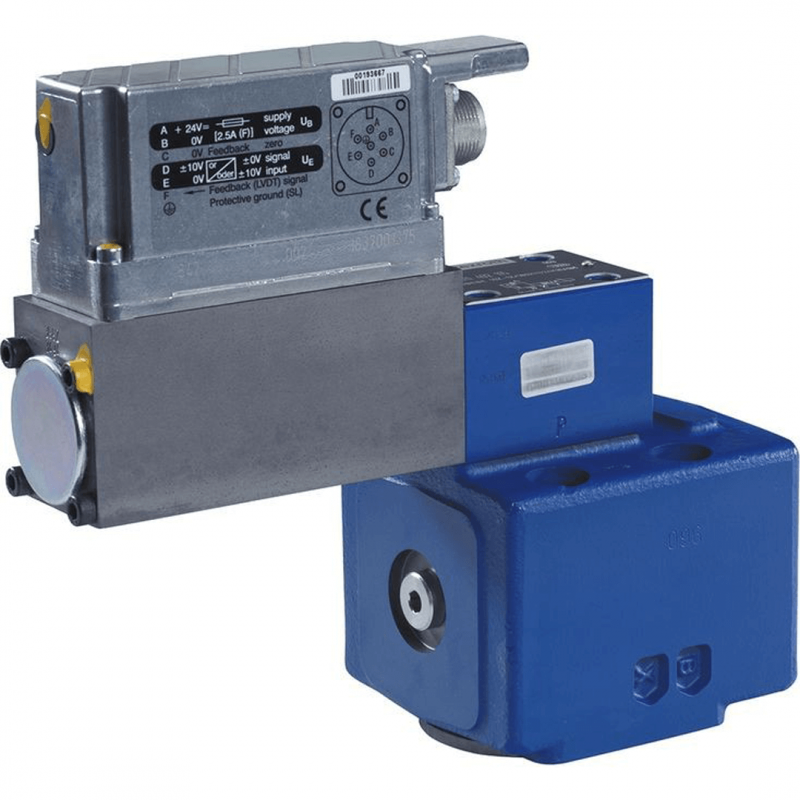

Bosch Rexroth Proportional Pressure Relief Valve, Pilot-operated (OBE) DBEBE10Z
- Size 10
- Component series 1X
- Max. operating pressure 315 bar
- Flow, max. 120 l/min
Features:
- Pilot operated valves with position feedback and on-board electronics for limiting system pressure (pilot oil internal only)
- Adjustable through the position of the armature against the compression spring
- With position control, minimal hysteresis < 1 %, rapid response times, see Technical Data
- Pressure limitation to a safe level even with faulty electronics (solenoid current I > Imax)
- For subplate attachment, mounting hole configuration to ISO 5781-AG-06-2-A
- Subplates as per catalog sheet RE 45055 (order separately)
- Plug-in connector to DIN 43563-AM6, see catalogue sheet RE 08008 (order separately)
