2FRE Size 10 & 16 Series 4x
Proportional flow control valves of the 2FRE type comprise a 2-way function.
- Component series 4X
- Size 10, 16
- Maximum operating pressure 315 bar
- Maximum flow 160 l/min
Description

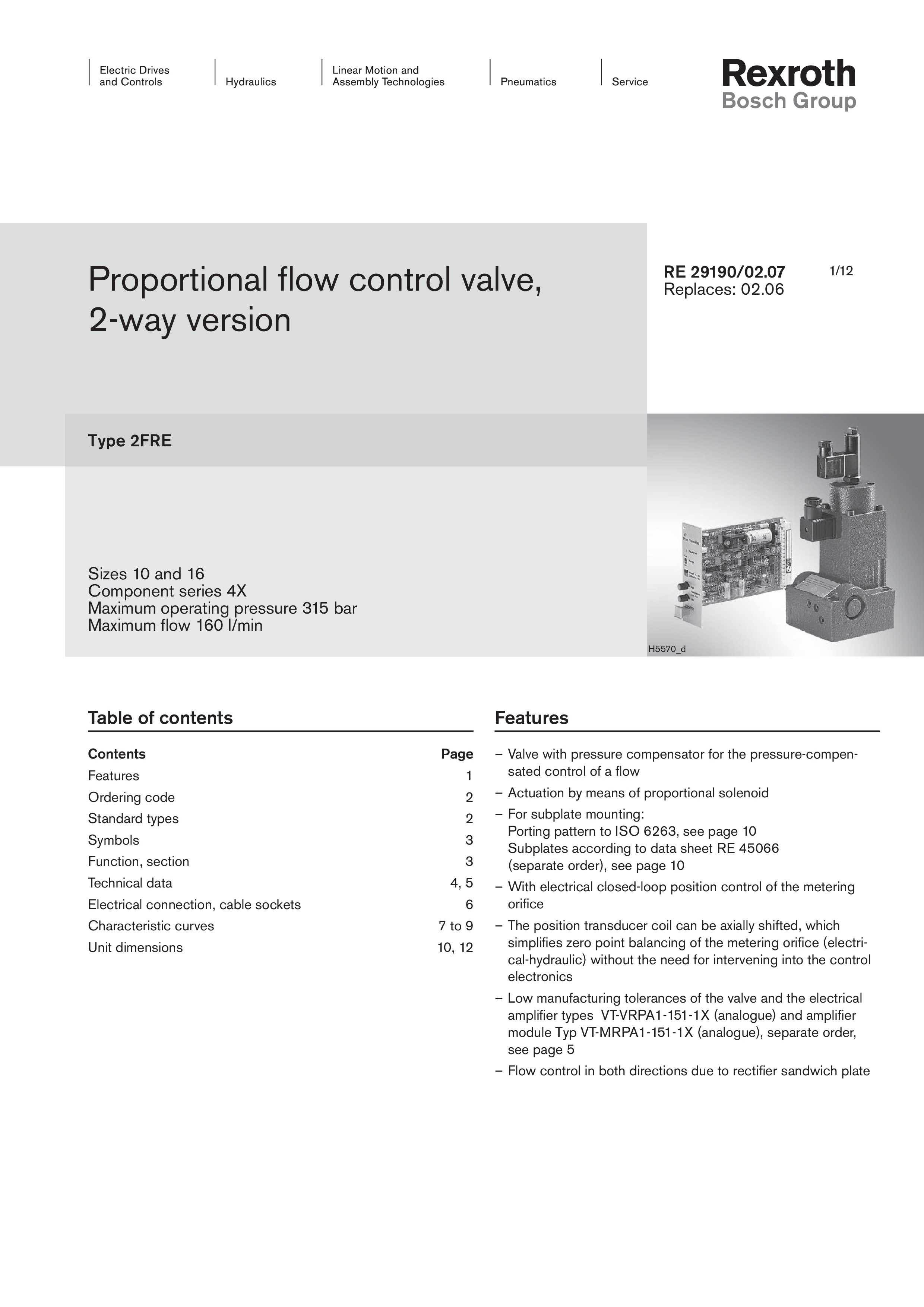

Downloads

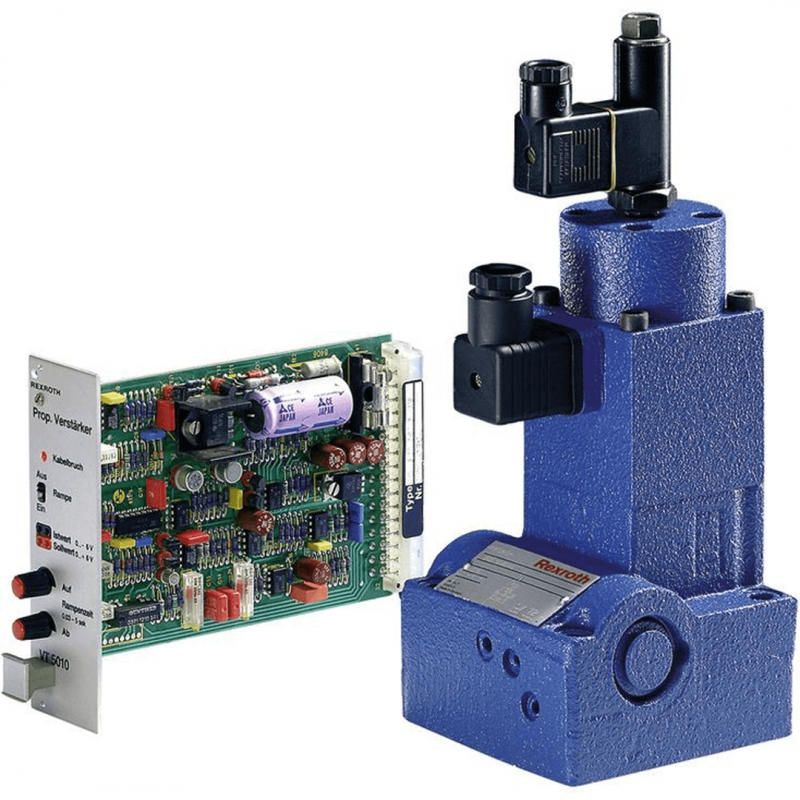

Bosch Rexroth Proportional Flow Control Valves, 2-way Version 2FRE
- Component series 4X
- Size 10, 16
- Maximum operating pressure 315 bar
- Maximum flow 160 l/min
Features:
- Valve with pressure compensator for the pressure compensated control of a flow
- Actuation by means of proportional solenoid
- For subplate mounting:
- Porting pattern to ISO 6263, see page 10
- Subplates according to data sheet RE 45066
- (separate order), see page 10
- With electrical closed-loop position control of the metering orifice
- The position transducer coil can be axially shifted, which simplifies zero point balancing of the metering orifice (electrical hydraulic) without the need for intervening into the control electronics
- Low manufacturing tolerances of the valve and the electrical amplifier types VT-VRPA1-151-1X (analogue) and amplifier module Type VT-MRPA1-151-1X (analogue), separate order, see page 5
- Flow control in both directions due to rectifier sandwich plate
