3FREZ Size 6 & 10 Series 1x

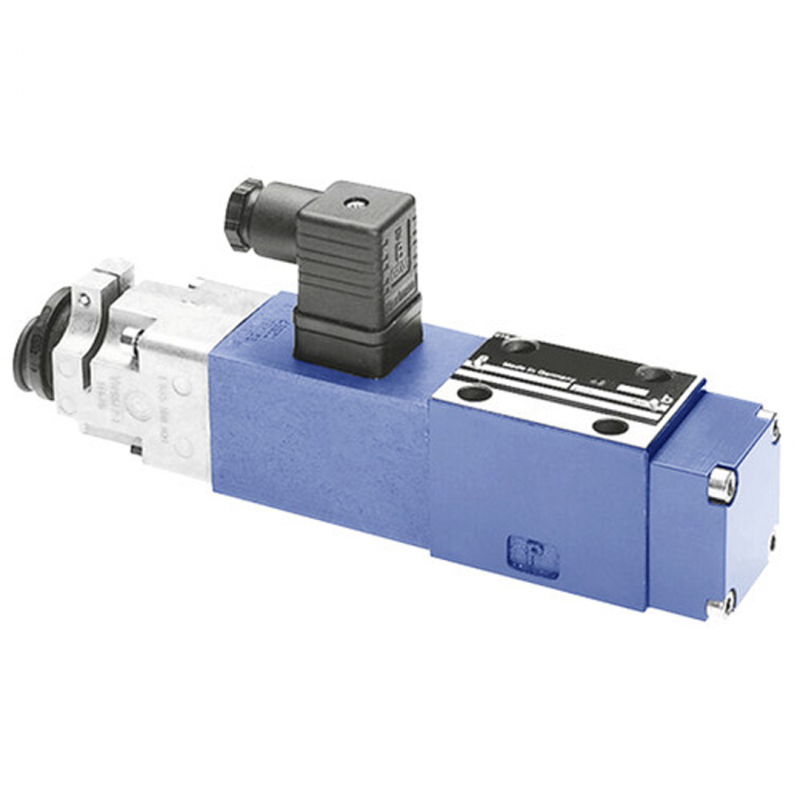

Bosch Rexroth Proportional Flow Control Valves with Inductive Position Transducer 3FREZ

• Component series 1X
• Size 6 and 10
• Maximum operating pressure 250 bar
• Maximum flow 80 l/min

Features:

• Directly controlled flow control valves NG6 and NG10
• The 3-way function is determined by how the hydraulic ports are assigned (residual flow runs through port P, 3rd way).
• Adjustable by means of the controlled solenoid position, the position transducer and the external valve electronics
• Solenoid version Imax = 2.7 A
• For subplate attachment, mounting hole configuration
  - NG6 to ISO 4401-03-02-0-94,
  - NG10 to ISO 4401-05-04-0-94

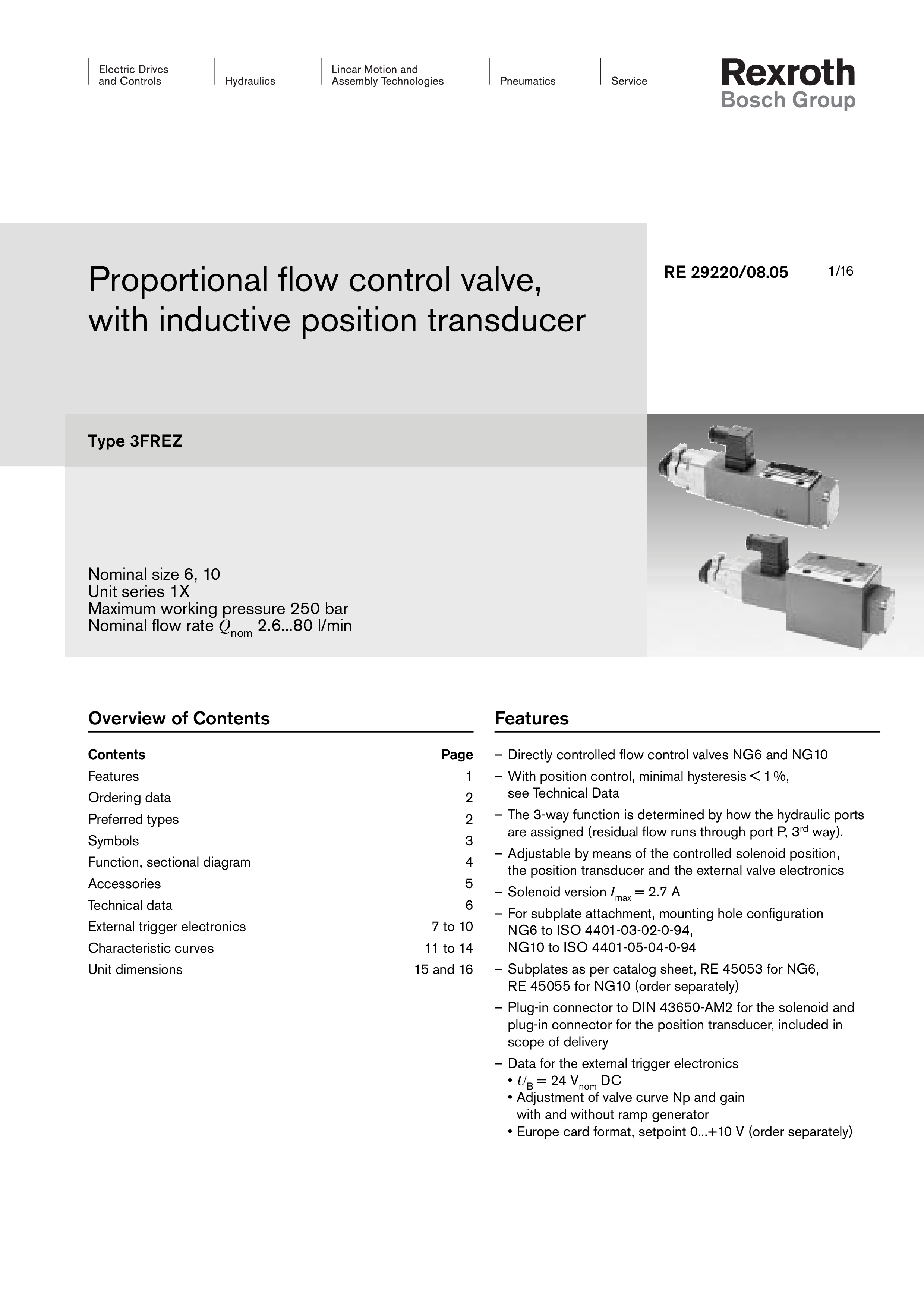

• Subplates as per catalogue sheet, RE 45053 for NG6, RE 45055 for NG10 (order separately)
• Plug-in connector to DIN 43650-AM2 for the solenoid and plug-in connector for the position transducer, included in scope of delivery
