3FREEZ Size 6 & 10 Series 1x

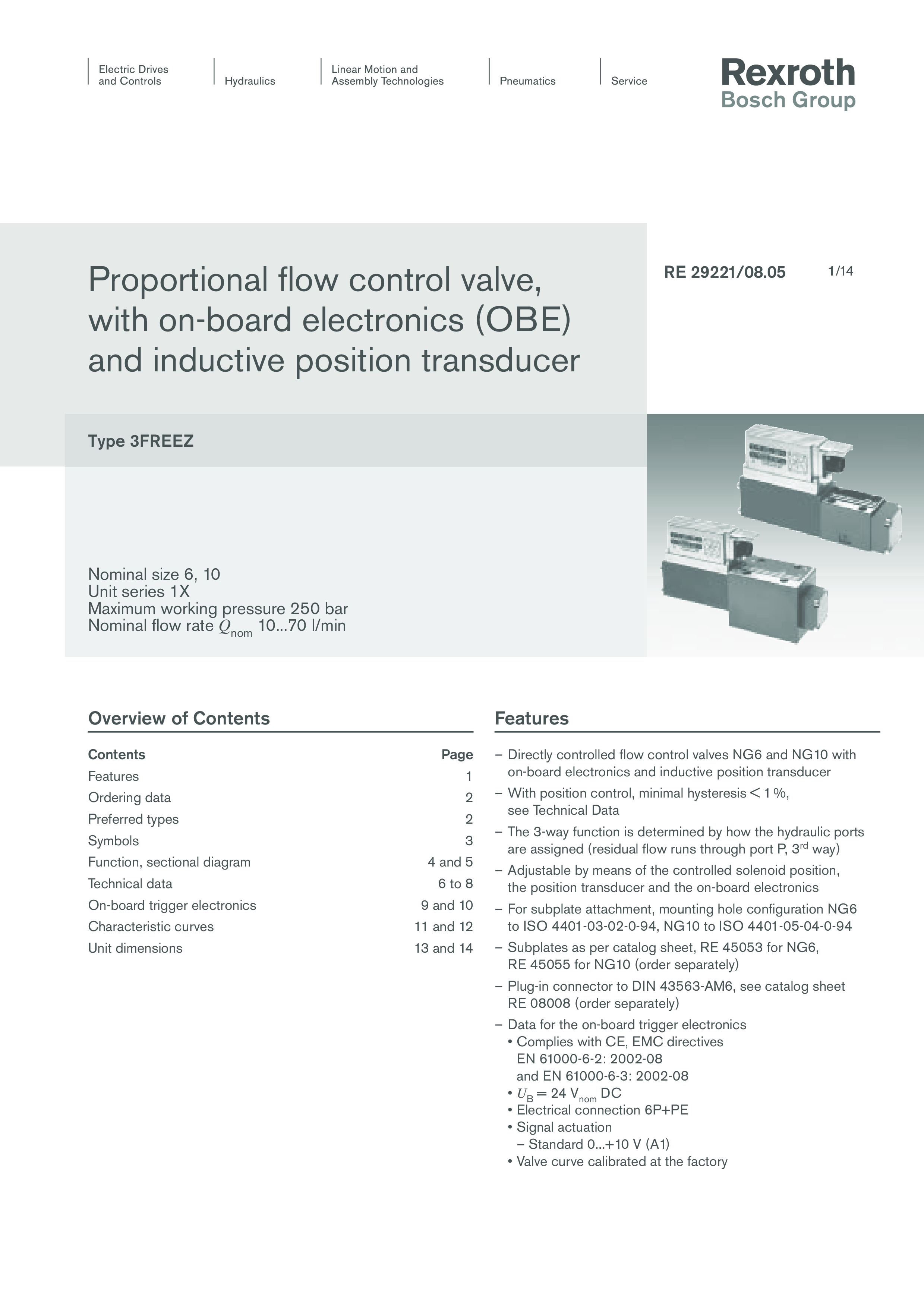

Bosch Rexroth Proportional Flow Control Valves (OBE) 3FREEZ

• Component series 1X
• Size 6, 10
• Maximum operating pressure 250 bar
• Maximum flow 70 l/min

Features:

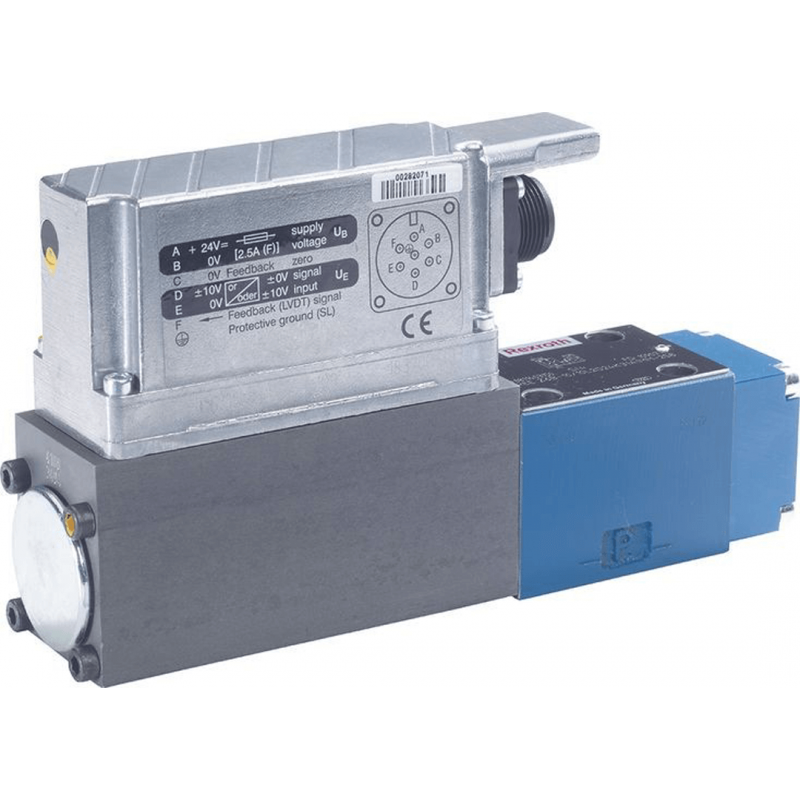

•  Directly controlled flow control valves NG6 and NG10 with on-board electronics and inductive position transducer
•  With position control, minimal hysteresis < 1 %, see Technical Data
•  The 3-way function is determined by how the hydraulic ports are assigned (residual flow runs through port P, 3rd way)
•  Adjustable by means of the controlled solenoid position, the position transducer and the on-board electronics
•  For subplate attachment, mounting hole configuration NG6 to ISO 4401-03-02-0-94, NG10 to ISO 4401-05-04-0-94
•  Subplates as per catalog sheet, RE 45053 for NG6, RE 45055 for NG10 (order separately)
• Plug-in connector to DIN 43563-AM6, see catalog sheet RE 08008 (order separately)
