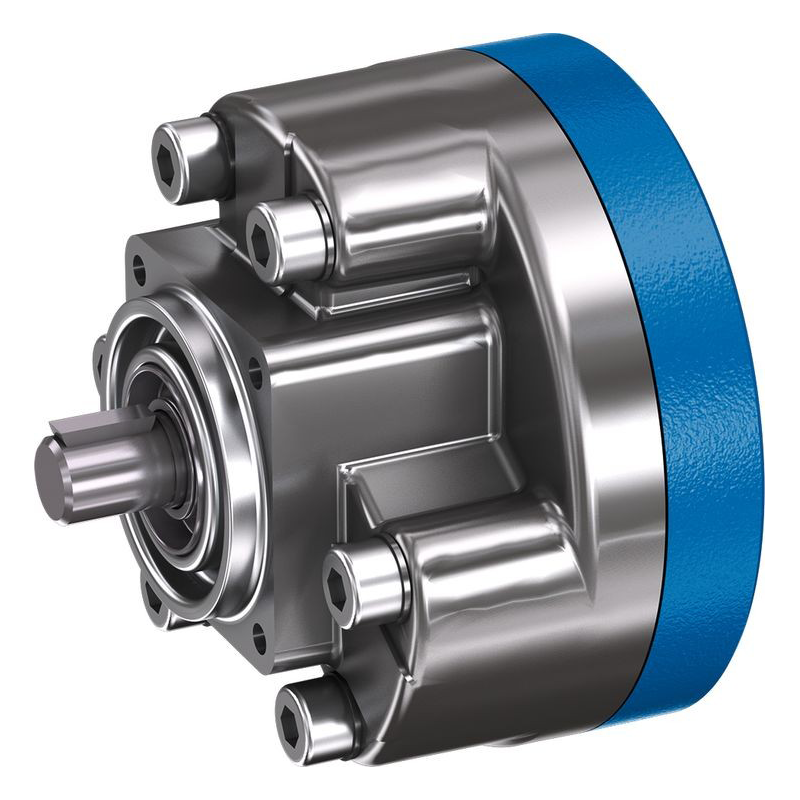

Bosch Rexroth Radial Piston Pumps, Fixed Displacement Type PR4-1X

PR4-1X Series 1x Size 0,4 to 2

Radial piston Pumps, fixed displacement type PR4-1

  • Size 0,40 ... 2,00
  • Component series 1X
  • Maximum operating pressure 700 bar
  • Maximum displacement 2 cm³

Products
Downloads
Description
Part Number Material Number No-Show Price Add to Parts List
PR4-1X/0,40-700WA01M01 PR4-1X/0,40-700WA01M01 R900485830 1 £1,116.73
£1,340.08 Inc. VAT
PR4-1X/0,63-700WA01M01 PR4-1X/0,63-700WA01M01 R900345609 2 £1,116.73
£1,340.08 Inc. VAT
PR4-1X/1,00-450WA01M01 PR4-1X/1,00-450WA01M01 R900490630 3 £1,164.59
£1,397.51 Inc. VAT
PR4-1X/1,60-250WA01M01 PR4-1X/1,60-250WA01M01 R900331074 4 £1,229.75
£1,475.70 Inc. VAT
PR4-1X/2,00-175WA01M01 PR4-1X/2,00-175WA01M01 R900485829 5 £1,249.70
£1,499.64 Inc. VAT

Bosch Rexroth Radial Piston Pumps, Fixed Displacement Type PR4-1X 0,4cc to 2cc

  • Size 0,40 ... 2,00
  • Component series 1X
  • Maximum operating pressure 700 bar
  • Maximum displacement 2 cm³

Features:

  • Fixed displacement
  • Self-priming, valve-controlled
  • Long service life due to hydro-dynamically lubricated plain bearings
  • Very compact design and installation-friendly dimensions
  • Combination possibility with constant and variable vane pump
  • Five sizes

General Function:

The pumps are valve-controlled, self-priming radial piston pumps with fixed displacement. They consist essentially of the housing, eccentric shaft and pump elements, with suction valve, pressure valve and piston.
