Hilma Rapid Clamping System - Automatic Travelling Clamp

Hilma Rapid Clamping System - Automatic Travelling Clamp

Special features:

• High functional safety by position monitoring and automatic travelling sequence
• Suitable for retrofit and installation in original equipment
• Tie rod made from high-strength forge steel no need for die standardisation (width and depth)
• Optimum utilisation of the ram area
• Clamping force of between 78 and 115 kN (other clamping forces on request)
• central operation of all clamping elements
• Additional safety by mechanical self-locking available on request

Applications:

• Automatic clamping of dies on press rams
• For dies varying in width

Function:

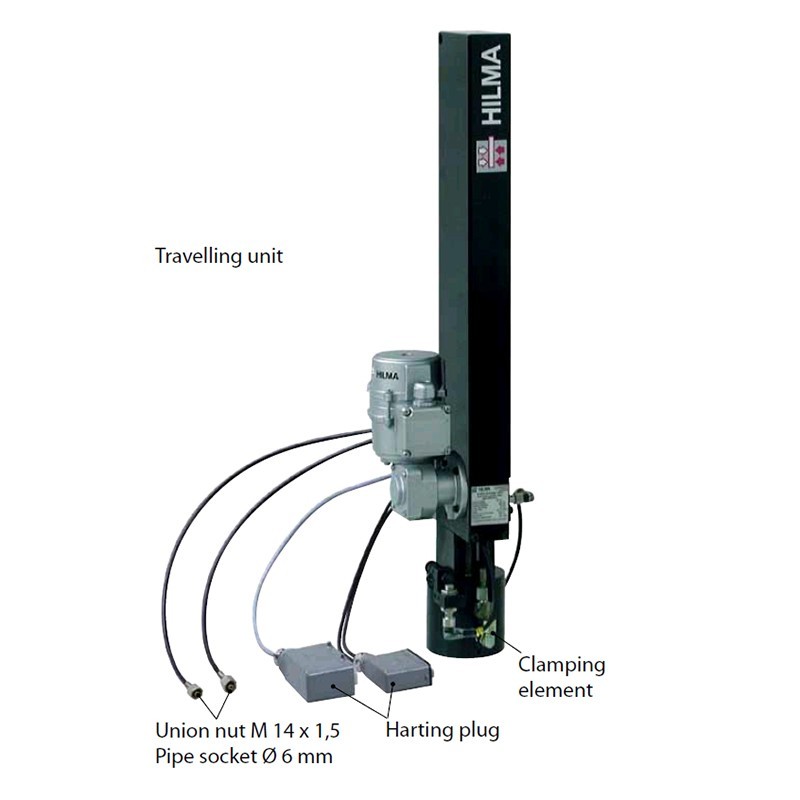

A pusher chain driven with an electric motor moves the rapid clamping system with its attached clamping cylinder automatically to the clamping edge. The T-slot in the machine provides guidance for the chain and the clamping element. Clamping and unclamping of the cylinder is carried out by applying pressure to the cylinder, depending on the design. Following unclamping, the clamping element moves automatically from the clamping position into the parking position.
