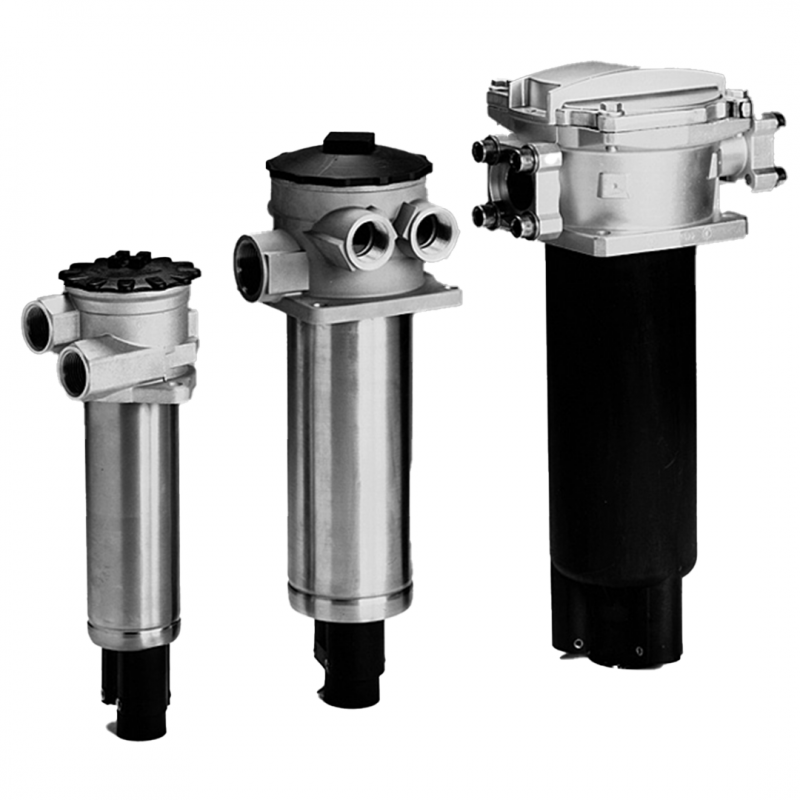

Hydac Return Line Suction Filter RKM

HYDAC Return Line Suction Filter RKM ensures efficient filtration for hydraulic systems, handling flow rates up to 800 l/min and pressure levels up to 10 bar. Featuring a bypass valve, back-pressure valve, and a screw-on cover plate, it provides reliable contaminant control and optimal system performance, even under high-viscosity conditions.

Key Features:

  • Flow rates up to 800 l/min
  • Pressure levels up to 10 bar
  • Temperature range: -30 °C to +100 °C (short-term: -40 °C)

Print page

Description

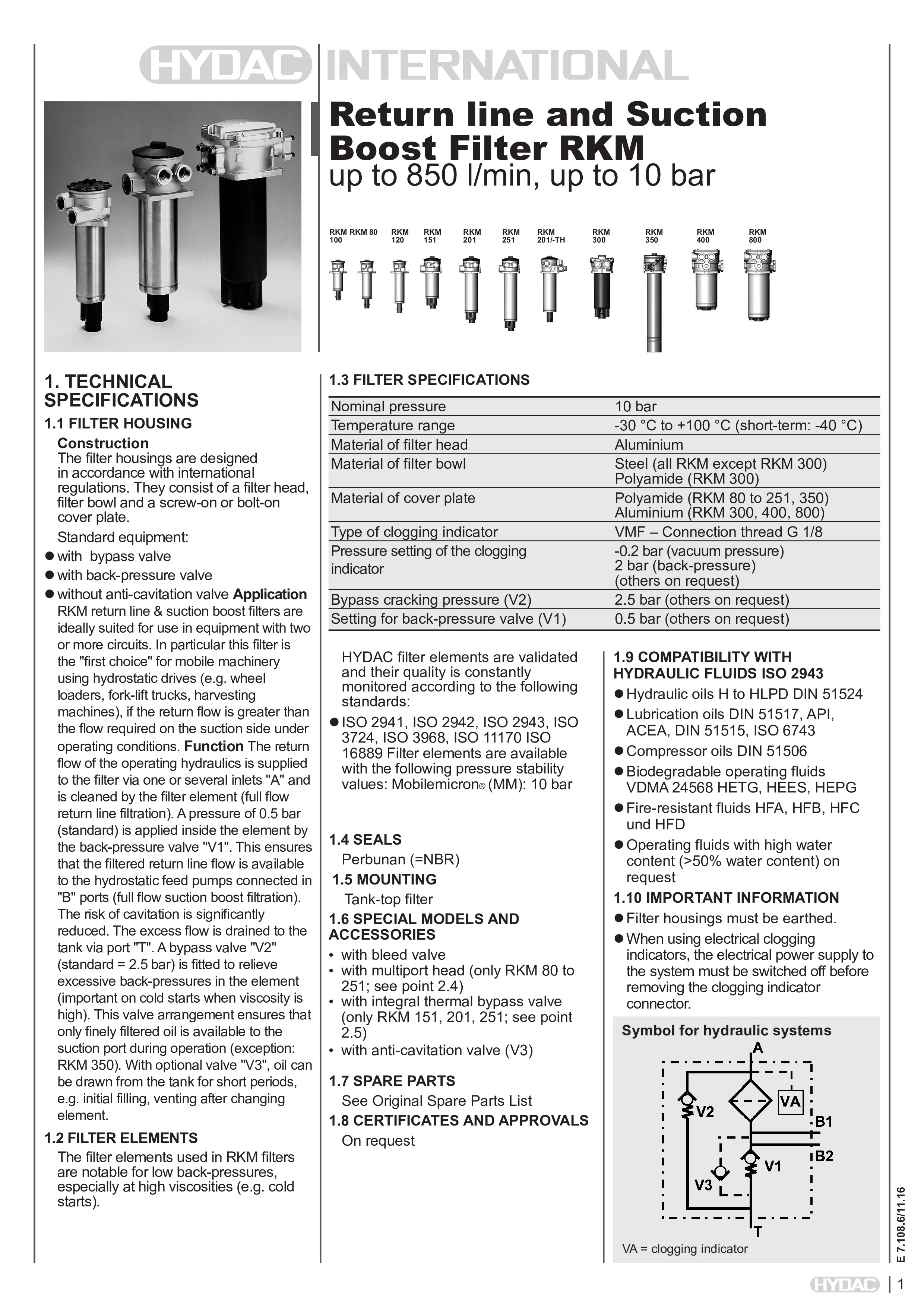

Downloads
Hydac Return Line Suction Filter RKM

HYDAC Return Line Suction Filter RKM

  • Flow rates up to 800 l/min
  • Pressure levels up to 10 bar
  • Temperature range: -30 °C to +100 °C (short-term: -40 °C)
  • Connections: G¾ to SAE DN 50
  • Installation sizes: 80, 100, 120, 151, 201, 251, 300, 350, 400, 800

Features:

  • The filter housings are designed in accordance with international regulations
  • They consist of a filter head, filter bowl and a screw-on cover plate
  • With bypass valve
  • Bypass cracking pressure (V2) 2.5 bar (others on request)
  • With back-pressure valve
  • Without anti-cavitation valve
  • Special models and accessories available on request
  • Compatibility with hydraulic fluids ISO 2943
  • Certificates and approvals available on request
  • Pressure setting of the clogging indicator -0.2 bar (vacuum pressure) 2 bar (back-pressure) (others on request)

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Filter Elements:

The filter elements used in RKM filters are characterised by low backpressures, especially at high viscosities (e.g. cold starts)
