Hydac Return Line Filter with 4-Hole Mounting RFM

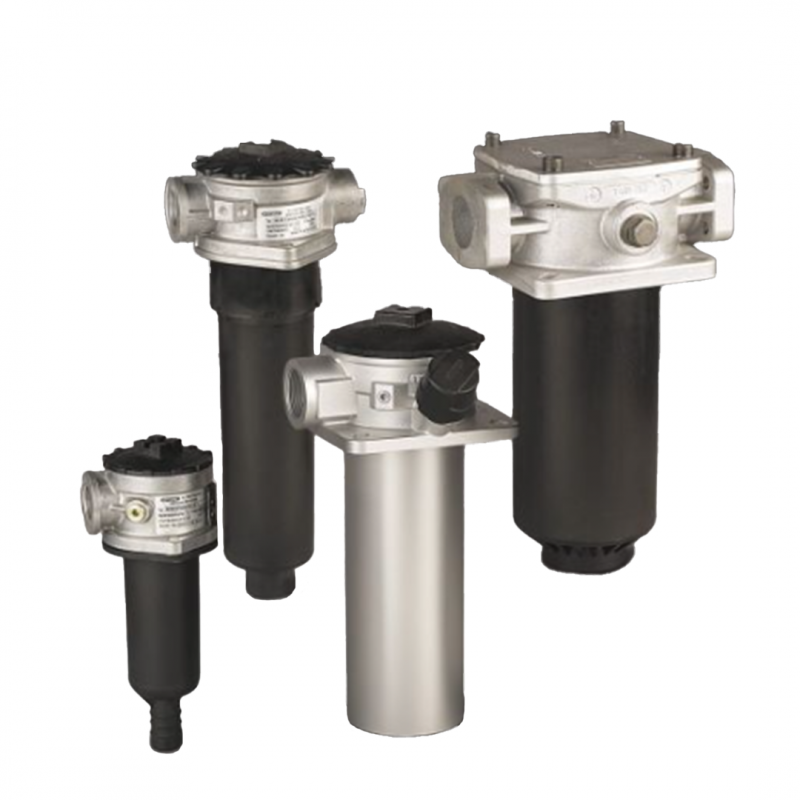

HYDAC RFM Return Line Filters with 4-Hole Mounting are designed for reliable and space-efficient return oil filtration in hydraulic systems, supporting flow rates up to 850 l/min and pressure levels up to 10 bar. Built to international standards, these filters feature robust construction, flexible installation options, and high-efficiency filter elements for optimal contamination control and system protection.

Key Features:

  • Flow rates up to 850 l/min (tank mounted versions)
  • Pressure levels up to 10 bar
  • Connections: G½ to SAE DN 65

Description
Downloads

Hydac Return Line Filters with 4-hole Mounting RFM

  • Flow rates up to 850 l/min (tank mounted versions)
  • Pressure levels up to 10 bar
  • Connections: G½ to SAE DN 65

Features:

  • The filter housings are designed in accordance with international regulations.
  • They consist of a filter head (with 4 hole flange), filter bowl and a screw-on cover plate.
  • Installation sizes: 75, 90, 150, 165, 185, 210, 270, 330, 500, 600, 661, 851
  • Options: 2-hole or 4-hole fastening
  • Special models and accessories available on request
  • Compatibility with hydraulic fluids ISO 2943
  • Certificates and approvals available on request

Filter Specifications:

Nominal pressure 10 bar
Temperature range -30°C to +100°C (short-term: -40°C)
Material of filter head Aluminium: all RFM
Material of filter bowl Polymide: all RFM except 210,270
Steel: RFM 210, 270, 600
Material of cover plate polymide: all RFM 75 to 270
Aluminium: RFM 330 to 851
Type of clogging indicator VR   Connection thread G 1/2
VMF Connection thread G 1/8 (return line indication)
Pressure setting of clogging indicator 2 bar (others on request)
Bypass cracking pressure 3 bar (others on request)


Filter elements are available with the following pressure stability values:

  • Betamicron® (BN4HC): 20 bar
  • ECOmicron® (ECON2): 10 bar
  • Paper (P/HC): 10 bar
  • Stainl steel Wire mesh (W/HC): 20 bar
  • Betamicron®/Aquamicron® (BN4AM): 10 bar
  • Aquamicron® (AM): 10 bar
  • Mobilemicron® (MM): 10 bar

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

General Fuction:

This type of filter can be installed as a tank mounted filter (on top of the hydraulic tank). Prevents dangerous malfunctions in hydraulic components as a result of excessive back pressure in the return line, return line filters are usually fitted with a bypass valve.
Return line filters can be fitted with breather filters as additional equipment.
