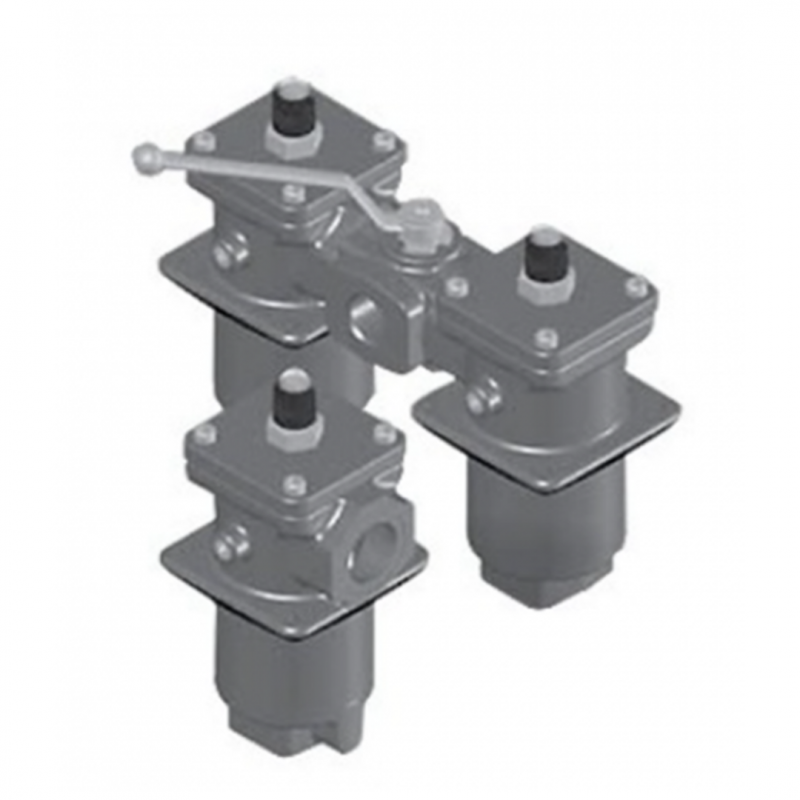

Hydac Stainless Steel Reversible/ Return Line Filter SSRF/ SSRFD

HYDAC SSRF/SSRFD Stainless Steel Return Line Filters are built for high-durability return or change-over filtration in hydraulic systems operating up to 25 bar and 150 l/min. Ideal for continuous-duty applications, these filters feature corrosion-resistant stainless steel construction and are suitable for tank-mounted installations.

Key Features:

  • Flow rates up to 150 l/min
  • Pressure levels up to 25 bar
  • Connections: G1 to SAE DN 25
  • Installation sizes: 160

Description

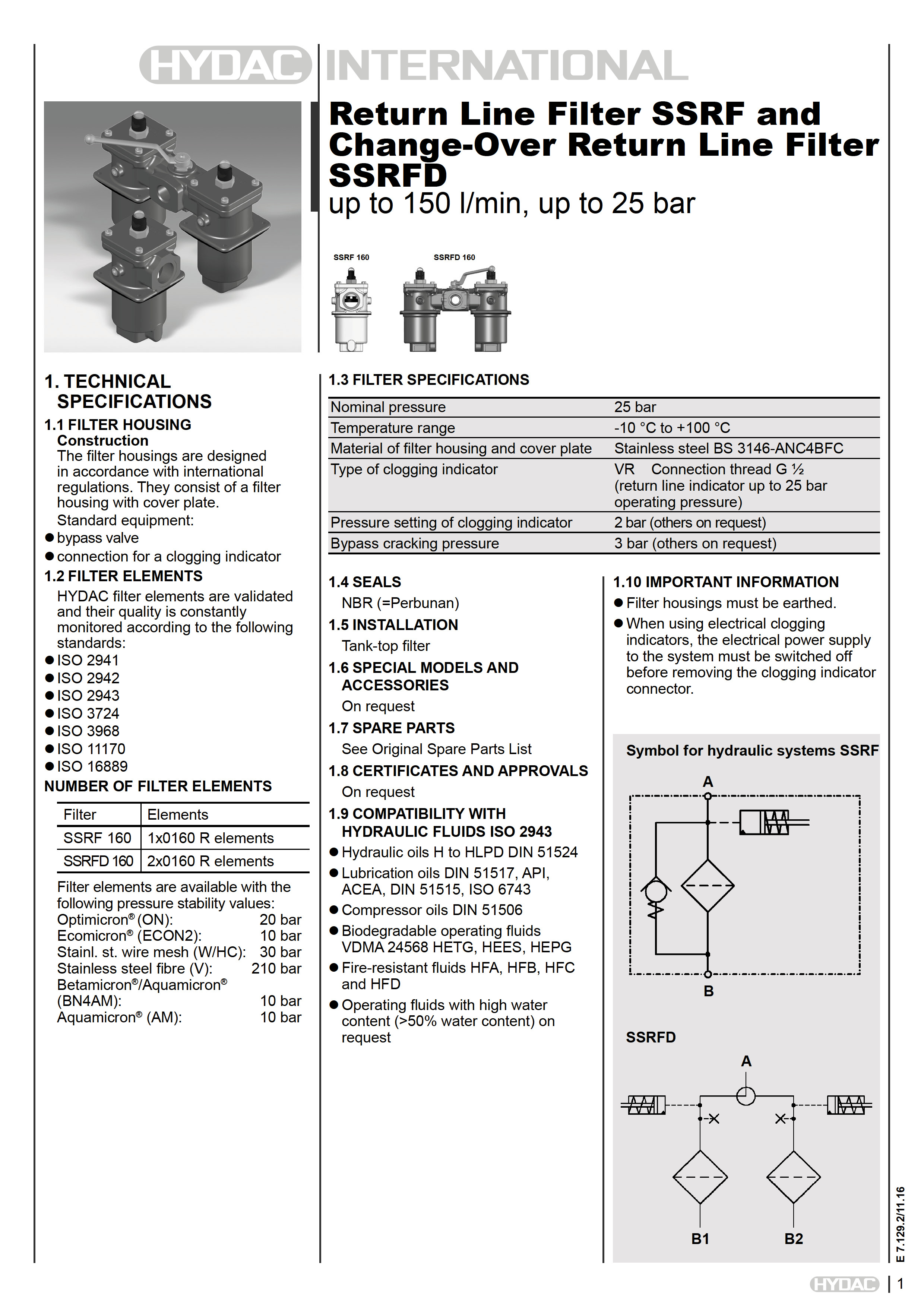

Downloads

HYDAC Stainless Steel Reversible/ Return Line Filter SSRF/ SSRFD

  • Flow rates up to 150 l/min
  • Pressure levels up to 25 bar
  • Connections: G1 to SAE DN 25
  • Installation sizes: 160

Features:

  • With bypass valve as standard
  • Bypass cracking pressure 3 bar (others on request)
  • Connection for a clogging indicator
  • Type of clogging indicator VR Connection thread G ½ (return line indicator up to 25 bar operating pressure)
  • Pressure setting of the clogging indicator 2 bar (others on request)
  • Special models and accessories available on request
  • Compatibility with hydraulic fluids ISO 2943
  • Certificates and approvals available on request

General Function:

This type of filter can be installed as a tank mounted filter (on top of the hydraulic tank). Prevents dangerous malfunctions in hydraulic components as a result of excessive back pressure in the return line, return line filters are usually fitted with a bypass valve and a connection for a clogging indicator. Single filter or change over filter available for systems which are operated around the clock. The filter housing must be a change over type so that the system does not need to be shut down for filter maintenance.

Filter Specifications:

Nominal pressure 25 bar
Temperature range -10°C to +100°C (short-term: -40°C)
Material of filter housing and cover plate  Stainless steel BS 3146-ANC4BFC
Type of clogging indicator VR connection thread G 1/2 (return line indicator up to 25 bar operating pressure)
Pressure setting of clogging indicator 2 bar (others on request)
Bypass cracking pressure 3 bar (others on request)

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Filter elements are available with the following pressure stability values:

  • Betamicron® (BN4HC): 20 bar
  • ECOmicron® (ECON2): 10 bar
  • Wire mesh (W/HC): 30 bar
  • Stainless steel fibre (V): 210 bar
  • Betamicron®/Aquamicron® (BN4AM): 10 bar
  • Aquamicron® (AM): 10 bar
