Roemheld Linear Actuators RA 60 Mobile L4.202

Linear Actuators RA 60 K - ROEMHELD L4.202

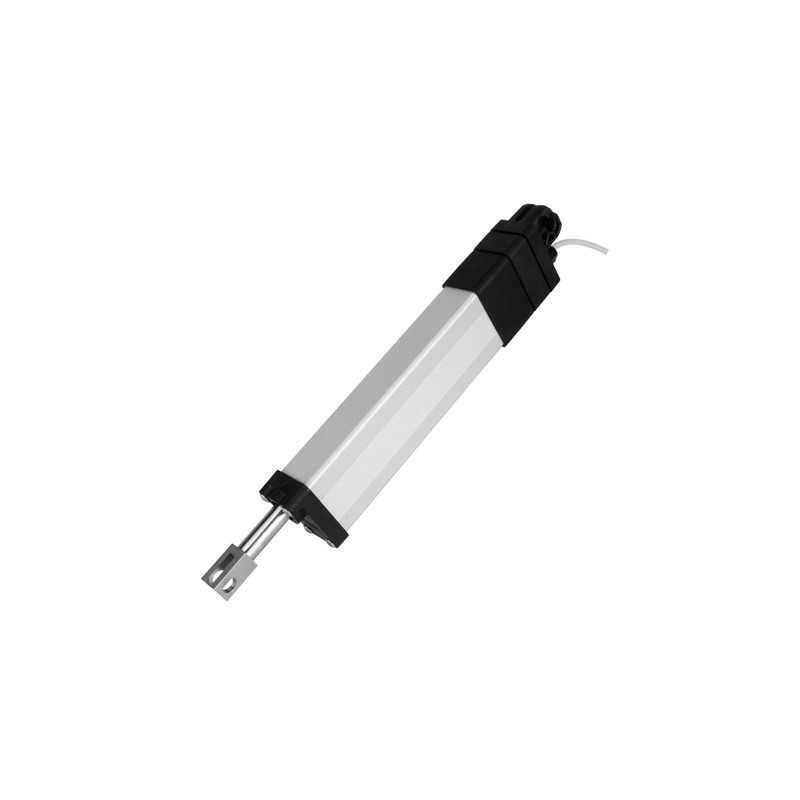

ROEMHELD L4.202 Linear actuators RA 60 K mobile version with limit switch or stroke measuring system

  • Max. push force: 300 to 600 N
  • Max. pull force: 100 % of the push force
  • Stroke: 100 to 200 mm
  • Max. duty cycle: 15 %
  • Code class: IP69K
Print page

Description
Downloads
L4201 en 1016
L4201_en_0511

Linear Actuators RA 60 K - ROEMHELD L4.202

  • Max. push force: 300 to 600 N
  • Max. pull force: 100 % of the push force
  • Stroke: 100 to 200 mm
  • Max. duty cycle: 15 %
  • Code class: IP69K

Application:

Linear actuators RA 60 K are used for electrically-operated proportioning tasks or as actuating element in applications with controloriented demands in short-time service. The range of application is versatile, the version for mobile applications was developed especially for the rough outdoor use and under corrosive environment influences.

Principal use:

  • Agricultural and forest technology
  • Mobile automotive engineering
  • Conveyor and dosing technology
  • Municipal technology

Advantages:

  • Compact design
  • Outstanding durability
  • Variable mounting position
  • Maintenance free
  • Code class IP69K (Cleaning with high-pressure cleaner possible)
  • Solid pushing rod guide
  • High positioning accuracy by directly coupled stroke measuring system

Description:

Linear actuators RA 60 K consist of a 12 VDC direct current drive, whose drive energy is transferred over a planetary gear and a spindle stroke actuator to the pushing rod. The generated lifting force is available as push and pull force. The sturdy design with code class IP 69 k guarantees a trouble-free function also in rough operating conditions. Linear actuators RA 60 K are maintenance free and can be operated with a duty cycle of up to 15 %.

The version with limit switches is equipped with 2 sensors, that prevent an unintentional movement to the mechanical stroke ends and thus the overload of the mechanics. The end positions of the RA 60 K with stroke measuring system are definable by the signal of the stroke measuring system.
