Magnetic Clamping Systems M-TECS 120

Magnetic Clamping Systems M-TECS 120

• Max. temperature: 120°C (on request up to 240)
• Specific magnetic force*: 18 kg/cm²
• Effective magnetic force: 5 – 12 kg/cm²
• Magnetic penetration depth: 20 mm
• Plate thickness: 47 mm

* Force directly on the magnet

Advantages:

• Standardisation of moulds/dies no longer required
• High safety by process monitoring
• Clamping of the moulds/dies within a few seconds
• Ergonomic handling with ease
• Mould/die clamping also in heated condition
• No further mounting holes required
• Minimum wear of the moulds/dies
• Motion detection of the mould/die
• Mould/die clamping on the complete surface with minimum deformation

Application:

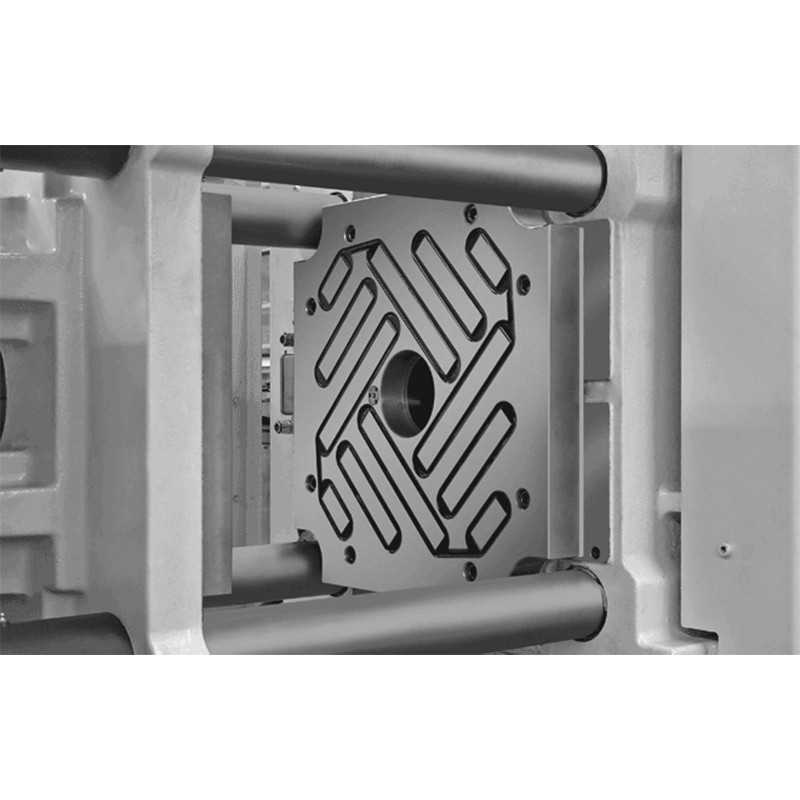

M-TECS 120 magnetic clamping systems are primarily used for automatic clamping of different moulds on injection moulding machines.

Description:

With M-TECS 120 magnetic clamping systems, the moulds/dies are magnetically clamped or unclamped at the touch of a button within a few seconds Since the force of the magnetic clamping plates is generated by permanent magnets, electric clamping is only required to magnetise the plates.
The magnetic clamping plates are de-energised in clamped condition and thus absolutely safe in the case of power failure. In addition, the complete clamping cycle is monitored by different sensors and thus a reliable mould/die clamping is guaranteed. M-TECS 120 magnetic clamping systems have the CE mark and comply with the provisions of the applicable machine guidelines 73/23 EEC and EMC 89/336.
