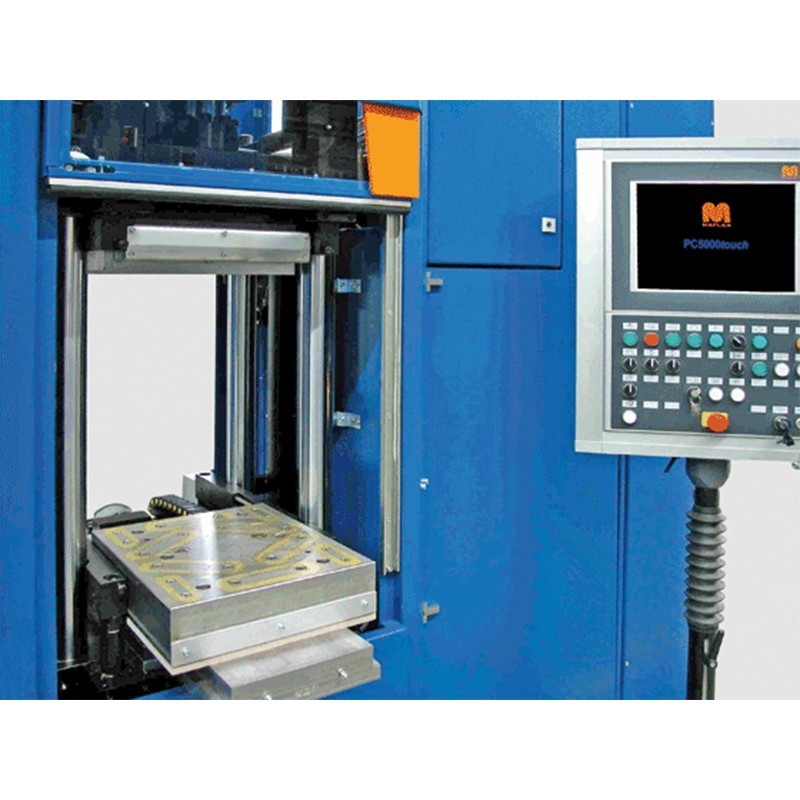

Magnetic Clamping Systems M-TECS 240-G

Magnetic Clamping Systems M-TECS 240-G for Rubber and Duroplastics

• Max. working temperature: 240°C
• Specific magnetic force: 18 kg/cm² (directly at the pole)
• Effective magnetic force: max 5-12 kg/cm²
• Magnetic penetration depth: 15-20mm
• Plate thickness: 55mm, without heating
• Plate thickness: 75mm, with heating
• Mounting: as per customer's request
• Interface: customer-specific or as per Euromap 70.0 / 70.1

Applications include:

• Processing of rubber and duroplastics
• Production of O-rings and rubber parts
• Manufacture of fibre-reinforced components (SMC, GMT)

While features of the M-TECS 240-G are its long pole design with double-magnet technique, resists temperatures up to 240°C. Available in two designs, stadard version for presses and power version for injection moulding presses.

HILMA M-TECS 240 opens up brand new paths for the rubber and the duroplastics processing industries. With no downtime or waiting time to cool down or heat up tools, retooling times can sometimes be cut by hours. Using the advanced magnetic clamping technique, moulds can be changed even when they are hot as the operator will not make contact with them at all. This is both convenient and safe.

The magnetic plates have a complete metal surface. With no T-slot between the heating and the tool, temperatures inside the tool are quite homogeneous, which gives an enhanced production quality. A real highlight is the magnetic clamping plate M-TECS 240 with an integral heating plate. In short, M-TECS 240 is available in various designs, with or without heating, for presses, injection moulding machines or for vacuum techniques.
