HSE Size 4 to 32

Bosch Rexroth Adapter Plates HSE

• Size 4...32
• Component series 3X
• Maximum operating pressure 315/630 bar

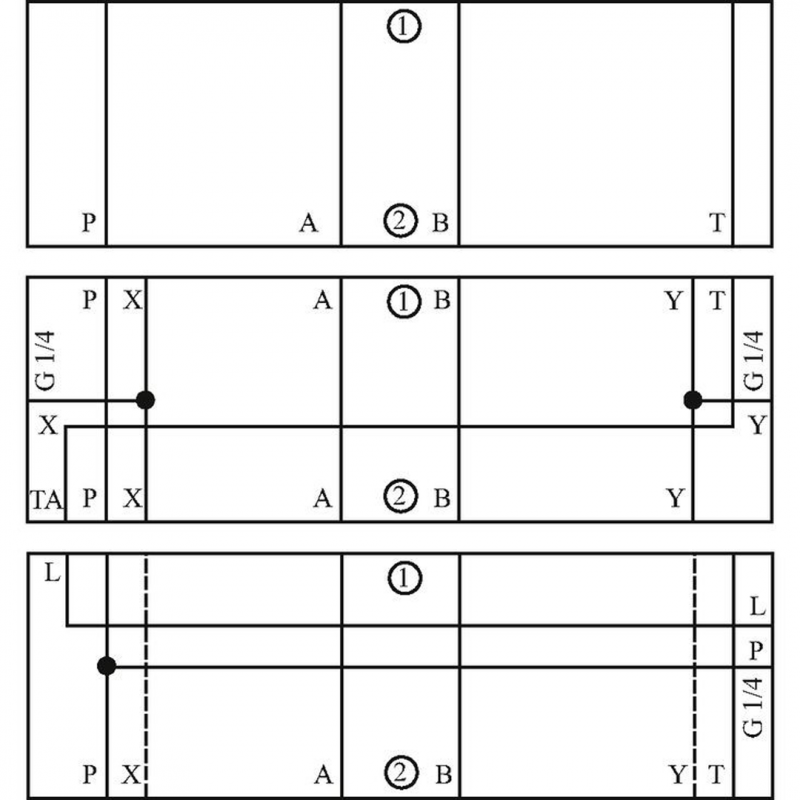

• Porting pattern according to DIN 24340 form A
• Porting pattern according to ISO 4401

Features:

• Sandwich plate design
• Change of function via adaption onto another component is possible
• Makes possible the replacement of phased-out components with replacement units
• Performance matching by changing the nominal size
• Maximum operating pressure: 315 bar

Exception:

• Porting pattern types 04R, 06C, 08A and 10C: 630 bar
