HM20-2X
Pressure transducers for hydraulic applications HM20-2X
- Component series 2X
- Maximum operating pressure 630 bar
Products
Downloads
Description
| Part Number | Material Number | Pressure Rating (bar) | Price | Add to Parts List |
|---|---|---|---|---|
| HM 20-2X/50-C-K35 | R901342022 | 50 bar | £272.13 £326.56 Inc. VAT |
|
| HM 20-2X/100-C-K35 | R901342024 | 100 bar | £272.13 £326.56 Inc. VAT |
|
| HM 20-2X/250-C-K35 | R901342026 | 250 bar | £272.13 £326.56 Inc. VAT |
|
| HM 20-2X/315-C-K35 | R901342029 | 315 bar | £272.13 £326.56 Inc. VAT |
|
| HM 20-2X/400-C-K35 | R901342033 | 400 bar | £272.13 £326.56 Inc. VAT |
|
| HM 20-2X/10-C-K35 | R901364927 | 10 bar | £272.13 £326.56 Inc. VAT |
|

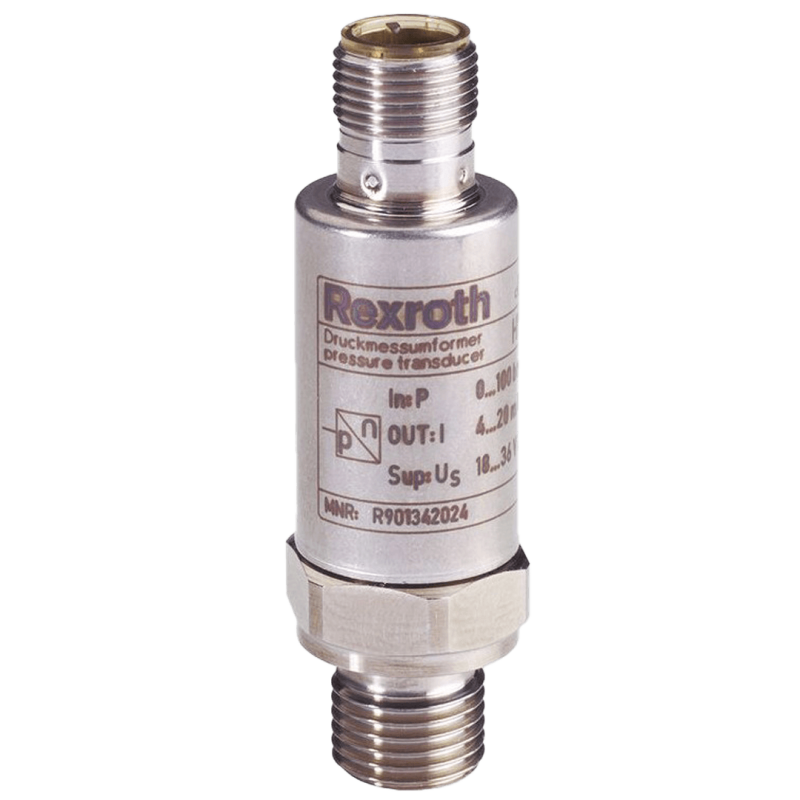

Bosch Rexroth Pressure Transducers for Hydraulic Applications HM20-2X
- Component series 2X
- Maximum operating pressure 630 bar
Features:
- Measuring pressures in hydraulic systems
- 8 measurement ranges up to 630 bar
- Sensor with thin film measuring cell
- Components that are in contact with the media are made of stainless steel
- Operational safety due to high bursting pressure, reversed polarity, overvoltage and short-circuit protection
- Characteristic curve deviation <0.5%
- Non-repeatability <±0.05%
- Ambient temperature range –40 … +85 °C
- Marine approval DNV for all variants with current output
