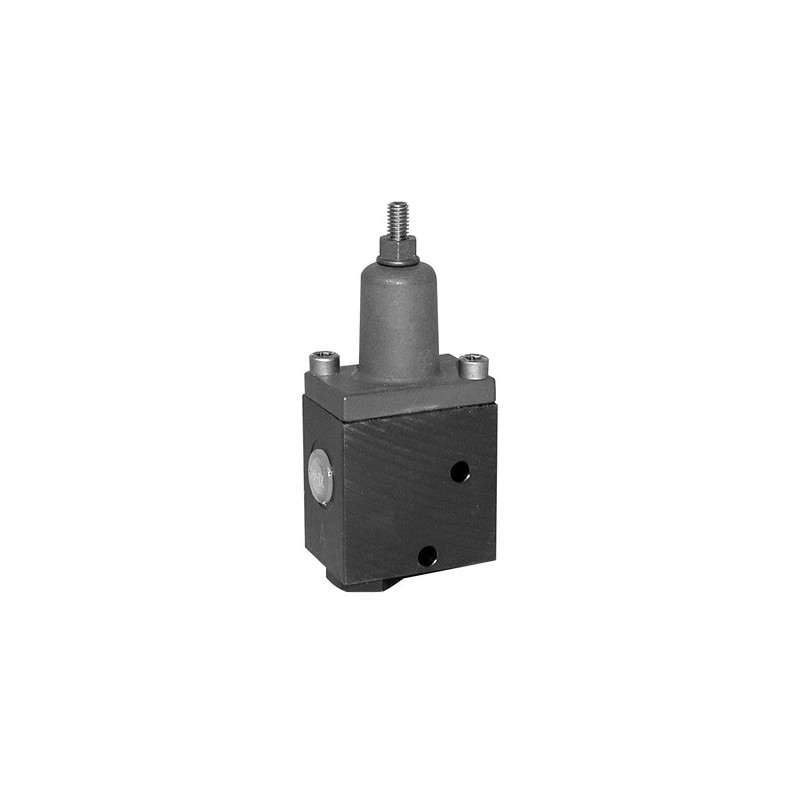

Roemheld Sequence Valve ND 4 C2.954

Sequence Valves ND 4 with Check Valve

ROEMHELD C 2.954 Sequence Valve ND 4 with Check Valve

  • Port size: G 1/4
  • Adjustment ranges: 10 - 75 / 10 - 150 / 100 - 450 bar
  • Max. flow rate: 8 l/min
  • with Check Valve
  • Max. operating pressure 500 bar
Print page

Description
Downloads
C2954_en_0316

Sequence Valves ND 4 with Check Valve - ROEMHELD C 2.954

  • Port size: G 1/4
  • Adjustment ranges: 10 - 75 / 10 - 150 / 100 - 450 bar
  • Max. flow rate: 8 l/min
  • with Check Valve
  • Max. operating pressure 500 bar

Sequence valves are used in power workholding circuits for pressure dependent sequence control. The compact size allows mounting directly to the clamping fixture, requiring only one pressure line from the power unit to the fixture for single-acting cylinders.
