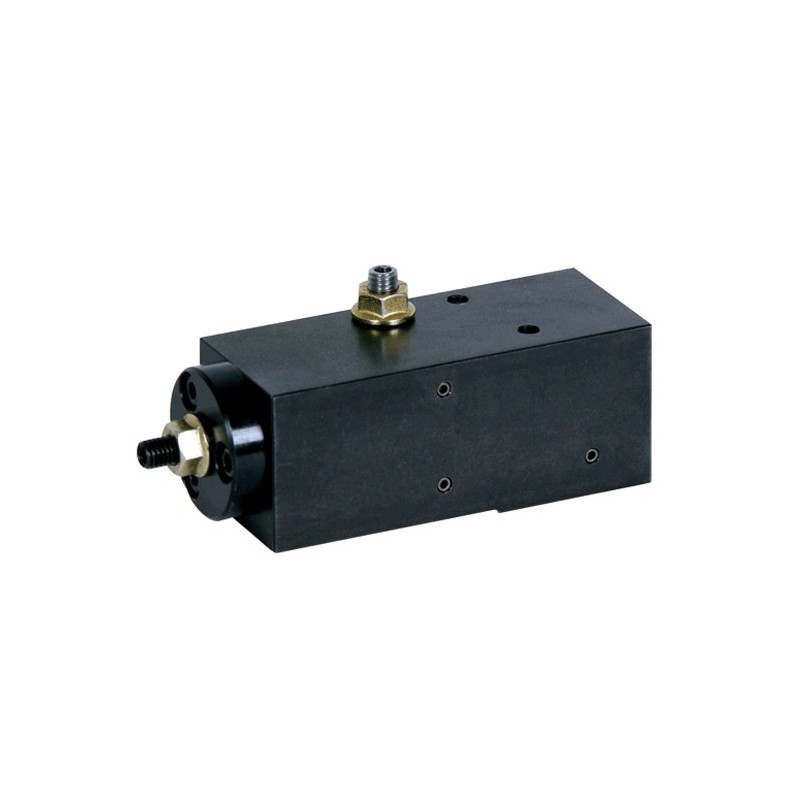

Sequence Valve ND 5
ROEMHELD C 2.9545 Sequence Valve ND 5 with time-dependent swtiching sequence.
- Max. operating pressure 250 bar
- Port size: ND5
- Adjustment range: 1 - 10 s
- Max. flow rate: 8 l/min
- with time-dependent switching sequence
- Min. operating pressure: 30 bar
- Max. operating pressure 250 bar
Description
Downloads

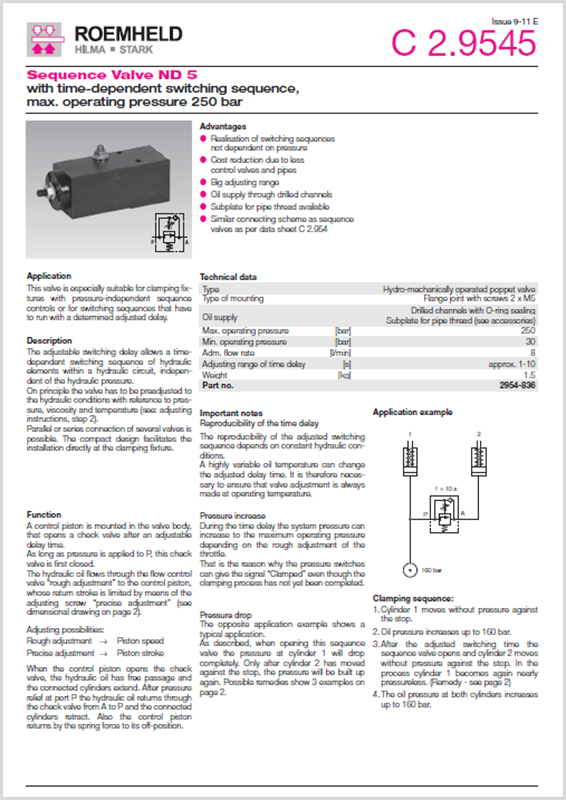

Sequence Valve ND 5 - ROEMHELD C 2.9545
- Max. operating pressure 250 bar
- Port size: ND5
- Adjustment range: 1 - 10 s
- Max. flow rate: 8 l/min
- with time-dependent switching sequence
- Min. operating pressure: 30 bar
- Max. operating pressure 250 bar
Advantages:
- Realisation of switching sequences not dependent on pressure
- Cost reduction due to less control valves and pipes
- Big adjusting range
- Oil supply through drilled channels
- Subplate for pipe thread available
- Similar connecting scheme as sequence valves as per data sheet C 2.954
Application:
This valve is especially suitable for clamping fixtures with pressure-independent sequence controls or for switching sequences that have to run with a determined adjusted delay.
