Z4W(E)H16 Series 5x
Isolator valves in sandwich plate design Z4W(E)H16 4/2 and 4/3 directional isolator valves
- Size 16
- Component series 5X
- Maximum operating pressure 315 bar
- Maximum flow 300 l/min
Description

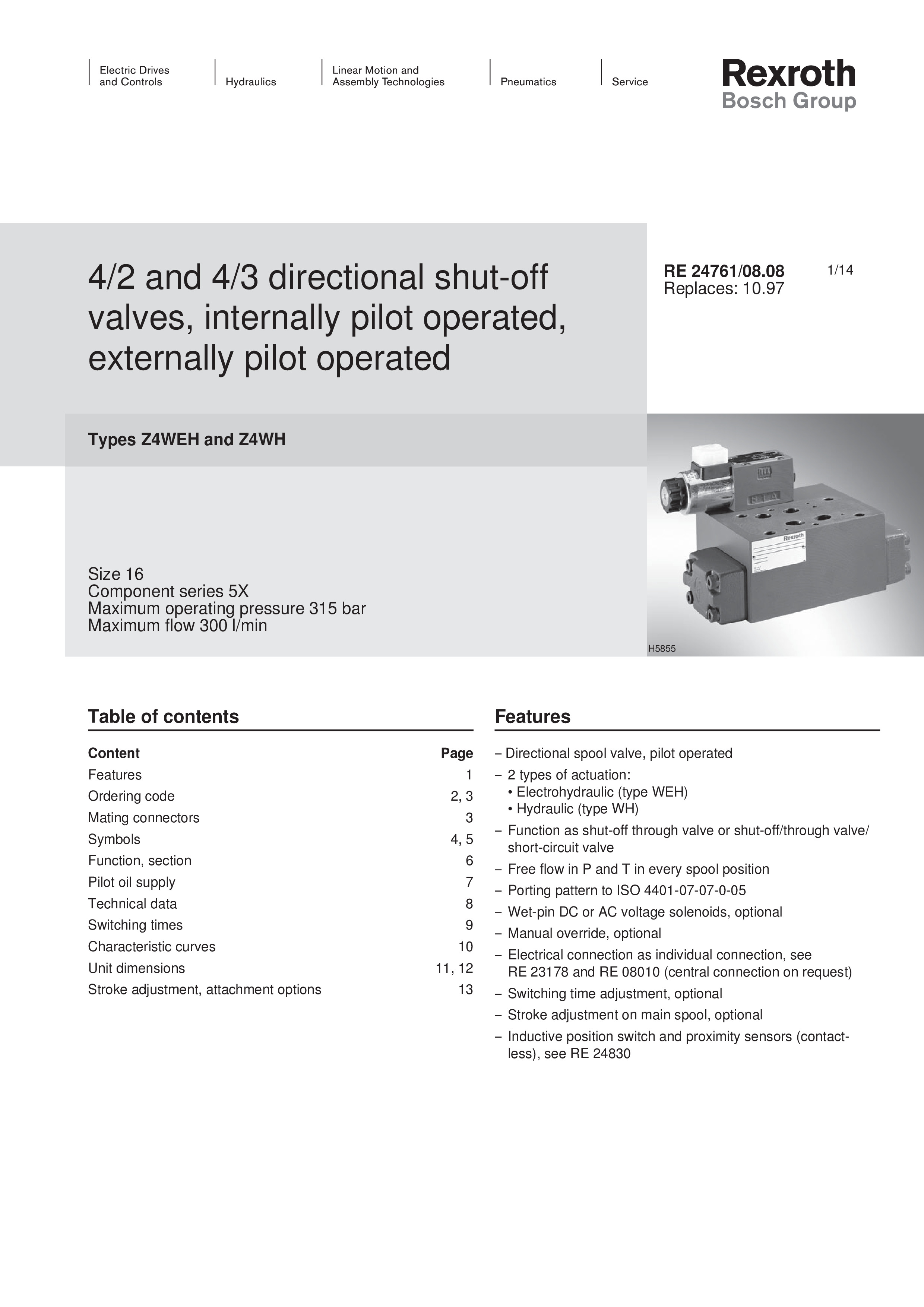

Downloads

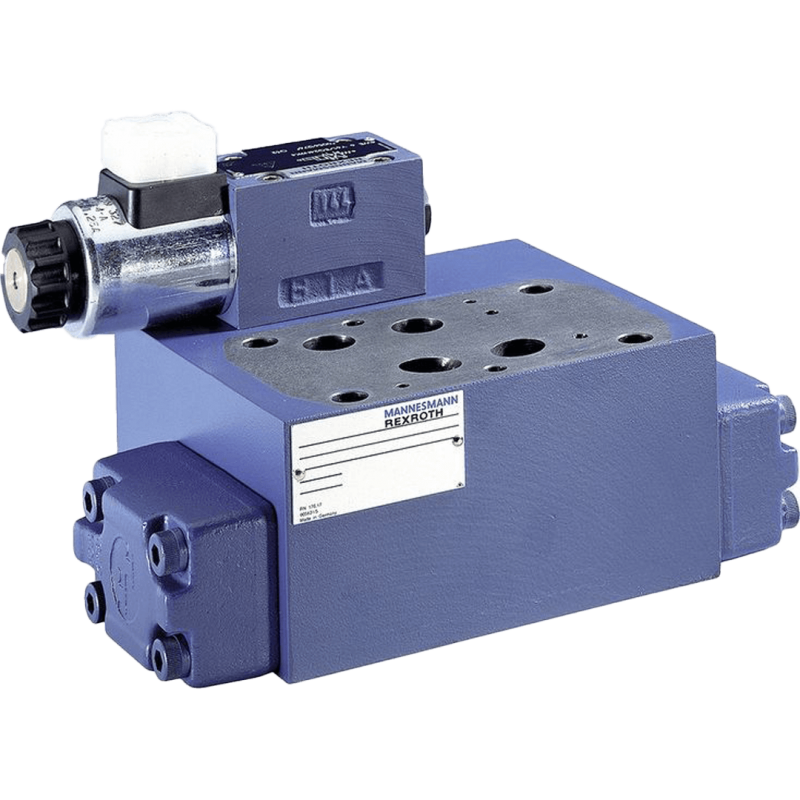

Bosch Rexroth Isolator Valves Z4W(E)H16
- Size 16
- Component series 5X
- Maximum operating pressure 315 bar
- Maximum flow 300 l/min
Features:
- Directional spool valve, pilot operated
- 2 types of actuation:
• Electrohydraulic (type WEH)
• Hydraulic (type WH) - Function as shut-off through valve or shut-off/ through valve/ short-circuit valve
- Free flow in P and T in every spool position
- Porting pattern to ISO 4401-07-07-0-05
- Wet-pin DC or AC voltage solenoids, optional
- Manual override, optional
- Electrical connection as individual connection
- Switching time adjustment, optional
- Stroke adjustment on main spool, optional
- Inductive position switch and proximity sensors (contactless)
