Carr Lane Side-Pull Hoist Ring

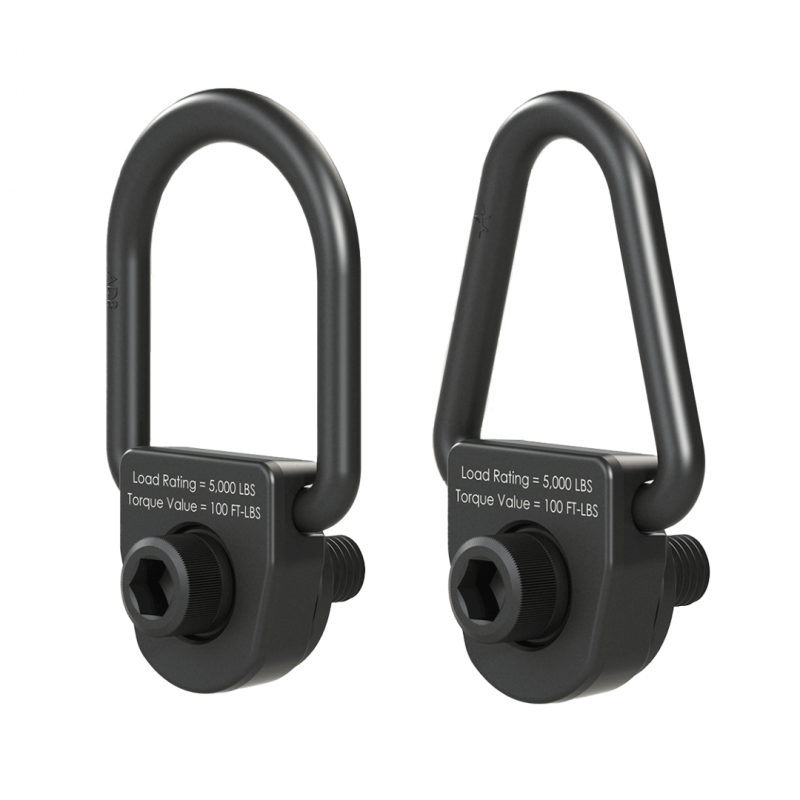

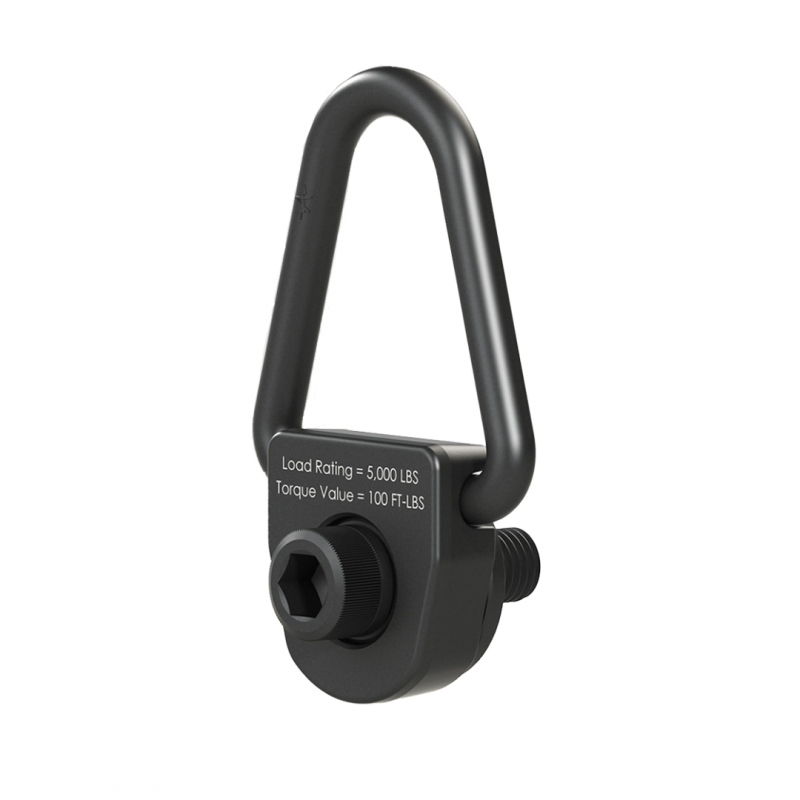

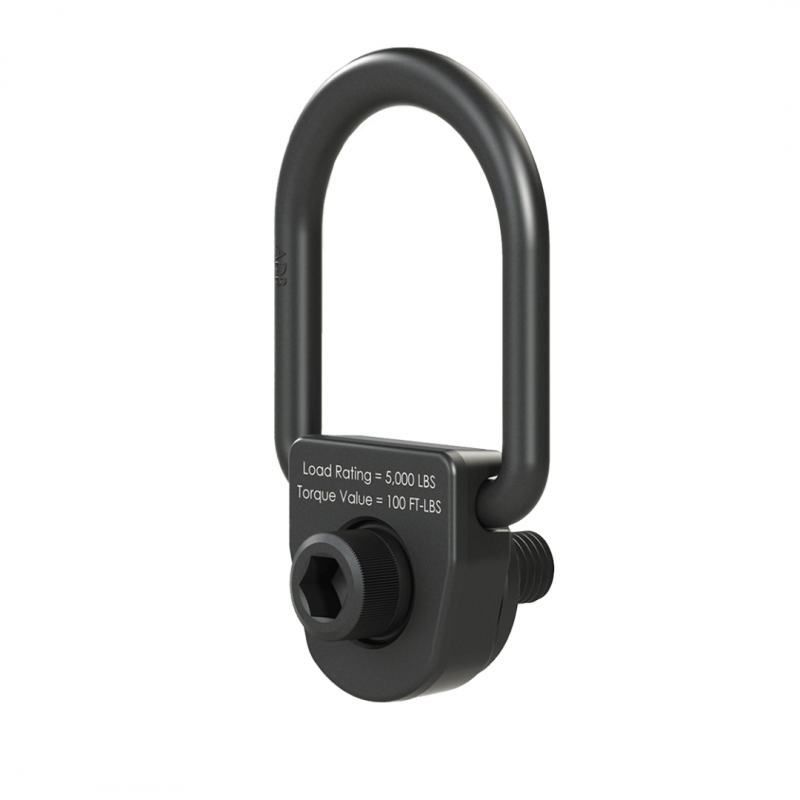

Carr Lane Side-Pull Hoist Rings are designed for side mounting applications. These Side-pull hoist rings enable the rotation and repositioning of loads without needing to detach them, by using a spreader bar. The lifting ring on these hoist rings can rotate 360° and pivot 180°, providing versatile lifting from any angle. Standard versions of the Carr Lane Side-Pull Hoist Rings feature inch threads with load capacities up to 2,500 lbs or metric threads with capacities up to 3,500 lbs. The Heavy-Duty Hoist Rings in this section offer inch threads with capacities up to 10,000 lbs. or metric threads with capacities up to 9,200 lbs. These are available in both triangular ring and D ring variations.
- Load Rating: 650 - 55'000 (lbs)
- Installation Torque: 3.5 - 3000 (lbs)
Part Number | Material Number | Type | Metric or Imperial | Thread | Price | Add to Parts List |
---|---|---|---|---|---|---|
CL-36320-SPHR | Heavy Duty | Imperial | 5/8-11 | £160.30 £192.36 Inc. VAT |
|
|
CLM-36805-SPHR | Heavy Duty | Metric | M8 | £126.94 £152.33 Inc. VAT |
|
|
CLM-36835-SPHR | Heavy Duty | Metric | M24 | £345.28 £414.34 Inc. VAT |
|
|
CL-36330-SPHR | Heavy Duty | Imperial | 3/4-10 | £345.28 £414.34 Inc. VAT |
|
|
CLM-36815-SPHR | Heavy Duty | Metric | M12 | £160.30 £192.36 Inc. VAT |
|
|
CL-36310-SPHR | Heavy Duty | Imperial | 3/8-16 | £126.94 £152.33 Inc. VAT |
|
|
CL-36340-SPHR | Heavy Duty | Imperial | 1"-8 | £345.28 £414.34 Inc. VAT |
|
|
CLM-36825-SPHR | Heavy Duty | Metric | M20 | £236.36 £283.63 Inc. VAT |
|
|
CLM-36830-SPHR | Heavy Duty | Metric | M20 | £345.28 £414.34 Inc. VAT |
|
|
CL-36325-SPHR | Heavy Duty | Imperial | 3/4-10 | £236.36 £283.63 Inc. VAT |
|
|
CLM-36810-SPHR | Heavy Duty | Metric | M10 | £126.94 £152.33 Inc. VAT |
|
|
CL-36305-SPHR | Heavy Duty | Imperial | 5/16-18 | £126.94 £152.33 Inc. VAT |
|
|
CL-36335-SPHR | Heavy Duty | Imperial | 7/8-9 | £345.28 £414.34 Inc. VAT |
|
|
CLM-36820-SPHR | Heavy Duty | Metric | M16 | £160.30 £192.36 Inc. VAT |
|
|
CL-36315-SPHR | Heavy Duty | Imperial | 1/2-13 | £160.30 £192.36 Inc. VAT |
|
Carr Lane Side-Pull Hoist Ring
- Load Rating: 650 - 55'000 (lbs)
- Installation Torque: 3.5 - 3000 (lbs)
Fasten hoist ring using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely.
Side-Pull Hoist RingFeatures
- Ideal for side mounting
- Flip and turn loads without unhooking (use with a spreader bar)
- Forged alloy-steel ring pivots 180° and swivels 360° simultaneously to allow lifting from any direction
- Large, weldless forged ring can accommodate larger lifting hooks. Meets OSHA standards and Military Specifications MIL-STD-209C and MIL-STD-1365(11)
- Safety factor = 5:1
Heavy-Duty Side-Pull Hoist Ring Features
- Offers greater load capacity in a given mounting-thread size
- Side-Pull Hoist Rings are ideal for side mounting
- Flip and turn loads without unhooking (use with a spreader bar)
- Forged alloy-steel ring pivots and swivels 360° simultaneously to allow lifting from any direction
- Safety factor = 5:1 Patent no. 6,267,422
