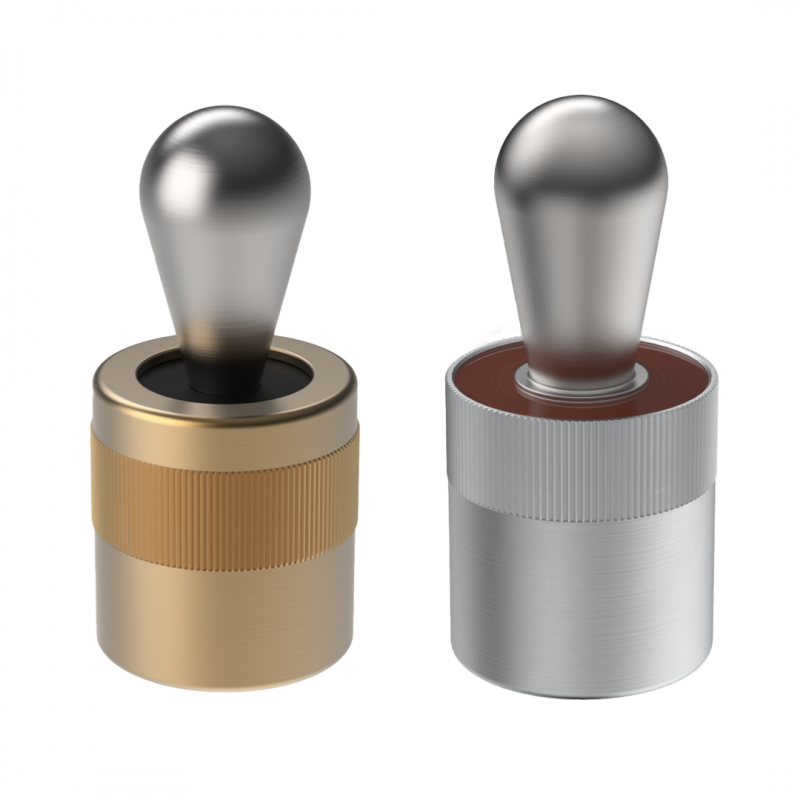

Carr Lane Spring Locating Pins
Spring Locating Pins are press-fit components designed to provide a compact solution for applying side force to a workpiece, ideal for positioning or light clamping. This range of Spring-Loaded Locating Pins are crafted from materials like Steel, Stainless Steel, and Delrin®. These pins come in five body diameter sizes, ranging from ¼” to 5/8”, and are available in light, medium, and heavy force options across most sizes.
- 5 body diameter sizes available
- Light. medium and heavy force options
- Hardened Steel, Stainless Steel and Delrin Pin
| Part Number | Material Number | External Diameter | Pin Type | Approx Side Force (LBS) | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CL-4-SLPP-2 | 1/4 | Delrin Pin | 4.5 | On Enquiry | ||
| CL-4-SLP-1 | 1/4 | Hardened Steel Pin | 2.2 | £10.31 £12.37 Inc. VAT |
|
|
| CL-4-SLP-2 | 1/4 | Hardened Steel Pin | 4.5 | £10.31 £12.37 Inc. VAT |
|
|
| CL-4-SLP-3 | 1/4 | Hardened Steel Pin | 9 | £10.31 £12.37 Inc. VAT |
|
|
| CL-4-SLPP-1 | 1/4 | Delrin Pin | 2.2 | On Enquiry | ||
| CL-8-SLP-1 | 1/2 | Hardened Steel Pin | 11 | £12.65 £15.18 Inc. VAT |
|
|
| CL-8-SLP-2 | 1/2 | Hardened Steel Pin | 22 | £12.65 £15.18 Inc. VAT |
|
|
| CL-8-SLPP-1 | 1/2 | Delrin Pin | 11 | £11.08 £13.30 Inc. VAT |
|
|
| CL-8-SLPP-2 | 1/2 | Delrin Pin | 22 | £11.08 £13.30 Inc. VAT |
|
|
| CL-8-SLPS-1 | 1/2 | Stainless Steel Pin | 11 | £13.34 £16.01 Inc. VAT |
|
|
| CL-8-SLPS-2 | 1/2 | Stainless Steel Pin | 22 | £13.34 £16.01 Inc. VAT |
|
|
| CL-8-SLPS-3 | 1/2 | Stainless Steel Pin | 33 | £13.34 £16.01 Inc. VAT |
|
|
| CL-8-SLP-3 | 1/2 | Hardened Steel Pin | 45 | £12.65 £15.18 Inc. VAT |
|
|
| CL-10-SLP-1 | 5/8 | Hardened Steel Pin | 22 | £13.62 £16.34 Inc. VAT |
|
|
| CL-10-SLP-2 | 5/8 | Hardened Steel Pin | 45 | £13.62 £16.34 Inc. VAT |
|
|
| CL-10-SLP-3 | 5/8 | Hardened Steel Pin | 67 | £13.62 £16.34 Inc. VAT |
|
|
| CL-10-SLPP-1 | 5/8 | Delrin Pin | 22 | £12.11 £14.53 Inc. VAT |
|
|
| CL-10-SLPP-2 | 5/8 | Delrin Pin | 45 | £12.11 £14.53 Inc. VAT |
|
|
| CL-10-SLPS-1 | 5/8 | Stainless Steel Pin | 22 | £14.40 £17.28 Inc. VAT |
|
|
| CL-10-SLPS-2 | 5/8 | Stainless Steel Pin | 45 | £14.40 £17.28 Inc. VAT |
|
|
| CL-7-SLPS-3 | 7/16 | Stainless Steel Pin | 20 | £11.64 £13.97 Inc. VAT |
|
|
| CL-7A-SLPS-3 | 7/16 | Stainless Steel Pin | 20 | £12.37 £14.84 Inc. VAT |
|
|
| CL-7-SLP-1 | 7/16 | Hardened Steel Pin | 4.5 | £10.92 £13.10 Inc. VAT |
|
|
| CL-7A-SLP-1 | 7/16 | Hardened Steel Pin | 9 | £11.24 £13.49 Inc. VAT |
|
|
| CL-7-SLP-2 | 7/16 | Hardened Steel Pin | 11 | £10.92 £13.10 Inc. VAT |
|
|
| CL-7A-SLP-2 | 7/16 | Hardened Steel Pin | 17 | £11.24 £13.49 Inc. VAT |
|
|
| CL-7-SLP-3 | 7/16 | Hardened Steel Pin | 22 | £10.92 £13.10 Inc. VAT |
|
|
| CL-7A-SLP-3 | 7/16 | Hardened Steel Pin | 34 | £11.24 £13.49 Inc. VAT |
|
|
| CL-7-SLPP-1 | 7/16 | Delrin Pin | 6.7 | £9.88 £11.86 Inc. VAT |
|
|
| CL-7A-SLPP-1 | 7/16 | Delrin Pin | 6.7 | £10.50 £12.60 Inc. VAT |
|
|
| CL-7A-SLPP-2 | 7/16 | Delrin Pin | 13 | £10.50 £12.60 Inc. VAT |
|
|
| CL-7-SLPP-2 | 7/16 | Delrin Pin | 13 | £9.88 £11.86 Inc. VAT |
|
|
| CL-7A-SLPS-1 | 7/16 | Stainless Steel Pin | 6.7 | £12.37 £14.84 Inc. VAT |
|
|
| CL-7-SLPS-1 | 7/16 | Stainless Steel Pin | 6.7 | £11.64 £13.97 Inc. VAT |
|
|
| CL-7-SLPS-2 | 7/16 | Stainless Steel Pin | 13 | £11.64 £13.97 Inc. VAT |
|
|
| CL-7A-SLPS-2 | 7/16 | Stainless Steel Pin | 13 | £12.37 £14.84 Inc. VAT |
|
Carr Lane Spring Locating Pins
Spring Locating Pins are press-fit components designed to provide a compact solution for applying side force to a workpiece, ideal for positioning or light clamping. This range of Spring-Loaded Locating Pins are crafted from materials like Steel, Stainless Steel, and Delrin®. These pins come in five body diameter sizes, ranging from ¼” to 5/8”, and are available in light, medium, and heavy force options across most sizes.
Options:
- 5 body diameter sizes available
- Light. medium and heavy force options
- Hardened Steel, Stainless Steel and Delrin Pin

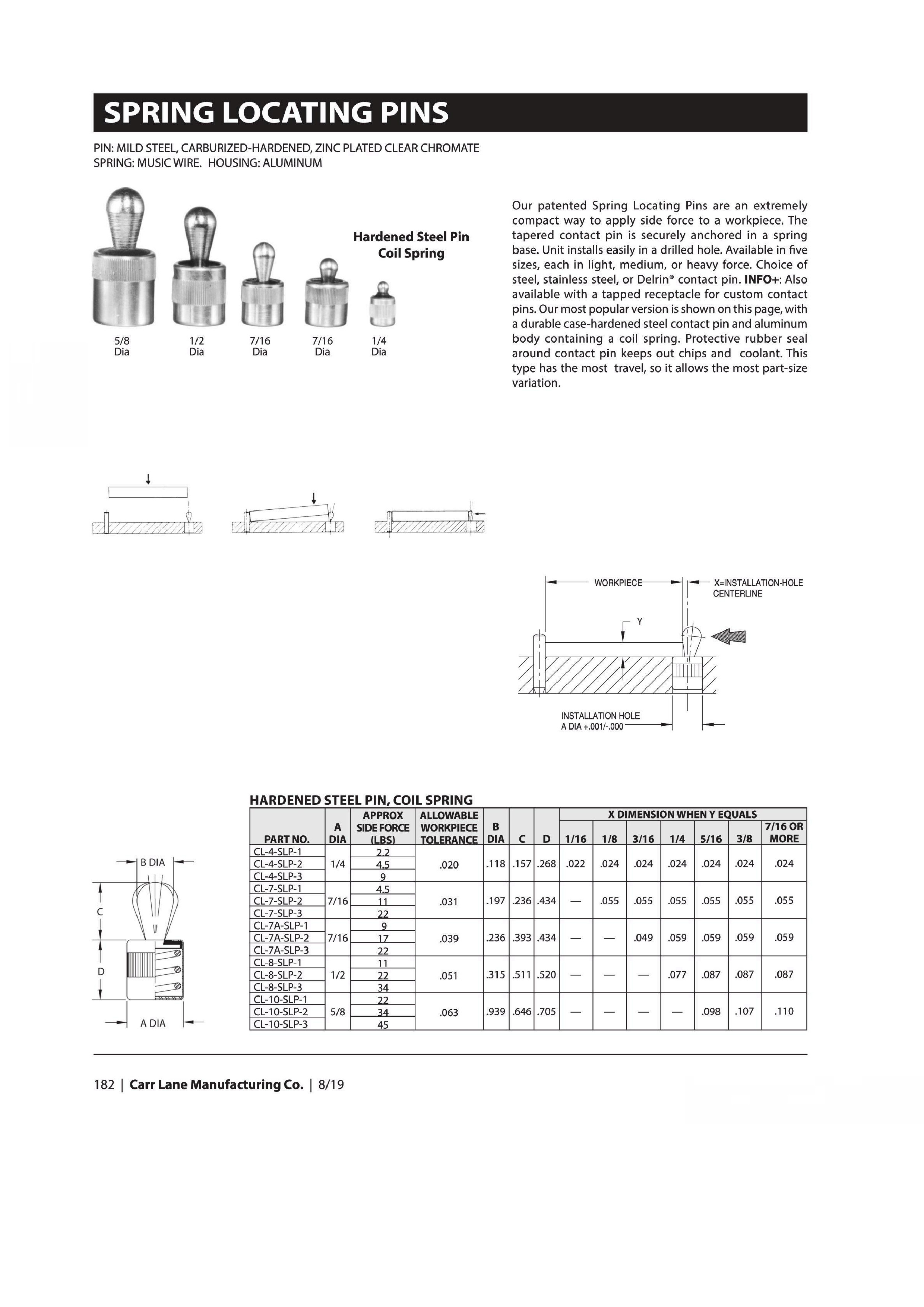

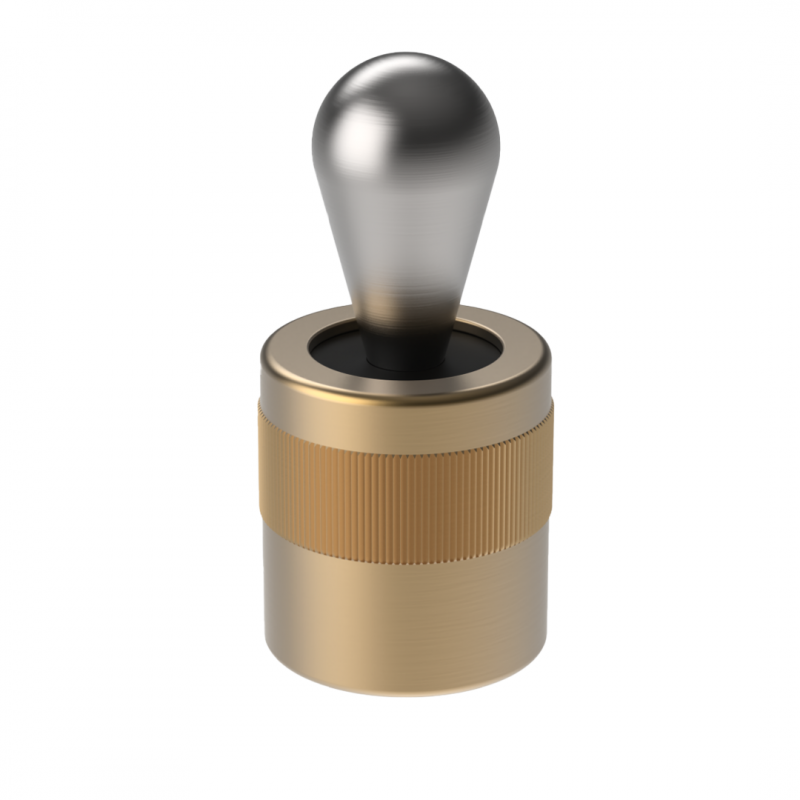

Hardened Steel Pin (Coil Spring)
With a case-hardened steel contact pin and a coil spring, this type is the most popular. It has a protective rubber seal around the contact pin to keeps out dirt and chips, and the most travel so it allows the most part-size variation.

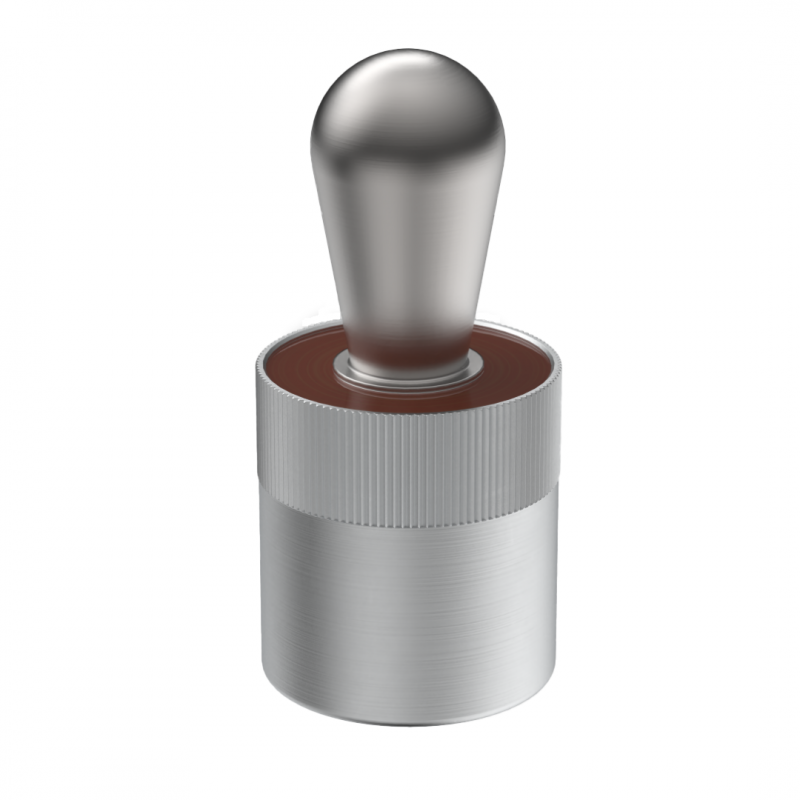

Stainless Steel Pin (Polyurethane Spring)
This version comes with a stainless steel contact pin and a solid polyurethane body covered by an aluminium shell. The stainless steel pin is ideal for corrosive environments and hygienic applications.
Delrin® Pin (Polyurethane Spring)
This version has a Delrin® contact pin and a solid polyurethane body covered by an aluminium shell, ideal to avoid marring soft materials or finished surfaces.
