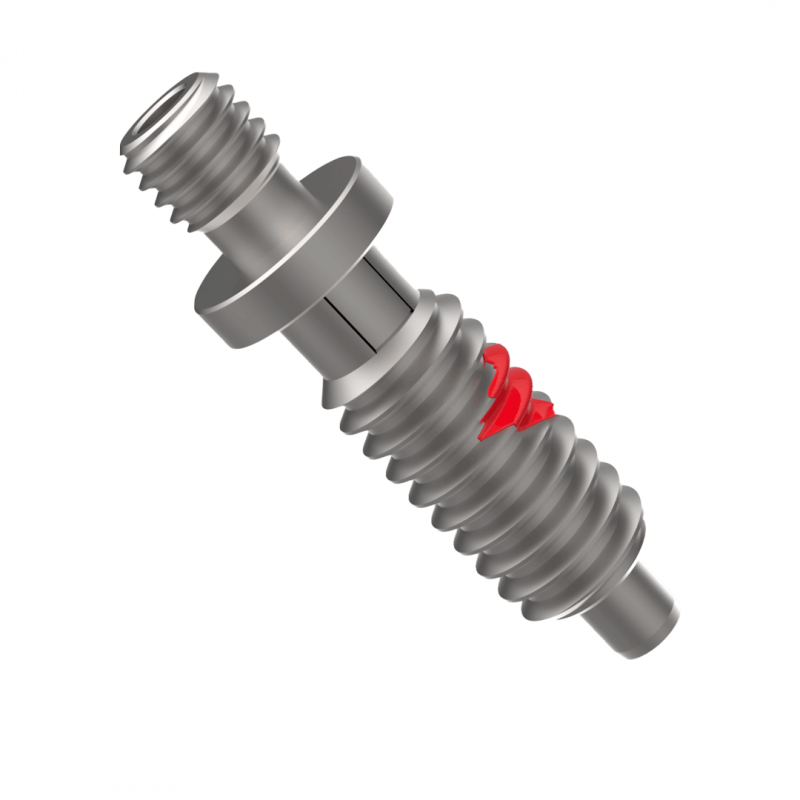

Carr Lane Threaded Stud Hand Retractable Plunger
These Hand-retractable plungers feature a locking mechanism that secures it in the retracted position. To lock the plunger, simply pull the ring back and twist it 90°. It has a slight taper for easy alignment during use. The threaded-stud version shown here is compatible with nearly any type of knob handle (knob handle must be ordered separately). If desired, knob handles can be permanently fastened using thread-locking adhesive. This version is available in steel with thread sizes ranging from #10-32 to 5/8-11 (M6 to M12 in metric), and also in stainless steel with the same thread size options.
- Metric and Imperial sizes available
- Steel and Stainless Steel
- Thread - #10-32 - 5/8-11 or M6 - M12
| Part Number | Material Number | Metric or Imperial | Material | End Force (LBS) | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CLM-6-HRPT | Metric | Steel | Initial 1 Final 5 | M6 | £16.82 £20.18 Inc. VAT |
|
|
| CLM-10-HRPT | Metric | Steel | Initial 1.5 Final 8 | M10 | £19.76 £23.71 Inc. VAT |
|
|
| CLM-8-HRPT | Metric | Steel | Initial 1.5 Final 6 | M8 | £18.19 £21.83 Inc. VAT |
|
|
| CLM-12-HRPT | Metric | Steel | Initial 2.5 Final 10 | M12 | £25.75 £30.90 Inc. VAT |
|
|
| CL-3-HRPT | Imperial | Steel | Initial 1 Final 3 | #10/32 | £17.16 £20.59 Inc. VAT |
|
|
| CL-5-HRPT-S | Imperial | Stainless Steel | Initial 1.5 Final 6 | 5/16-18 | £25.06 £30.07 Inc. VAT |
|
|
| CL-10-HRPT-S | Imperial | Stainless Steel | Initial 5 Final 10 | 5/8-11 | £35.82 £42.98 Inc. VAT |
|
|
| CL-6-HRPT-S | Imperial | Stainless Steel | Initial 1.5 Final 8 | 3/8-16 | £28.49 £34.19 Inc. VAT |
|
|
| CL-4-HRPT-S | Imperial | Stainless Steel | Initial 1 Final 5 | 1/4-20 | £23.51 £28.21 Inc. VAT |
|
|
| CL-8-HRPT-S | Imperial | Stainless Steel | Initial 2.5 Final 10 | 1/2-13 | £31.51 £37.81 Inc. VAT |
|
|
| CL-3-HRPT-S | Imperial | Stainless Steel | Initial 1 Final 3 | #10/32 | £23.51 £28.21 Inc. VAT |
|
|
| CL-6-HRPT | Imperial | Steel | Initial 1.5 Final 8 | 3/8-16 | £16.90 £20.28 Inc. VAT |
|
|
| CL-4-HRPT | Imperial | Steel | Initial 1 Final 5 | 1/4-20 | £14.59 £17.51 Inc. VAT |
|
|
| CL-8-HRPT | Imperial | Steel | Initial 2.5 Final 10 | 1/2-13 | £18.92 £22.70 Inc. VAT |
|
|
| CL-5-HRPT | Imperial | Steel | Initial 1.5 Final 6 | 5/16-18 | £15.13 £18.16 Inc. VAT |
|
|
| CL-10-HRPT | Imperial | Steel | Initial 5 Final 10 | 5/8-11 | £21.66 £25.99 Inc. VAT |
|
Carr Lane Threaded Stud for Knob Handle Locking Hand Retractable Plunger
Spring-loaded plunger that locks in retracted position, with a slight taper on plunger tip for easy alignment. To lock, pull knob back and turn 90°. The threaded-stud version accepts virtually any type of knob handle. Knob handles can be permanently secured with thread-locking adhesive if desired.
Options:
- Metric and Imperial sizes available
- Steel and Stainless Steel
- Thread - #10-32 - 5/8-11 or M6 - M8
