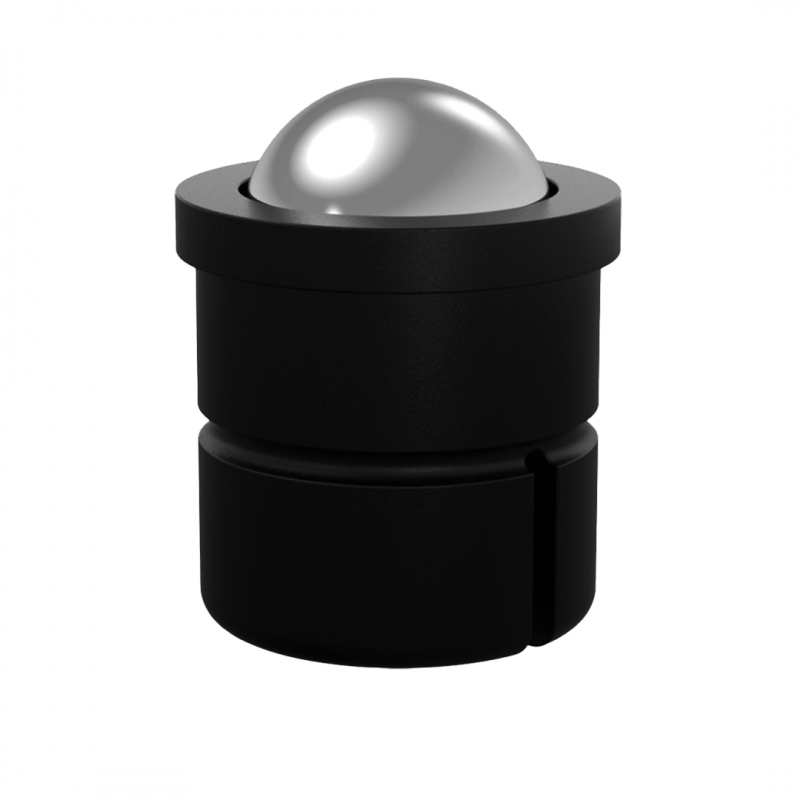

Carr Lane Self-Retaining Ball Plunger
Due to their self-retaining design, these press-fit ball plungers can be easily installed into a standard drilled hole. The slotted end of the thermoplastic body expands to compensate hole tolerances of up to .008" oversize. The sturdy shoulder ensures a secure seating position and effectively resists detent force. The installation hole can be counterbored to accommodate the shoulder. They are available in four sizes, from 3/16 to 1" diameter.
- Available in four sizes
- External Diameter - .188 - .500
- Thermoplastic Body and Stainless Steel Ball
| Part Number | Material Number | External Diameter | Price | Add to Parts List |
|---|---|---|---|---|
| CL-3-SRBP-1 | .188 | £6.95 £8.34 Inc. VAT |
|
|
| CL-4-SRBP-1 | .250 | £7.08 £8.50 Inc. VAT |
|
|
| CL-6-SRBP-1 | .375 | £7.96 £9.55 Inc. VAT |
|
|
| CL-8-SRBP-1 | .500 | £11.32 £13.58 Inc. VAT |
|
Carr Lane Self-Retaining Ball Plungers
Due to their self-retaining design, the press-fit ball plungers can be securely installed in an ordinary drilled hole. The slotted end of the thermoplastic body expands to compensate for hole tolerances up to .008" oversize. Sturdy shoulder provides a fixed seating position and positively resists detent force. Installation hole can be counterbored to recess shoulder.
Due to their self-retaining design, these press-fit ball plungers can be easily installed into a standard drilled hole. The slotted end of the thermoplastic body expands to compensate hole tolerances of up to .008" oversize. The sturdy shoulder ensures a secure seating position and effectively resists detent force. The installation hole can be counterbored to accommodate the shoulder. They are available in four sizes, from 3/16 to 1" diameter.
Options:
- Available in four sizes
- External Diameter - .188 - .500
- Thermoplastic Body and Stainless Steel Ball
| Quantity | Unit discount | You Save |
|---|
