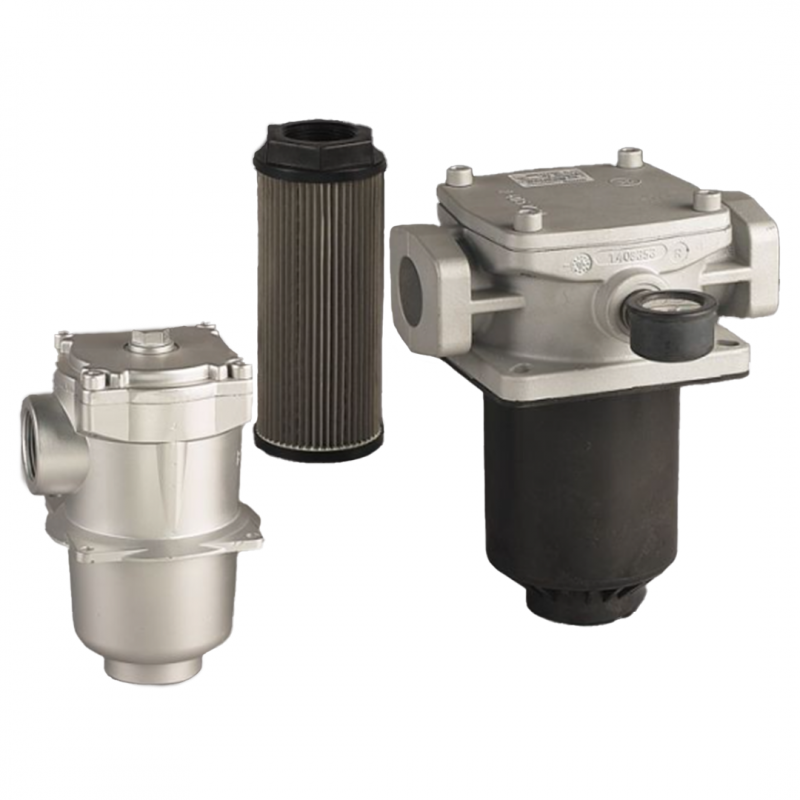

Hydac Suction Filters SF

HYDAC Suction Filters SF provide reliable filtration for hydraulic systems, handling flow rates up to 330 l/min and temperatures ranging from -10 °C to +100 °C. Built with an aluminium housing and bolt-on cover plate, they feature a standard bypass valve, clogging indicator connection, and compatibility with various hydraulic fluids, ensuring efficient contaminant control and system protection.

Key Features:

  • Flow rates up to 330 l/min
  • Temperature range -10 °C to +100 °C
  • Connections: G¾ to SAE DN 50

Print page

Description

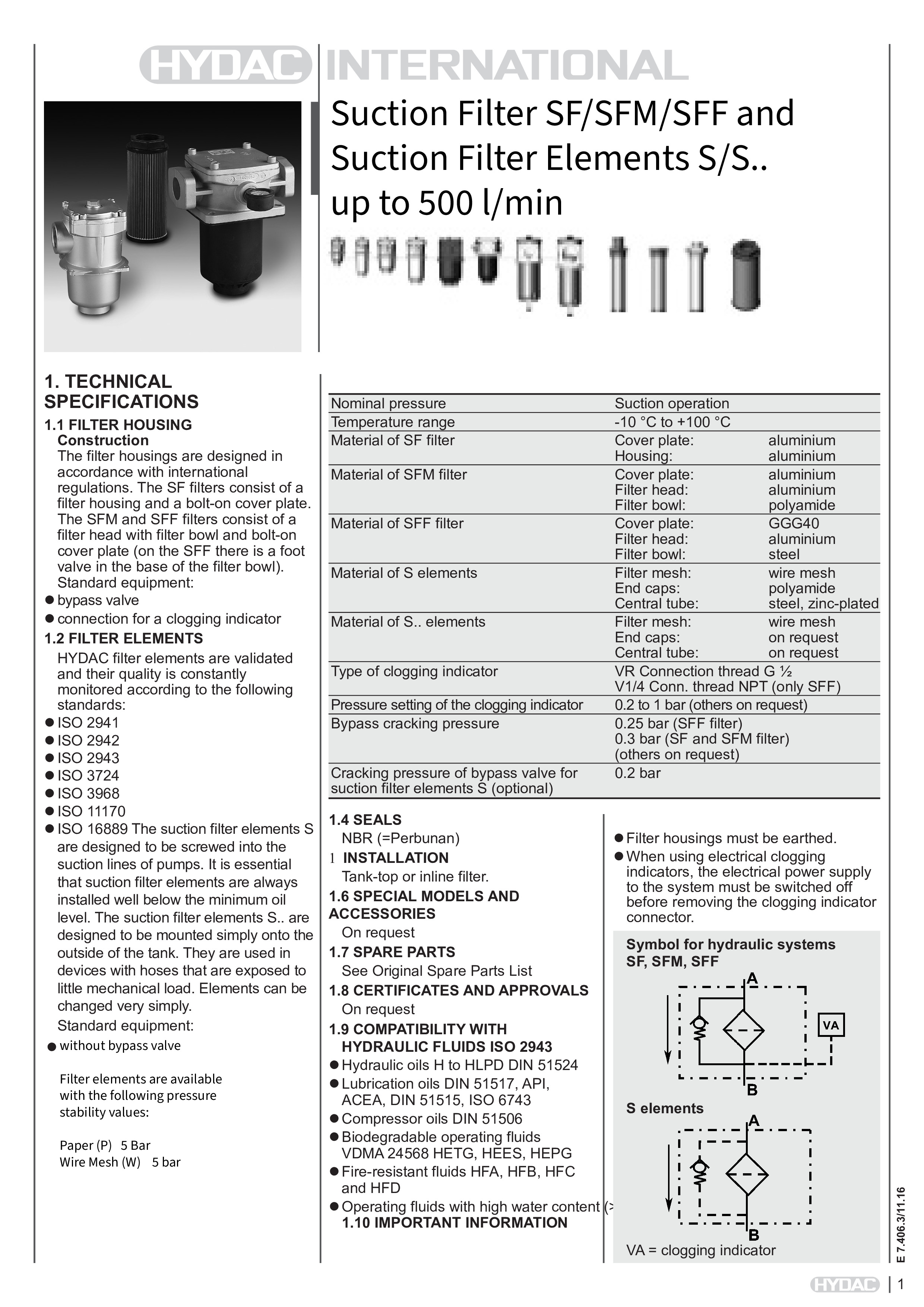

Downloads
Hydac Suction Filters SF

HYDAC Suction Filters SF

  • Flow rates up to 330 l/min
  • Temperature range -10 °C to +100 °C
  • Connections: G¾ to SAE DN 50
  • Installation sizes: 60, 110, 160, 240, 330
  • Material of filter: aluminium

Features:

  • The filter housings are designed in accordance with international regulations
  • They consist of a filter housing and a bolt-on cover plate
  • Bypass valve as standard
  • Bypass cracking pressure: 0.3 bar
  • Connection for a clogging indicator
  • Pressure setting of the clogging indicator 0.2 to 2 bar (others on request)
  • Compatibility with hydraulic fluids ISO 2943
  • Special models and accessories available on request
  • Certificates and approvals available on request

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Filter elements are available with the following pressure stability values:

  • Paper (P): 5 bar
  • Wire mesh (W): 5 bar
