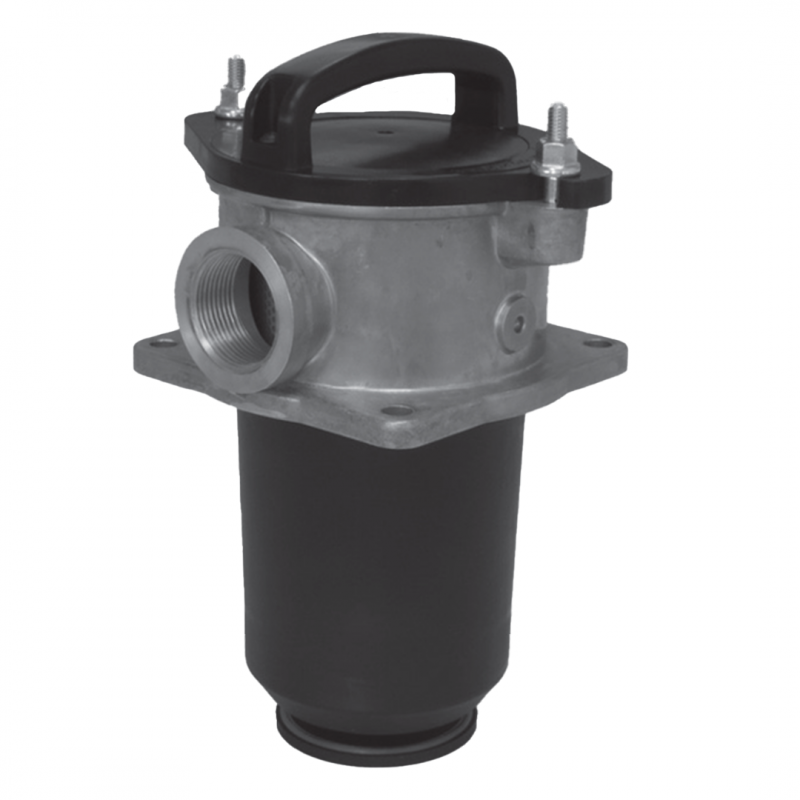

Hydac Suction Filters SFAR with Bottom Valve and Magnetic Core
HYDAC Suction Filters SFAR with Bottom Valve and Magnetic Core provide reliable filtration for hydraulic systems, supporting flow rates up to 150 l/min. Designed for horizontal installation below the oil level, they feature a top-removable element, integrated magnetic core, and a foot valve for enhanced efficiency. With clogging indicator compatibility and sturdy construction, they ensure optimal system performance.
Key Features:
- Flow rates up to 150 l/min
- Installation sizes: 100, 150
- Temperature range -30 °C to +100 °C
Description
Downloads
HYDAC Suction Filters SFAR with Bottom Valve and Magnetic Core
- Flow rates up to 150 l/min
- Installation sizes: 100, 150
- Temperature range -30 °C to +100 °C
- Connections: G1¼
- Flow from inside to outside
Features:
- The filter housings are designed in accordance with international regulations
- They consist of a cover plate, filter head and housing tube
- The element is top-removable
- These filters can be installed horizontally below the oil level
- Mounting holes on the filter head as standard
- Magnetic core built into cover plate
- Foot valve
- Connection for a clogging indicator in filter head
- Type of clogging indicator VMFR – Connection thread G 1/8
- Pressure setting of the clogging indicator -0.25 bar (others on request)
- Compatibility with hydraulic fluids ISO 2943
- Special models and accessories available on request
- Certificates and approvals available on request
HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:
- ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889
Filter elements are available with the following pressure stability values:
- Polyester (PE): 6 bar
- Wire mesh (WR): 6 bar
- Other filtration ratings on request
