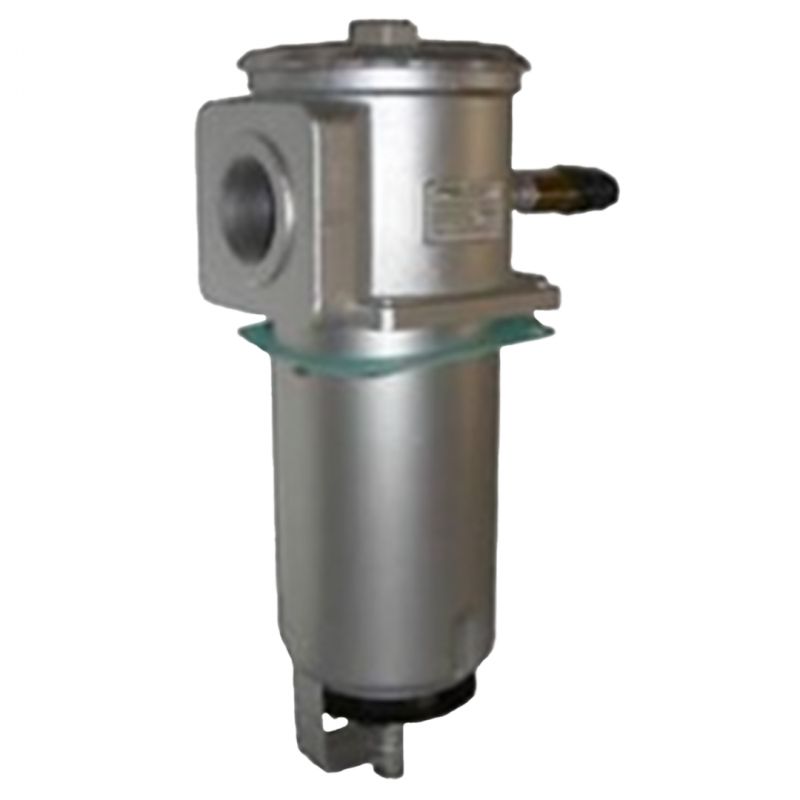

Hydac Suction Filter with Foot Valve SFF

HYDAC Suction Filter SFF with Foot Valve ensures reliable filtration for hydraulic systems, handling flow rates up to 500 l/min. Designed with a bolt-on cover plate and integrated foot valve, it enhances system efficiency. Featuring a standard bypass valve and clogging indicator connection, it provides effective contaminant removal and operational stability.

Key Features:

  • Flow rates up to 500 l/min
  • Temperature range -10 °C to +100 °C

Print page

Description
Downloads
Hydac Suction Filter with Foot Valve SFF

HYDAC Suction Filter with Foot Valve SFF

  • Flow rates up to 500 l/min
  • Temperature range -10 °C to +100 °C
  • Connections: SAE DN 65 to 100
  • Installation sizes: 400, 500

Features:

  • The filter housings are designed in accordance with international regulations
  • They consist of a filter head with filter bowl and bolt-on cover plate
  • There is a foot valve in the base of the filter bowl
  • Bypass valve as standard
  • Bypass cracking pressure 0.3 bar (others on request)
  • Connection for a clogging indicator
  • Pressure setting of the clogging indicator 0.2 to 2 bar (others on request)
  • Compatibility with hydraulic fluids ISO 2943
  • Special models and accessories available on request
  • Certificates and approvals available on request

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Filter elements are available with the following pressure stability values:

  • Paper (P): 5 bar
  • Wire mesh (W): 5 bar
