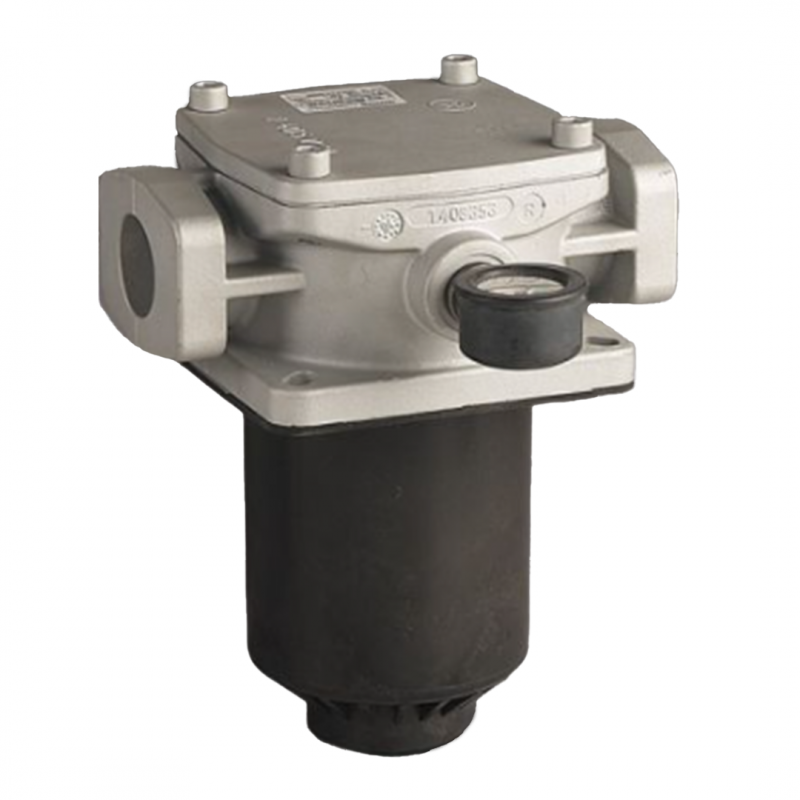

Hydac Suction Filter SFM

HYDAC Suction Filter SFM ensures reliable hydraulic filtration, handling flow rates up to 330 l/min. Built with a bolt-on cover plate and bypass valve, it provides efficient contaminant removal. With clogging indicator compatibility and a durable design, it supports stable system performance.

Key Features:

  • Flow rates up to 330 l/min
  • Temperature range -10 °C to +100 °C
  • Connections: G1½ and SAE DN 40
  • Installation size: 330

Print page

Description
Downloads
Hydac Suction Filter SFM

HYDAC Suction filter SFM

  • Flow rates up to 330 l/min
  • Temperature range -10 °C to +100 °C
  • Connections: G1½ and SAE DN 40
  • Installation size: 330

Features:

  • The filter housings are designed in accordance with international regulations
  • They consist of a filter head with filter bowl and bolt-on cover plate
  • Bypass valve as standard
  • Bypass cracking pressure 0.3 bar (others on request)
  • Connection for a clogging indicator
  • Pressure setting of the clogging indicator 0.2 to 2 bar (others on request)
  • Compatibility with hydraulic fluids ISO 2943
  • Special models and accessories available on request
  • Certificates and approvals available on request

HYDAC filter elements are validated and their quality is constantly monitored according to the following standards:

  • ISO 2941, ISO 2942, ISO 2943, ISO 3724, ISO 3968, ISO 11170, ISO 16889

Filter elements are available with the following pressure stability values:

  • Paper (P): 5 bar
  • Wire mesh (W): 5 bar
