Carr Lane Gripper Swivel Pads Mini
Mini-size rest pad featuring an integrated swivel ball secured by a retaining ring. The gripper face is machined directly on the swivel ball. A built-in stop ensures the ball doesn't swivel beyond a certain point. Gripper Swivel Pads can be either surface-mounted or placed in a counterbored hole for installation. It is offered in body diameters ranging from 3/8 to 5/8" (10 to 17mm in metric).
- Thread: #4-40 - 1/4-28 or M4 - M6
- Metric and Imperial sizes

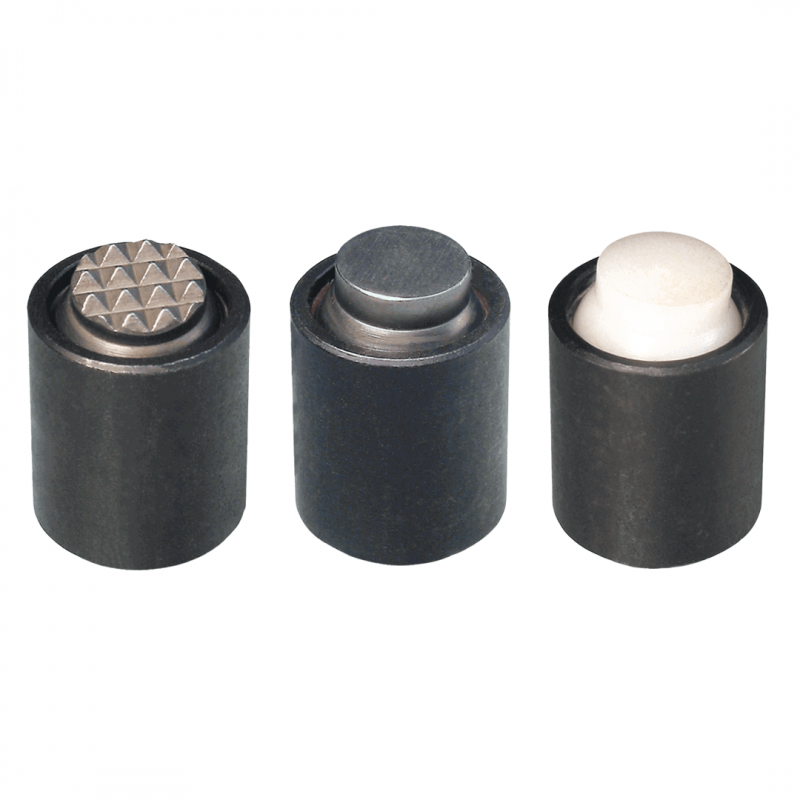

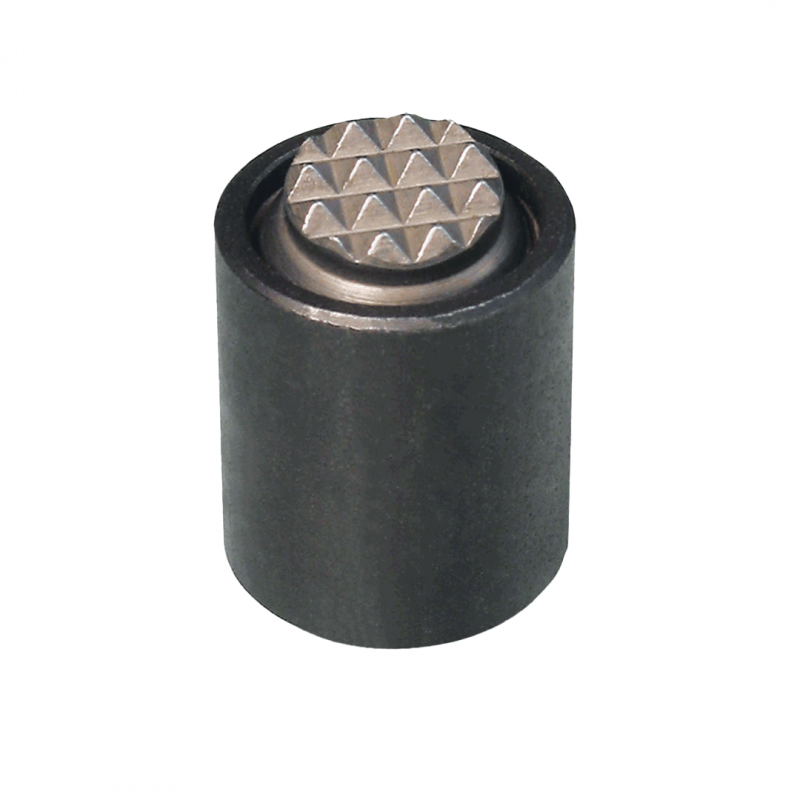

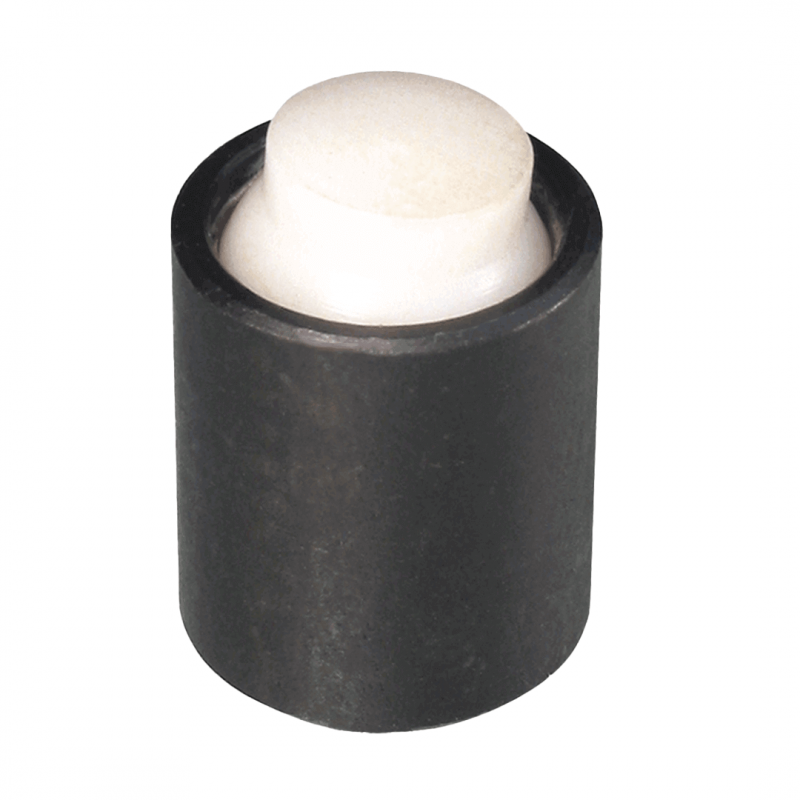

- Hardened Tool Steel (Serrated), Hardened Steel (Flat) and Delrin® (Flat)
| Part Number | Material Number | Metric or Imperial | Material | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CLM-6-GSPN | Metric | Delrin (Flat) | M4 | £37.39 £44.87 Inc. VAT |
|
|
| CLM-6-GSPS | Metric | Hardened Tool Steel (Serrated) | M4 | £40.36 £48.43 Inc. VAT |
|
|
| CLM-8-GSPN | Metric | Delrin (Flat) | M5 | £35.75 £42.90 Inc. VAT |
|
|
| CLM-8-GSPS | Metric | Hardened Tool Steel (Serrated) | M5 | £43.31 £51.97 Inc. VAT |
|
|
| CLM-10-GSPF | Metric | Hardened Steel (Flat) | M6 | £46.20 £55.44 Inc. VAT |
|
|
| CLM-10-GSPN | Metric | Delrin (Flat) | M6 | £40.09 £48.11 Inc. VAT |
|
|
| CLM-10-GSPS | Metric | Hardened Tool Steel (Serrated) | M6 | £48.68 £58.42 Inc. VAT |
|
|
| CLM-6-GSPF | Metric | Hardened Steel (Flat) | M4 | £38.63 £46.36 Inc. VAT |
|
|
| CLM-8-GSPF | Metric | Hardened Steel (Flat) | M5 | £41.15 £49.38 Inc. VAT |
|
|
| CL-3-GSPN | Imperial | Delrin (Flat) | #4-40 | £34.50 £41.40 Inc. VAT |
|
|
| CL-4-GSPS | Imperial | Hardened Tool Steel (Serrated) | #8-32 | £40.34 £48.41 Inc. VAT |
|
|
| CL-4-GSPF | Imperial | Hardened Steel (Flat) | #8-32 | £40.13 £48.16 Inc. VAT |
|
|
| CL-4-GSPN | Imperial | Delrin (Flat) | #8-32 | £37.33 £44.80 Inc. VAT |
|
|
| CL-6-GSPS | Imperial | Hardened Tool Steel (Serrated) | 1/4-28 | £47.80 £57.36 Inc. VAT |
|
|
| CL-5-GSPS | Imperial | Hardened Tool Steel (Serrated) | #10-32 | £42.61 £51.13 Inc. VAT |
|
|
| CL-6-GSPF | Imperial | Hardened Steel (Flat) | 1/4-28 | £46.08 £55.30 Inc. VAT |
|
|
| CL-5-GSPF | Imperial | Hardened Steel (Flat) | #10-32 | £41.77 £50.12 Inc. VAT |
|
|
| CL-5-GSPN | Imperial | Delrin (Flat) | #10-32 | £36.83 £44.20 Inc. VAT |
|
|
| CL-6-GSPN | Imperial | Delrin (Flat) | 1/4-28 | £43.55 £52.26 Inc. VAT |
|
|
| CL-3-GSPS | Imperial | Hardened Tool Steel (Serrated) | #4-40 | £36.89 £44.27 Inc. VAT |
|
|
| CL-3-GSPF | Imperial | Hardened Steel (Flat) | #4-40 | £35.99 £43.19 Inc. VAT |
|
Carr Lane Gripper Swivel Pads Mini
Mini-size rest pad featuring an integrated swivel ball secured by a retaining ring. The gripper face is machined directly on the swivel ball. A built-in stop ensures the ball doesn't swivel beyond a certain point. Gripper Swivel Pads can be either surface-mounted or placed in a counterbored hole for installation. It is offered in body diameters ranging from 3/8 to 5/8" (10 to 17mm in metric).
Options:
- Thread: #4-40 - 1/4-28 or M4 - M6
- Metric and Imperial sizes
- Hardened Tool Steel (Serrated), Hardened Steel (Flat) and Delrin® (Flat)
