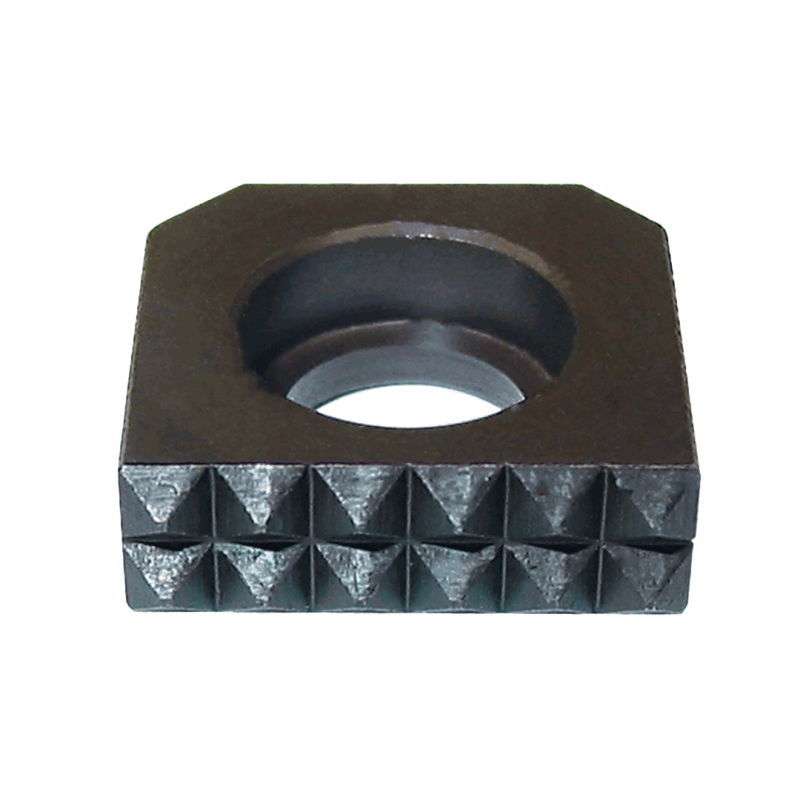

Carr Lane Edge Grippers

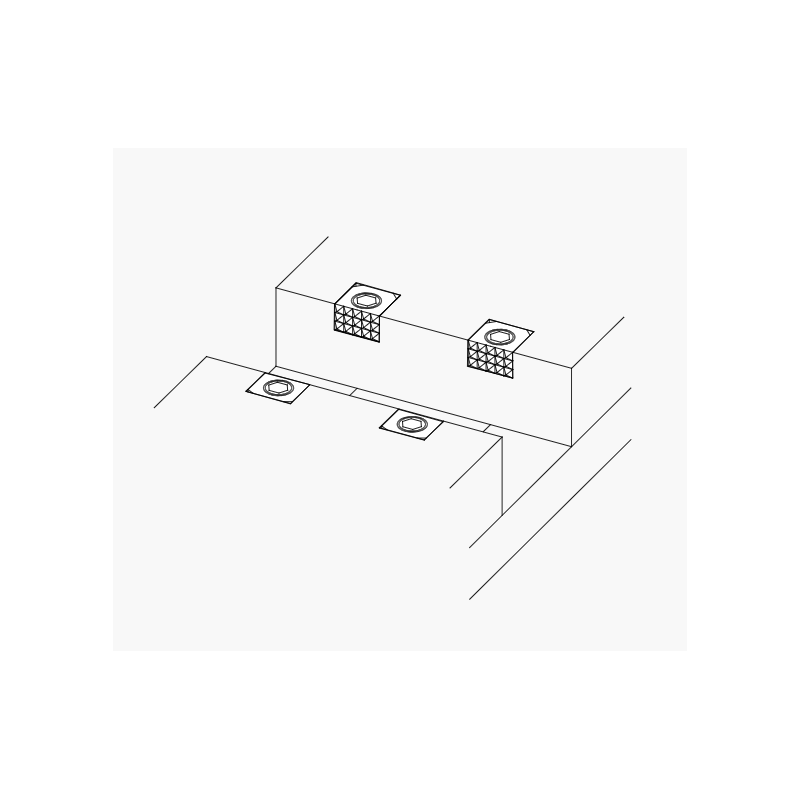

Edge Grippers are useful for applications where installation of traditional face-mounted grippers is difficult. With a flat design that positions the mounting screw parallel to the serrated face, they offer an efficient solution. These grippers are especially effective when mounted at the top edge of a clamping surface, such as a vise jaw. Made from durable, replaceable inserts that, when installed to a fixture, enhance both holding power and wear resistance. Their design allows them to slightly penetrate the workpiece, increasing gripping force beyond simple static friction. Available in square sizes ranging from 3/8" to 1" (10 to 25mm), with various thicknesses and serration options. These are available in serrations including fine, super fine and extra fine.
- Metric and Imperial sizes available
- Fine, super fine and extra fine serrations available
| Part Number | Material Number | Metric or Imperial | Length | Serrations | Height | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CLM-10-EG-6 | Metric | 10mm | Extra Fine | 6mm | £13.76 £16.51 Inc. VAT |
|
|
| CLM-16-EG-10 | Metric | 16mm | Fine | 10mm | £21.90 £26.28 Inc. VAT |
|
|
| CLM-25-EG-12 | Metric | 25mm | Fine | 12mm | £35.23 £42.28 Inc. VAT |
|
|
| CLM-12-EG-6 | Metric | 12mm | Fine | 6mm | £15.56 £18.67 Inc. VAT |
|
|
| CLM-20-EG-6 | Metric | 20mm | Fine | 6mm | £25.80 £30.96 Inc. VAT |
|
|
| CLM-12-EG-12 | Metric | 12mm | Fine | 12mm | £18.84 £22.61 Inc. VAT |
|
|
| CLM-20-EG-12 | Metric | 20mm | Fine | 12mm | £29.80 £35.76 Inc. VAT |
|
|
| CLM-25-EG-10 | Metric | 25mm | Fine | 10mm | On Enquiry | ||
| CLM-10-EG-10 | Metric | 10mm | Extra Fine | 10mm | £15.13 £18.16 Inc. VAT |
|
|
| CLM-16-EG-12 | Metric | 16mm | Fine | 12mm | On Enquiry | ||
| CLM-12-EG-10 | Metric | 12mm | Fine | 10mm | £17.12 £20.54 Inc. VAT |
|
|
| CLM-20-EG-10 | Metric | 20mm | Fine | 10mm | £28.39 £34.07 Inc. VAT |
|
|
| CLM-16-EG-6 | Metric | 16mm | Fine | 6mm | £19.91 £23.89 Inc. VAT |
|
|
| CL-10-EG-6 | Imperial | 1/2 | Fine | 3/8 | £21.53 £25.84 Inc. VAT |
|
|
| CL-6-EG-6 | Imperial | 3/8 | Extra Fine | 3/8 | £15.13 £18.16 Inc. VAT |
|
|
| CL-12-EG-6 | Imperial | 3/4 | Fine | 3/8 | £24.23 £29.08 Inc. VAT |
|
|
| CL-8-EG-8 | Imperial | 1/2 | Fine | 1/2 | £18.42 £22.10 Inc. VAT |
|
|
| CL-16-EG-8 | Imperial | 1 | Fine | 1/2 | £34.44 £41.33 Inc. VAT |
|
|
| CL-10-EG-8 | Imperial | 1/2 | Fine | 1/2 | £23.68 £28.42 Inc. VAT |
|
|
| CL-8-EG-4 | Imperial | 1/2 | Fine | 1/4 | £15.22 £18.26 Inc. VAT |
|
|
| CL-12-EG-8 | Imperial | 3/4 | Fine | 1/2 | £25.44 £30.53 Inc. VAT |
|
|
| CL-10-EG-4 | Imperial | 1/2 | Fine | 1/4 | £19.57 £23.48 Inc. VAT |
|
|
| CL-6-EG-4 | Imperial | 3/8 | Extra Fine | 1/4 | £13.76 £16.51 Inc. VAT |
|
|
| CL-12-EG-4 | Imperial | 3/4 | Fine | 1/4 | £22.02 £26.42 Inc. VAT |
|
|
| CL-8-EG-6 | Imperial | 1/2 | Fine | 3/8 | £16.74 £20.09 Inc. VAT |
|
|
| CL-16-EG-6 | Imperial | 1 | Fine | 3/8 | £32.78 £39.34 Inc. VAT |
|
|
| CL-8-EG-6-EF | Imperial | 1/2 | Extra Fine | 3/8 | £18.25 £21.90 Inc. VAT |
|
|
| CL-16-EG-6-EF | Imperial | 1 | Extra Fine | 3/8 | £35.75 £42.90 Inc. VAT |
|
|
| CL-10-EG-6-EF | Imperial | 1/2 | Extra Fine | 3/8 | £23.46 £28.15 Inc. VAT |
|
|
| CL-6-EG-6-SF | Imperial | 3/8 | Super Fine | 3/8 | £16.64 £19.97 Inc. VAT |
|
|
| CL-12-EG-6-EF | Imperial | 3/4 | Extra Fine | 3/8 | £26.41 £31.69 Inc. VAT |
|
|
| CL-8-EG-8-EF | Imperial | 1/2 | Extra Fine | 1/2 | £20.09 £24.11 Inc. VAT |
|
|
| CL-16-EG-8-EF | Imperial | 1 | Extra Fine | 1/2 | £37.54 £45.05 Inc. VAT |
|
|
| CL-10-EG-8-EF | Imperial | 1/2 | Extra Fine | 1/2 | £25.80 £30.96 Inc. VAT |
|
|
| CL-8-EG-4-EF | Imperial | 1/2 | Extra Fine | 1/4 | £16.61 £19.93 Inc. VAT |
|
|
| CL-12-EG-8-EF | Imperial | 3/4 | Extra Fine | 1/2 | £27.73 £33.28 Inc. VAT |
|
|
| CL-10-EG-4-EF | Imperial | 1/2 | Extra Fine | 1/4 | £21.34 £25.61 Inc. VAT |
|
|
| CL-6-EG-4-SF | Imperial | 3/8 | Super Fine | 1/4 | £15.13 £18.16 Inc. VAT |
|
|
| CL-12-EG-4-EF | Imperial | 3/4 | Extra Fine | 1/4 | £24.00 £28.80 Inc. VAT |
|
Carr Lane Edge Grippers
Edge Grippers are helpful for applications where traditional face-mounted grippers are difficult to install, they have a useful flat profile because the mounting screw is parallel to the serrated face. These serrated grippers are hard, replaceable inserts used to provide additional holding force and/or wear resistance when installed in a fixture. They are designed to slightly penetrate the workpiece to significantly increase gripping force, rather than relying on static friction alone. These are available in serrations including fine, super fine and extra fine.
Options:
- Metric and Imperial sizes available
Serrations
- Extra Fine - .094x90°
- Super Fine - .062x90°
- Fine - .094x90°
