Carr Lane Screw Rest Pads

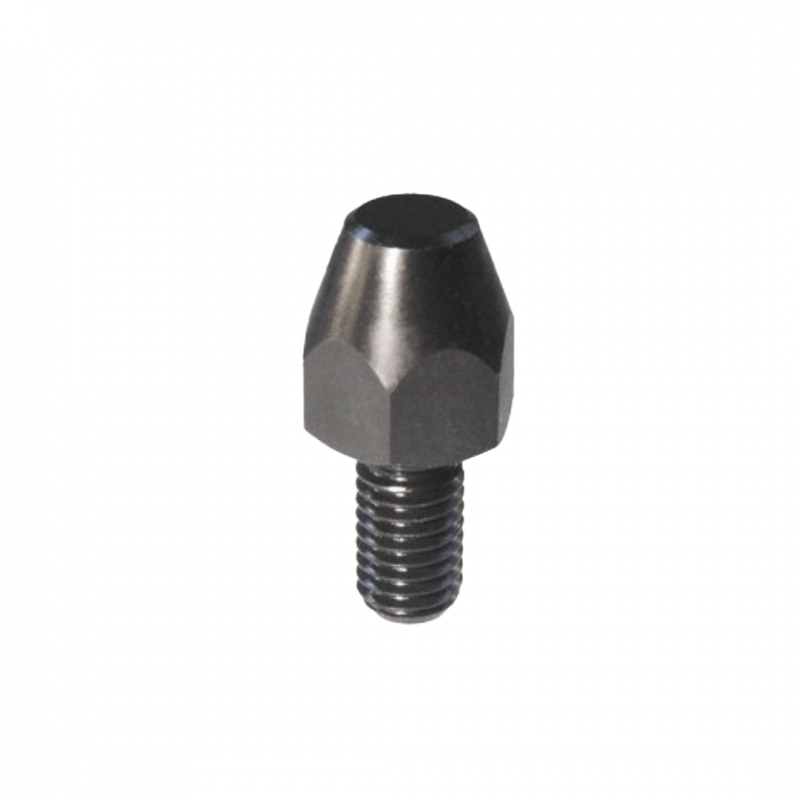

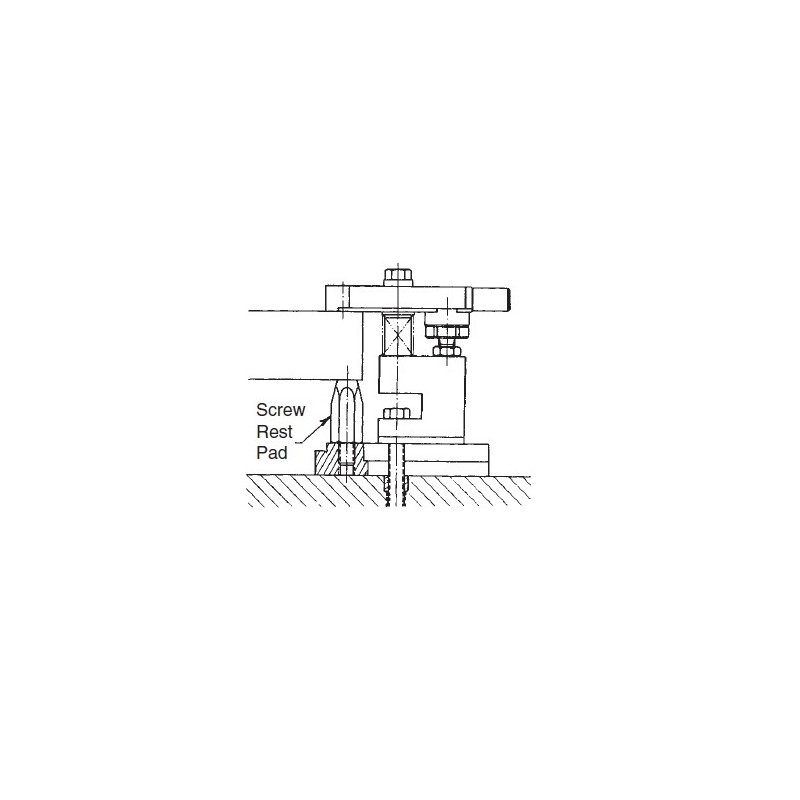

This precision height locator features a threaded shank for easy installation into a tapped hole. Its cone shape offers a minimal contact area while ensuring a large, stable base. Screw Rest Pads are highly versatile, serving as supports, side locator pads, and jig feet. They are available in thread sizes ranging from 5/16-18 to 5/8-11 (M8 to M16 metric) and come in various support heights up to 2" (50mm metric).

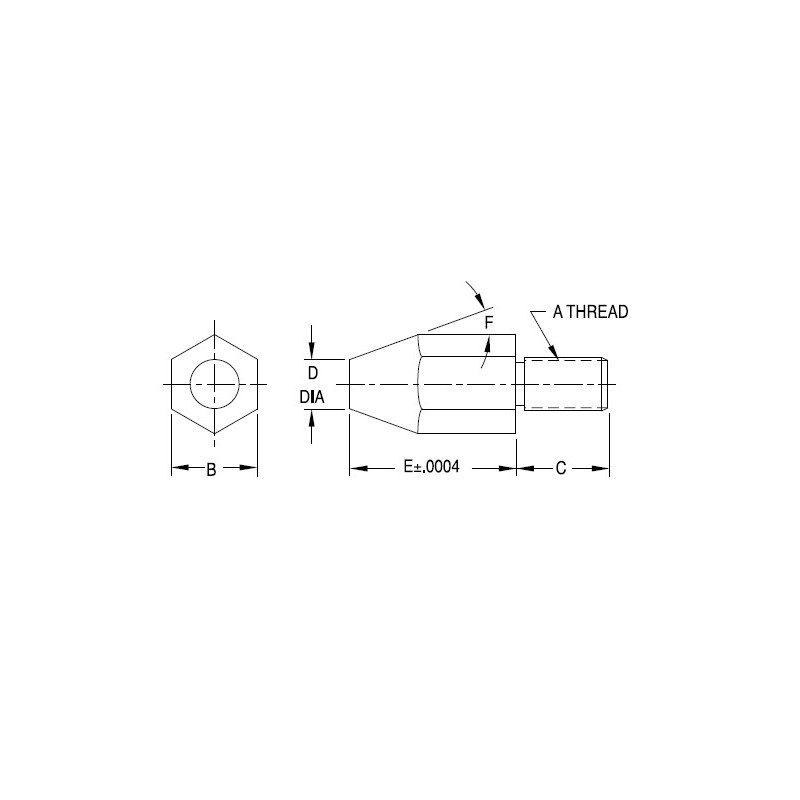

Thread: 5/16-18 - 5/8-11 or M8 - M16
Metric and Imperial sizes
Steel Black Oxide Finish

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

Metric

Imperial

Downloads

Description

Part Number	Metric or Imperial	Thread	Head Length	Price
CL-MF08-4808 CL-MF08-4808	Metric	M8	40mm	£30.06 £36.07 Inc. VAT
CL-MF12-4806 CL-MF12-4806	Metric	M12	30mm	£32.65 £39.18 Inc. VAT
CL-MF08-4803 CL-MF08-4803	Metric	M8	15mm	£24.88 £29.86 Inc. VAT
CL-MF16-4805 CL-MF16-4805	Metric	M16	25mm	£41.45 £49.74 Inc. VAT
CL-MF12-4802 CL-MF12-4802	Metric	M12	10mm	£28.06 £33.67 Inc. VAT
CL-MF12-4810 CL-MF12-4810	Metric	M12	50mm	£34.98 £41.98 Inc. VAT
CL-MF08-4805 CL-MF08-4805	Metric	M8	25mm	£25.86 £31.03 Inc. VAT
CL-MF16-4808 CL-MF16-4808	Metric	M16	40mm	£44.50 £53.40 Inc. VAT
CL-MF12-4804 CL-MF12-4804	Metric	M12	20mm	£29.53 £35.44 Inc. VAT
CL-MF08-4801 CL-MF08-4801	Metric	M8	5mm	£21.49 £25.79 Inc. VAT
CL-MF16-4803 CL-MF16-4803	Metric	M16	15mm	£38.41 £46.09 Inc. VAT
CL-MF08-4802 CL-MF08-4802	Metric	M8	10mm	£22.90 £27.48 Inc. VAT
CL-MF16-4804 CL-MF16-4804	Metric	M16	20mm	£36.43 £43.72 Inc. VAT
CL-MF12-4801 CL-MF12-4801	Metric	M12	5mm	£26.28 £31.54 Inc. VAT
CL-MF12-4808 CL-MF12-4808	Metric	M12	40mm	£33.48 £40.18 Inc. VAT
CL-MF08-4804 CL-MF08-4804	Metric	M8	20mm	£25.09 £30.11 Inc. VAT
CL-MF16-4806 CL-MF16-4806	Metric	M16	30mm	£39.25 £47.10 Inc. VAT
CL-MF12-4803 CL-MF12-4803	Metric	M12	15mm	£29.20 £35.04 Inc. VAT
CL-MF16-4802 CL-MF16-4802	Metric	M16	10mm	£36.74 £44.09 Inc. VAT
CL-MF08-4806 CL-MF08-4806	Metric	M8	30mm	£27.37 £32.84 Inc. VAT
CL-MF16-4810 CL-MF16-4810	Metric	M16	50mm	£44.48 £53.38 Inc. VAT
CL-MF12-4805 CL-MF12-4805	Metric	M12	25mm	£30.88 £37.06 Inc. VAT

Part Number	Metric or Imperial	Thread	Head Length	Price
CL-MF50-4801 CL-MF50-4801	Imperial	5/8-11	1/4	£35.08 £42.10 Inc. VAT
CL-MF25-4806 CL-MF25-4806	Imperial	5/16-18	1-1/4	£28.67 £34.40 Inc. VAT
CL-MF50-4807 CL-MF50-4807	Imperial	5/8-11	1-1/2	£42.98 £51.58 Inc. VAT
CL-MF40-4805 CL-MF40-4805	Imperial	1/2-13	1	£32.34 £38.81 Inc. VAT
CL-MF25-4802 CL-MF25-4802	Imperial	5/16-18	3/8	£25.22 £30.26 Inc. VAT
CL-MF50-4803 CL-MF50-4803	Imperial	5/8-11	1/2	£42.36 £50.83 Inc. VAT
CL-MF40-4801 CL-MF40-4801	Imperial	1/2-13	1/4	£28.78 £34.54 Inc. VAT
CL-MF40-4807 CL-MF40-4807	Imperial	1/2-13	1-1/2	£33.48 £40.18 Inc. VAT
CL-MF25-4804 CL-MF25-4804	Imperial	5/16-18	3/4	£26.28 £31.54 Inc. VAT
CL-MF50-4805 CL-MF50-4805	Imperial	5/8-11	1	£42.60 £51.12 Inc. VAT
CL-MF40-4803 CL-MF40-4803	Imperial	1/2-13	1/2	£30.59 £36.71 Inc. VAT
CL-MF50-4806 CL-MF50-4806	Imperial	5/8-11	1-1/4	£42.77 £51.32 Inc. VAT
CL-MF40-4804 CL-MF40-4804	Imperial	1/2-13	3/4	£28.96 £34.75 Inc. VAT
CL-MF25-4801 CL-MF25-4801	Imperial	5/16-18	1/4	£21.49 £25.79 Inc. VAT
CL-MF50-4802 CL-MF50-4802	Imperial	5/8-11	3/8	£35.76 £42.91 Inc. VAT
CL-MF25-4807 CL-MF25-4807	Imperial	5/16-18	1-1/2	£28.69 £34.43 Inc. VAT
CL-MF50-4808 CL-MF50-4808	Imperial	5/8-11	2	£44.11 £52.93 Inc. VAT
CL-MF40-4806 CL-MF40-4806	Imperial	1/2-13	1-1/4	£33.67 £40.40 Inc. VAT
CL-MF25-4803 CL-MF25-4803	Imperial	5/16-18	1/2	£24.88 £29.86 Inc. VAT
CL-MF50-4804 CL-MF50-4804	Imperial	5/8-11	3/4	£43.27 £51.92 Inc. VAT
CL-MF40-4802 CL-MF40-4802	Imperial	1/2-13	3/8	£28.06 £33.67 Inc. VAT
CL-MF40-4808 CL-MF40-4808	Imperial	1/2-13	2	£34.98 £41.98 Inc. VAT
CL-MF25-4805 CL-MF25-4805	Imperial	5/16-18	1	£28.93 £34.72 Inc. VAT

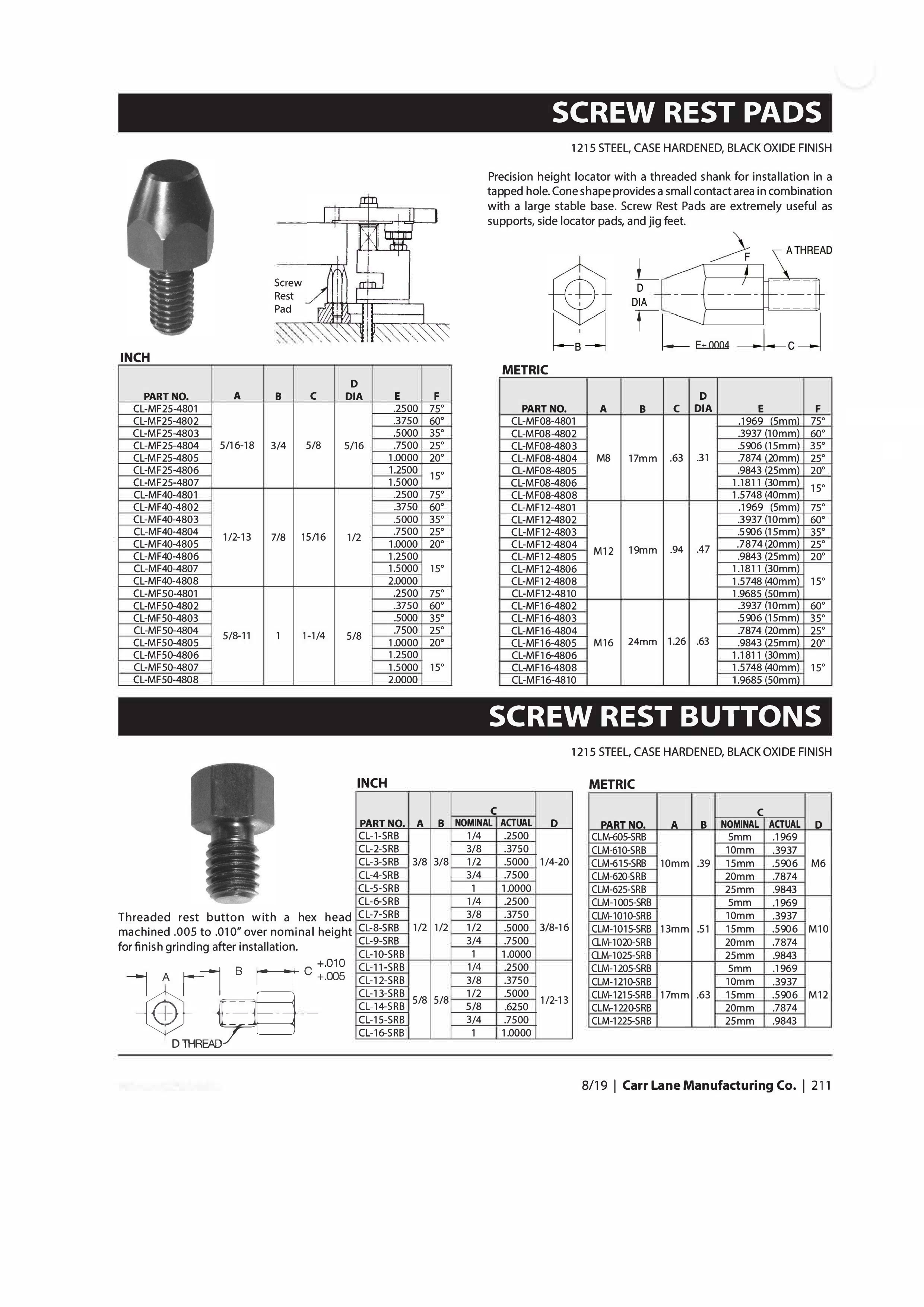

Carr Lane Screw Rest Pads datasheet
