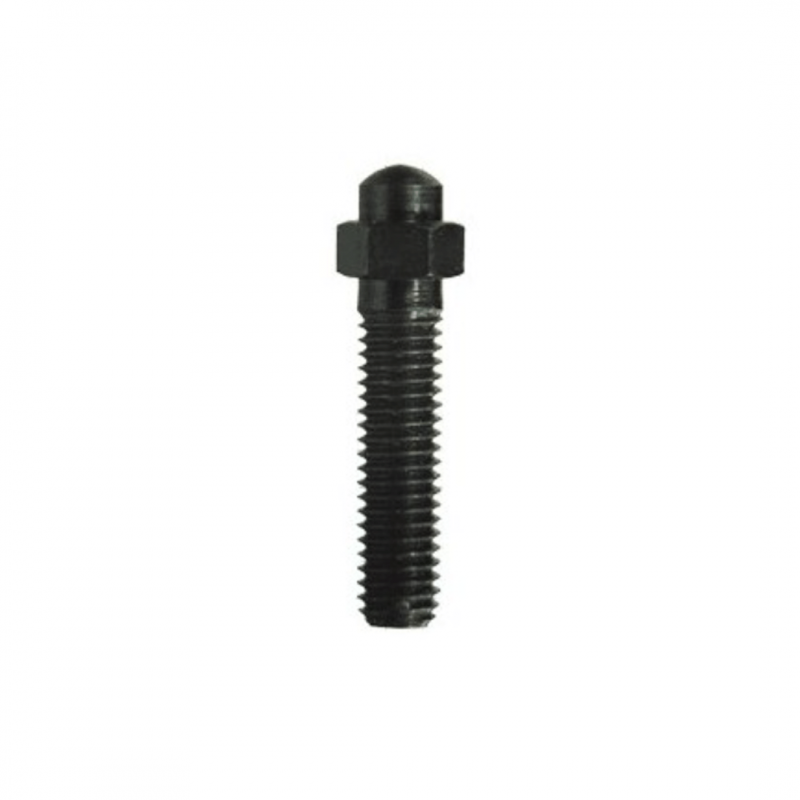

Carr Lane Adjustable Locating Buttons

This support screw is designed with fine threads, allowing for precise and accurate adjustments. This range spans across both metric and imperial sizes. It is available in a range of fine-thread sizes, including #10-32 to 3/4-16, as well as 1/4-20. For metric applications, it is also offered in standard thread sizes ranging from M5 to M16, providing versatility to suit various needs.

Thread: #10-32 - 3/4-16 or M5 - M16
Metric and Imperial sizes
Steel Black Oxide Finish

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

Metric

Imperial

Downloads

Description

Part Number	Metric or Imperial	Length	Head Diameter	Thread	Price
CLM-10-LB CLM-10-LB	Metric	1.97	.39	M10	£10.58 £12.70 Inc. VAT
CLM-8-LB CLM-8-LB	Metric	1.77	.31	M8	£9.72 £11.66 Inc. VAT
CLM-6-LB CLM-6-LB	Metric	1.57	.24	M6	£9.04 £10.85 Inc. VAT
CLM-5-LB CLM-5-LB	Metric	.98	.20	M5	£8.27 £9.92 Inc. VAT
CLM-16-LB CLM-16-LB	Metric	2.95	.63	M16	£16.12 £19.34 Inc. VAT
CLM-12-LB CLM-12-LB	Metric	2.56	.47	M12	£14.87 £17.84 Inc. VAT

Part Number	Metric or Imperial	Length	Head Diameter	Thread	Price
CL-LB-3 CL-LB-3	Imperial	2	3/8	3/8-24	£5.51 £6.61 Inc. VAT
CL-LB-2 CL-LB-2	Imperial	1-1/2	1/4	1/4-28	£5.40 £6.48 Inc. VAT
CL-LB-1 CL-LB-1	Imperial	1	3/16	#10-32	£5.10 £6.12 Inc. VAT
CL-LB-2A CL-LB-2A	Imperial	1-1/2	1/4	1/4-20	£5.40 £6.48 Inc. VAT
CL-LB-7 CL-LB-7	Imperial	1-3/4	5/16	5/16-24	£5.47 £6.56 Inc. VAT
CL-LB-5 CL-LB-5	Imperial	3	5/8	5/8-18	£6.73 £8.08 Inc. VAT
CL-LB-4 CL-LB-4	Imperial	2-1/2	1/2	1/2-20	£6.14 £7.37 Inc. VAT

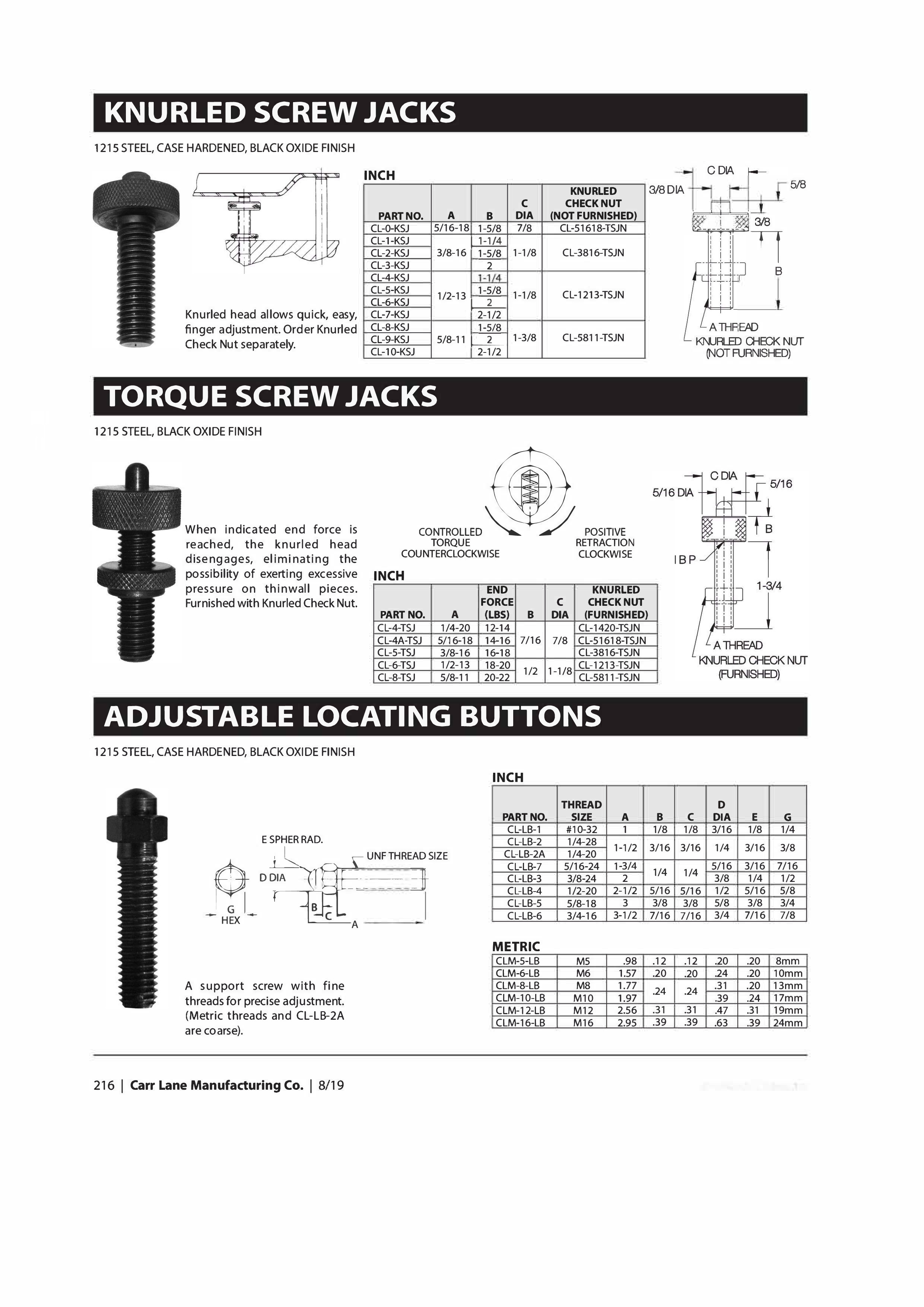

Carr Lane Adjustable Locating Buttons datasheet
