Carr Lane Jig Rest Buttons

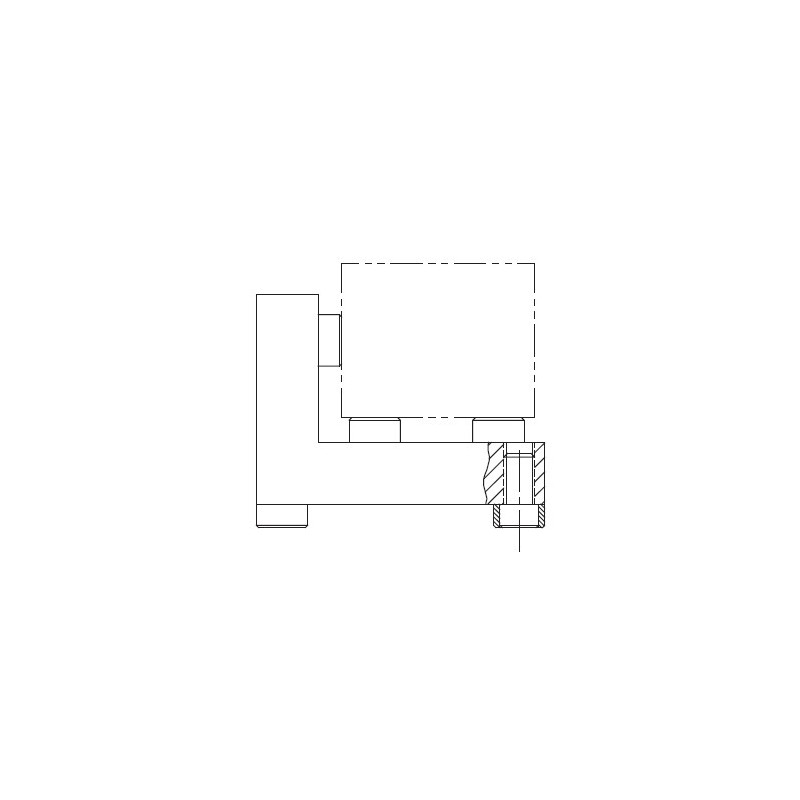

Carr Lane Jig Rest Buttons Diagram

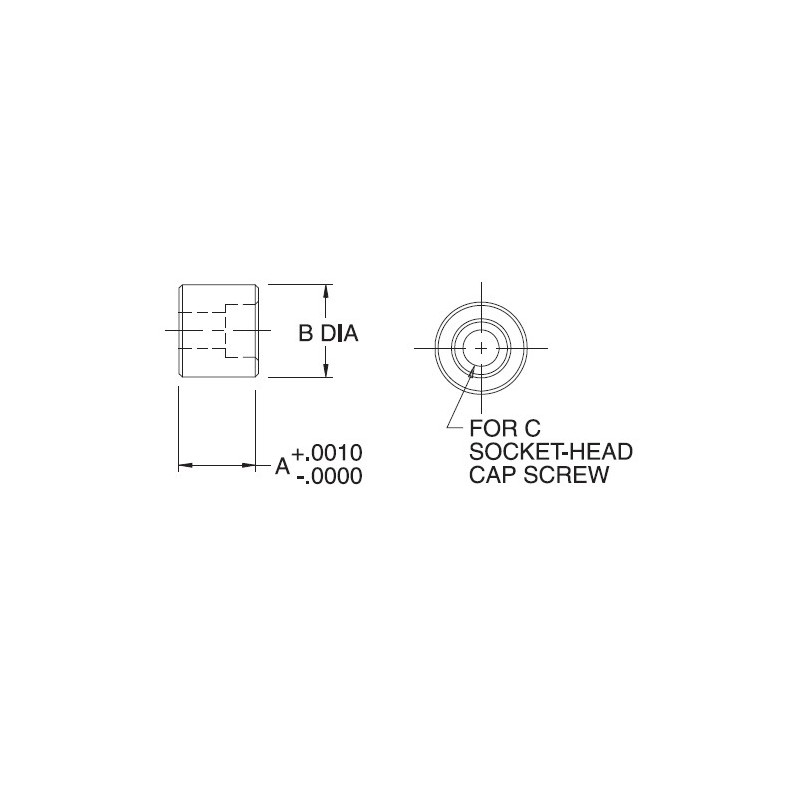

Carr Lane Jig Rest Buttons Drawing
of
Carr Lane Jig Rest Buttons
Carr Lane Jig Rest Buttons Diagram
Carr Lane Jig Rest Buttons Drawing

Carr Lane Jig Rest Buttons

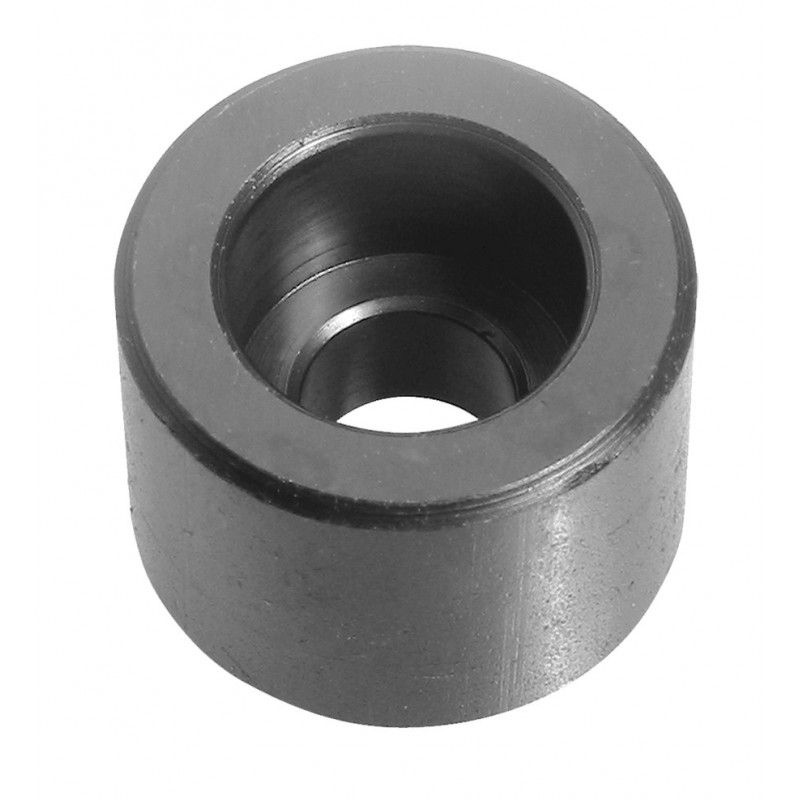

The precision height locator features a counterbored hole for mounting with a socket-head cap screw (sold separately). Jig Rest Buttons are ideal for use as supports, side locator pads, and jig feet. These buttons can also be stacked to reach greater heights. They are available in outside diameters ranging from 1/2 to 1-1/4", with various height options to choose from.

  • Metric and Imperial sizes
  • Steel Black Oxide Finish

Print page

Metric
Imperial
Downloads
Description
Part Number Material Number Metric or Imperial External Diameter Length Internal Diameter Price Add to Parts List
CLM-17A-JRB CLM-17A-JRB Metric 1.26 50mm M10 £19.42
£23.30 Inc. VAT
CLM-7A-JRB CLM-7A-JRB Metric 0.79 20mm M6 £18.10
£21.72 Inc. VAT
CLM-16A-JRB CLM-16A-JRB Metric 1.26 30mm M10 £16.14
£19.37 Inc. VAT
CLM-6A-JRB CLM-6A-JRB Metric 0.79 15mm M6 £7.64
£9.17 Inc. VAT
CLM-15-JRB CLM-15-JRB Metric 1.26 25mm M10 £17.04
£20.45 Inc. VAT
CLM-4-JRB CLM-4-JRB Metric 0.79 10mm M6 £17.04
£20.45 Inc. VAT
CLM-14A-JRB CLM-14A-JRB Metric 1.26 20mm M10 £13.69
£16.43 Inc. VAT
CLM-2A-JRB CLM-2A-JRB Metric 0.63 15mm M5 £7.73
£9.28 Inc. VAT
CLM-13-JRB CLM-13-JRB Metric 0.98 25mm M8 £19.30
£23.16 Inc. VAT
CLM-1-JRB CLM-1-JRB Metric 0.63 10mm M5 £6.26
£7.51 Inc. VAT
CLM-12A-JRB CLM-12A-JRB Metric 0.98 20mm M8 £12.00
£14.40 Inc. VAT
CLM-11A-JRB CLM-11A-JRB Metric 0.98 15mm M8 £10.08
£12.10 Inc. VAT
CLM-8-JRB CLM-8-JRB Metric 0.79 25mm M6 £8.62
£10.34 Inc. VAT
Part Number Material Number Metric or Imperial External Diameter Length Internal Diameter Price Add to Parts List
CL-6-JRB CL-6-JRB Imperial 1-1/4 1 3/8 £8.58
£10.30 Inc. VAT
CL-16-JRB CL-16-JRB Imperial 5/8 1 1/4 £6.40
£7.68 Inc. VAT
CL-21-JRB CL-21-JRB Imperial 1-1/4 3/4 3/8 £9.02
£10.82 Inc. VAT
CL-2-JRB CL-2-JRB Imperial 5/8 3/4 1/4 £4.79
£5.75 Inc. VAT
CL-12-JRB CL-12-JRB Imperial 5/8 1/4 #10 Flathead* £4.13
£4.96 Inc. VAT
CL-25-JRB CL-25-JRB Imperial 1-1/4 1/2 3/8 £8.54
£10.25 Inc. VAT
CL-14-JRB CL-14-JRB Imperial 5/8 5/8 1/4 £4.64
£5.57 Inc. VAT
CL-20-JRB CL-20-JRB Imperial 7/8 1 5/16 £7.72
£9.26 Inc. VAT
CL-1-JRB CL-1-JRB Imperial 5/8 1/2 1/4 £4.24
£5.09 Inc. VAT
CL-0-JRB CL-0-JRB Imperial 1/2 1/2 #10 £4.64
£5.57 Inc. VAT
CL-19-JRB CL-19-JRB Imperial 7/8 3/4 5/16 £6.79
£8.15 Inc. VAT
CL-13-JRB CL-13-JRB Imperial 5/8 3/8 1/4 £4.24
£5.09 Inc. VAT
CL-00-JRB CL-00-JRB Imperial 1/2 3/8 #10 £4.38
£5.26 Inc. VAT
CL-3-JRB CL-3-JRB Imperial 7/8 5/8 5/16 £6.40
£7.68 Inc. VAT
CL-24-JRB CL-24-JRB Imperial 1/2 1/8 #8 Flathead * £4.34
£5.21 Inc. VAT
CL-8-JRB CL-8-JRB Imperial 1-1/4 2 3/8 £14.63
£17.56 Inc. VAT
CL-18-JRB CL-18-JRB Imperial 7/8 1/2 5/16 £6.56
£7.87 Inc. VAT
CL-7-JRB CL-7-JRB Imperial 1-1/4 1-1/2 3/8 £13.10
£15.72 Inc. VAT
CL-17-JRB CL-17-JRB Imperial 7/8 3/8 1/4 £5.82
£6.98 Inc. VAT

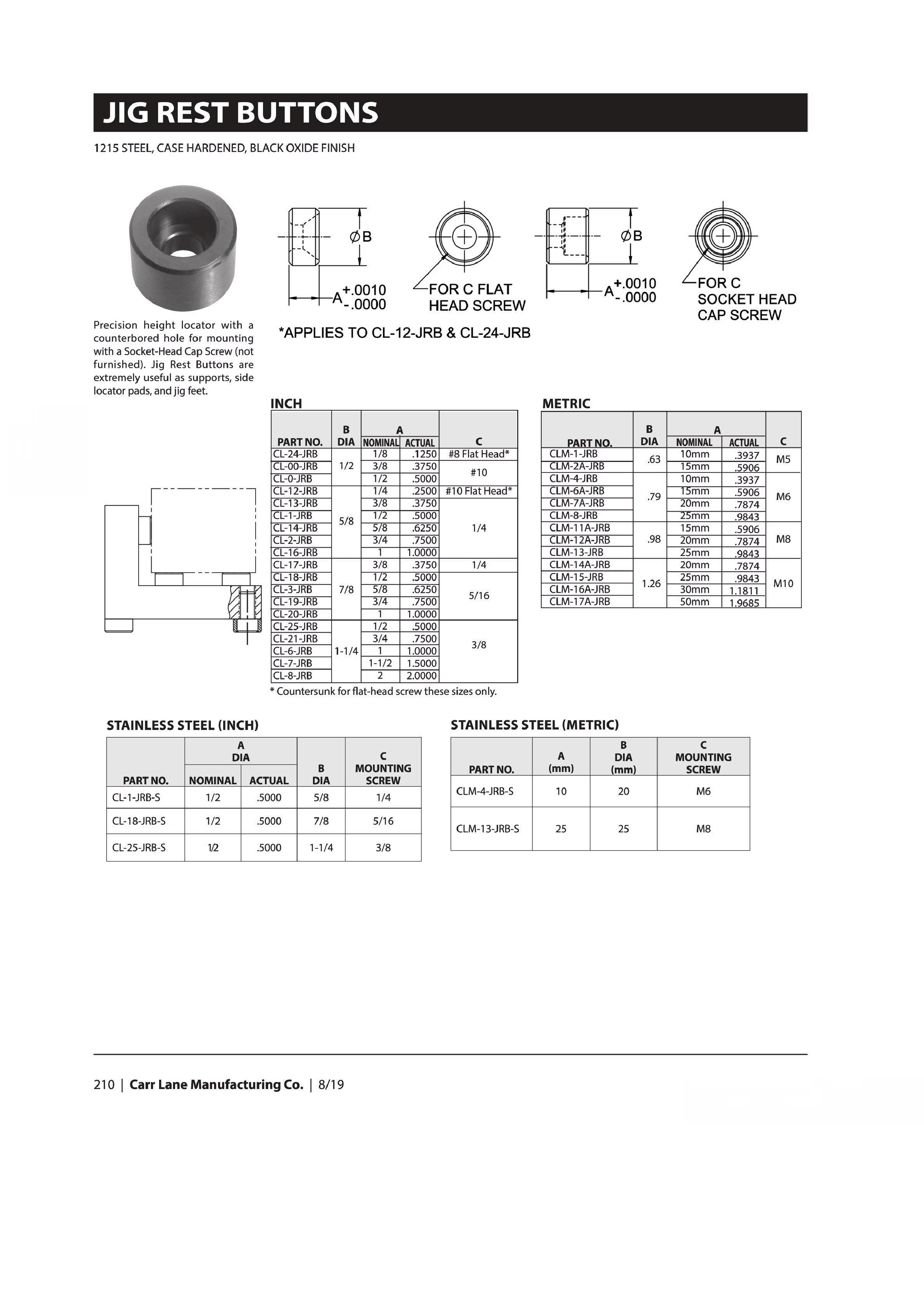

Carr Lane Jig Rest Buttons datasheet

Carr Lane Jig Rest Buttons

The precision height locator features a counterbored hole for mounting with a socket-head cap screw (sold separately). Jig Rest Buttons are ideal for use as supports, side locator pads, and jig feet. These buttons can also be stacked to reach greater heights. They are available in outside diameters ranging from 1/2 to 1-1/4", with various height options to choose from.

Options:

  • Metric and Imperial sizes
  • Steel Black Oxide Finish

* Countersunk for flat-head screw these sizes only.
