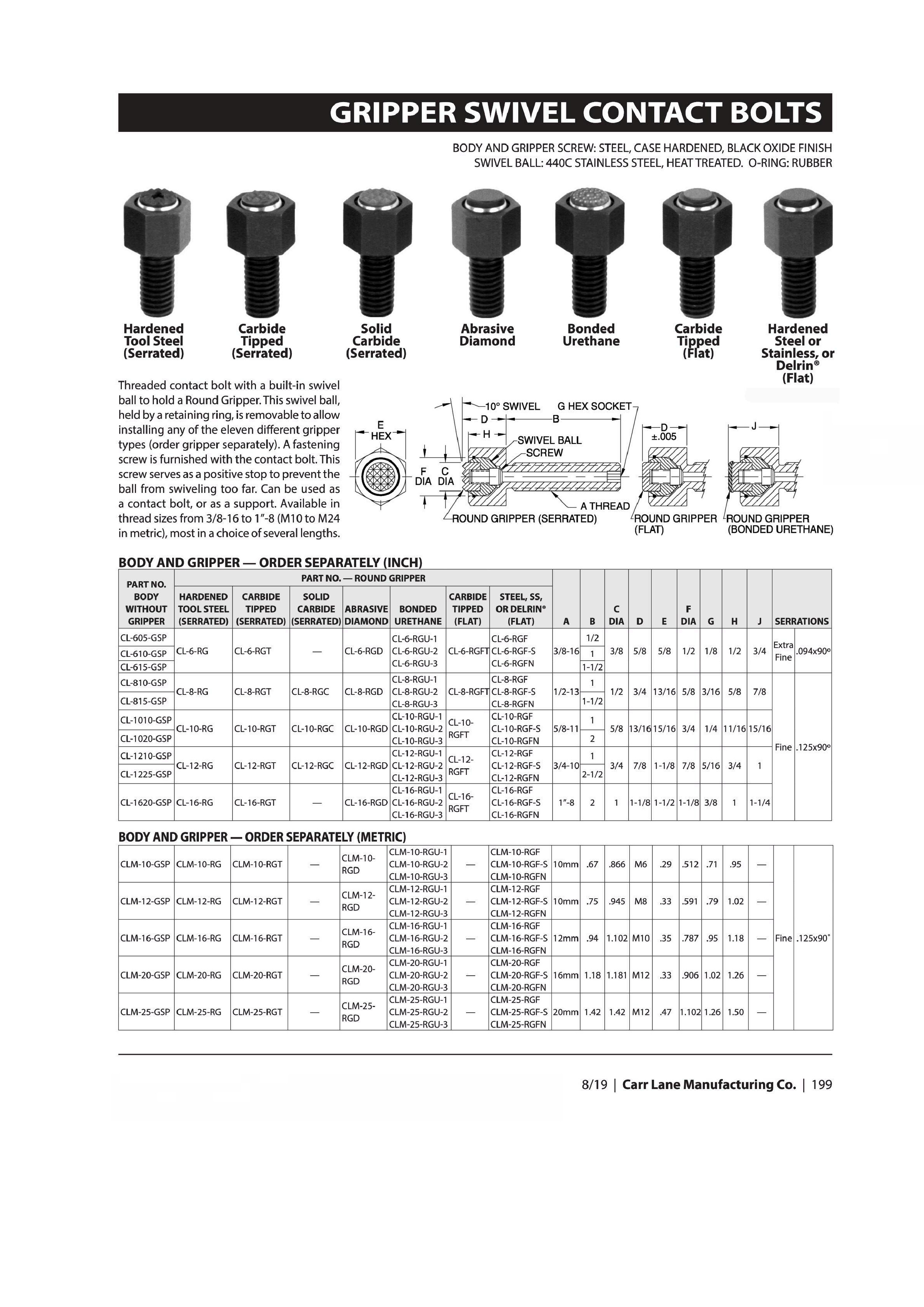

Carr Lane Gripper Swivel Contact Bolts

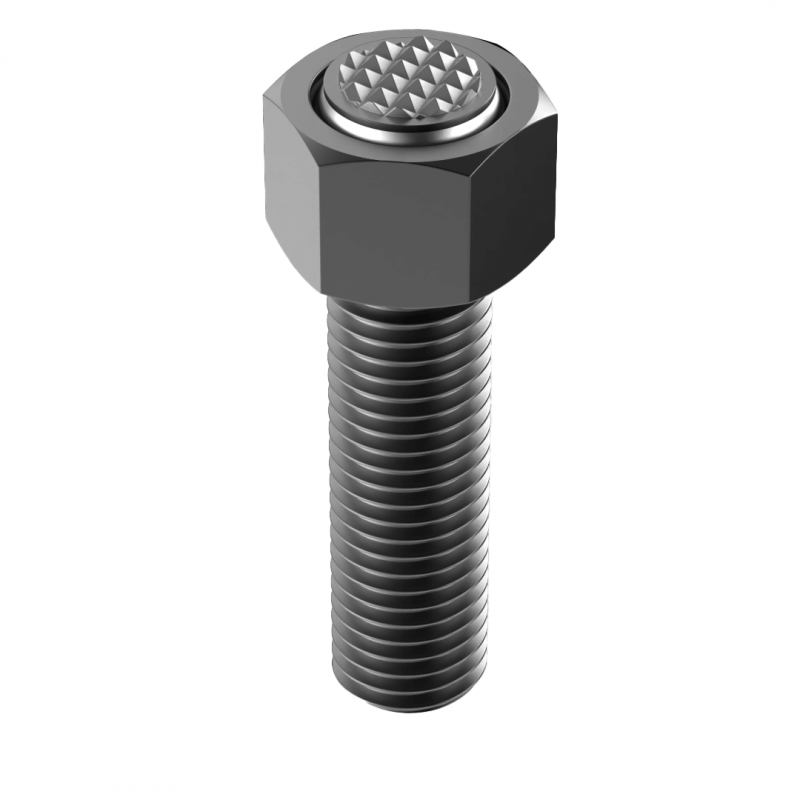

The threaded contact bolt features an integrated swivel ball designed to hold a Round Gripper. This swivel ball, secured by a retaining ring, can be easily removed for the installation of any of the nine available Round Gripper types. The Gripper Swivel Contact Bolts include a fastening screw for the gripper, which also acts as a stop to prevent excessive swivelling of the ball. These bolts can be used both as contact bolts or supports. They come in thread sizes ranging from 3/8-16 to 1"-8 (M10 to M24 in metric), with most sizes available in various lengths. For smaller sizes, refer to the Gripper Swivel Contact Bolts (Mini).
- Metric and Imperial sizes to chose from
- Thread - 3/8-16 - 1"-8 or M10 - M24
- Length - 1/2 - 2 or .59 - 1.57
| Part Number | Material Number | Metric or Imperial | Length | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CLM-1625-GSB | Metric | .98 | M16 | £94.58 £113.50 Inc. VAT |
|
|
| CLM-1650-GSB | Metric | 1.97 | M16 | £97.61 £117.13 Inc. VAT |
|
|
| CLM-2030-GSB | Metric | 1.18 | M20 | £110.55 £132.66 Inc. VAT |
|
|
| CLM-2060-GSB | Metric | 2.36 | M20 | £116.24 £139.49 Inc. VAT |
|
|
| CLM-1015-GSB | Metric | .59 | M10 | £78.15 £93.78 Inc. VAT |
|
|
| CLM-2440-GSB | Metric | 1.57 | M24 | £143.48 £172.18 Inc. VAT |
|
|
| CLM-1303-GSB | Metric | 1.18 | M10 | On Enquiry | ||
| CLM-1220-GSB | Metric | .79 | M12 | £87.38 £104.86 Inc. VAT |
|
|
| CLM-1240-GSB | Metric | 1.57 | M12 | £88.85 £106.62 Inc. VAT |
|
|
| CL-605-GSB | Imperial | 1/2 | 3/8-16 | £78.06 £93.67 Inc. VAT |
|
|
| CL-1225-GSB | Imperial | 2-1/2 | 3/4-10 | £101.84 £122.21 Inc. VAT |
|
|
| CL-610-GSB | Imperial | 1 | 3/8-16 | £73.11 £87.73 Inc. VAT |
|
|
| CL-1620-GSB | Imperial | 2 | 1"-8 | £138.53 £166.24 Inc. VAT |
|
|
| CL-615-GSB | Imperial | 1-1/2 | 3/8-16 | £75.80 £90.96 Inc. VAT |
|
|
| CL-810-GSB | Imperial | 1 | 1/2-13 | £82.83 £99.40 Inc. VAT |
|
|
| CL-815-GSB | Imperial | 1-1/2 | 1/2-13 | £84.27 £101.12 Inc. VAT |
|
|
| CL-1010-GSB | Imperial | 1 | 5/8-11 | £84.36 £101.23 Inc. VAT |
|
|
| CL-1020-GSB | Imperial | 2 | 5/8-11 | £89.45 £107.34 Inc. VAT |
|
|
| CL-1210-GSB | Imperial | 1 | 3/4-10 | £94.61 £113.53 Inc. VAT |
|
Carr Lane Gripper Swivel Contact Bolts
The threaded contact bolt features an integrated swivel ball designed to hold a Round Gripper. This swivel ball, secured by a retaining ring, can be easily removed for the installation of any of the nine available Round Gripper types. The Gripper Swivel Contact Bolts include a fastening screw for the gripper, which also acts as a stop to prevent excessive swivelling of the ball. These bolts can be used both as contact bolts or supports. They come in thread sizes ranging from 3/8-16 to 1"-8 (M10 to M24 in metric), with most sizes available in various lengths. For smaller sizes, refer to the Gripper Swivel Contact Bolts (Mini).
Options:
- Metric and Imperial sizes to chose from
- Thread - 3/8-16 - 1"-8 or M10 - M24
- Length - 1/2 - 2 or .59 - 1.57
