Mini Swing Clamps with Sturdy Swing Mechanism

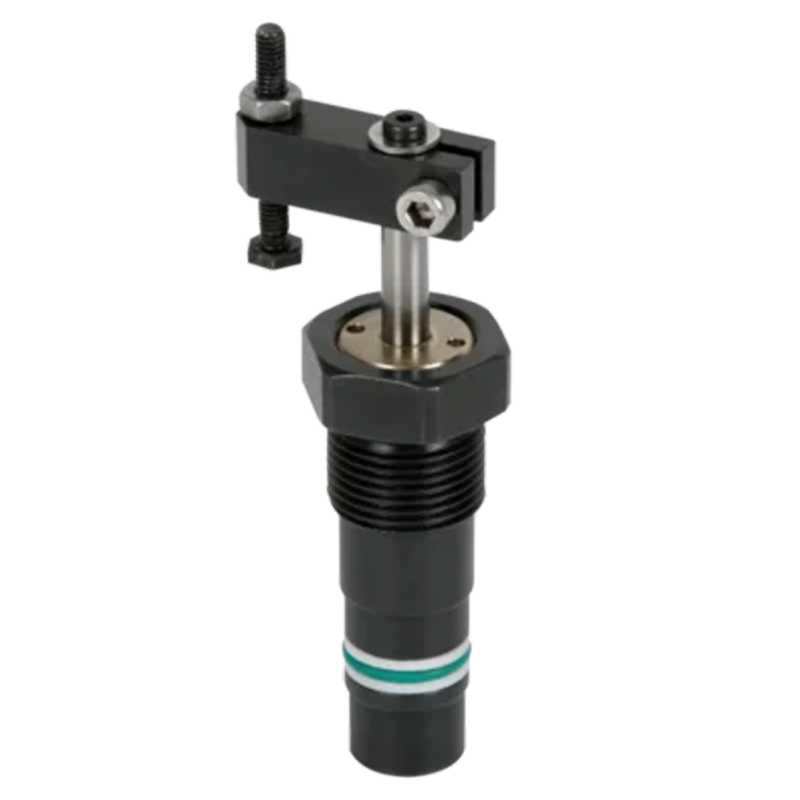

ROEMHELD B1.848 Mini Swing Clamps with Sturdy Swing Mechanism: threaded-body type, double acting

  • Maximum operating pressure 150 bar
  • Maximum clamping force: 0.6 kN
  • Rod diameter: 6 mm
  • Piston diameter: 10 mm
  • Clamping stroke: 6 mm

This double-acting mini swing clamp works as pull-type cylinder where a part of the total stroke is used to swing the piston. The clamping arms are locked on the piston rod. A safety screw avoids axial displacement.

Print page

Products
Downloads
Description
Part Number Material Number Clamping Stroke (mm) Swing Stroke (mm) Swing Angle Swing Direction Price Add to Parts List
1848-115 1848-115 8 10 90 degrees Clockwise £408.73
£490.48 Inc. VAT
1848-105 1848-105 8 10 0 degrees n/a £408.73
£490.48 Inc. VAT
1848-135 1848-135 8 10 60 degrees Clockwise £408.73
£490.48 Inc. VAT
1848-155 1848-155 8 10 45 degrees Clockwise £408.73
£490.48 Inc. VAT
1848-165 1848-165 8 10 45 degrees CounterClockwise £408.73
£490.48 Inc. VAT
1848-125 1848-125 8 10 90 degrees CounterClockwise £408.73
£490.48 Inc. VAT
1848-145 1848-145 8 10 60 degrees CounterClockwise £408.73
£490.48 Inc. VAT

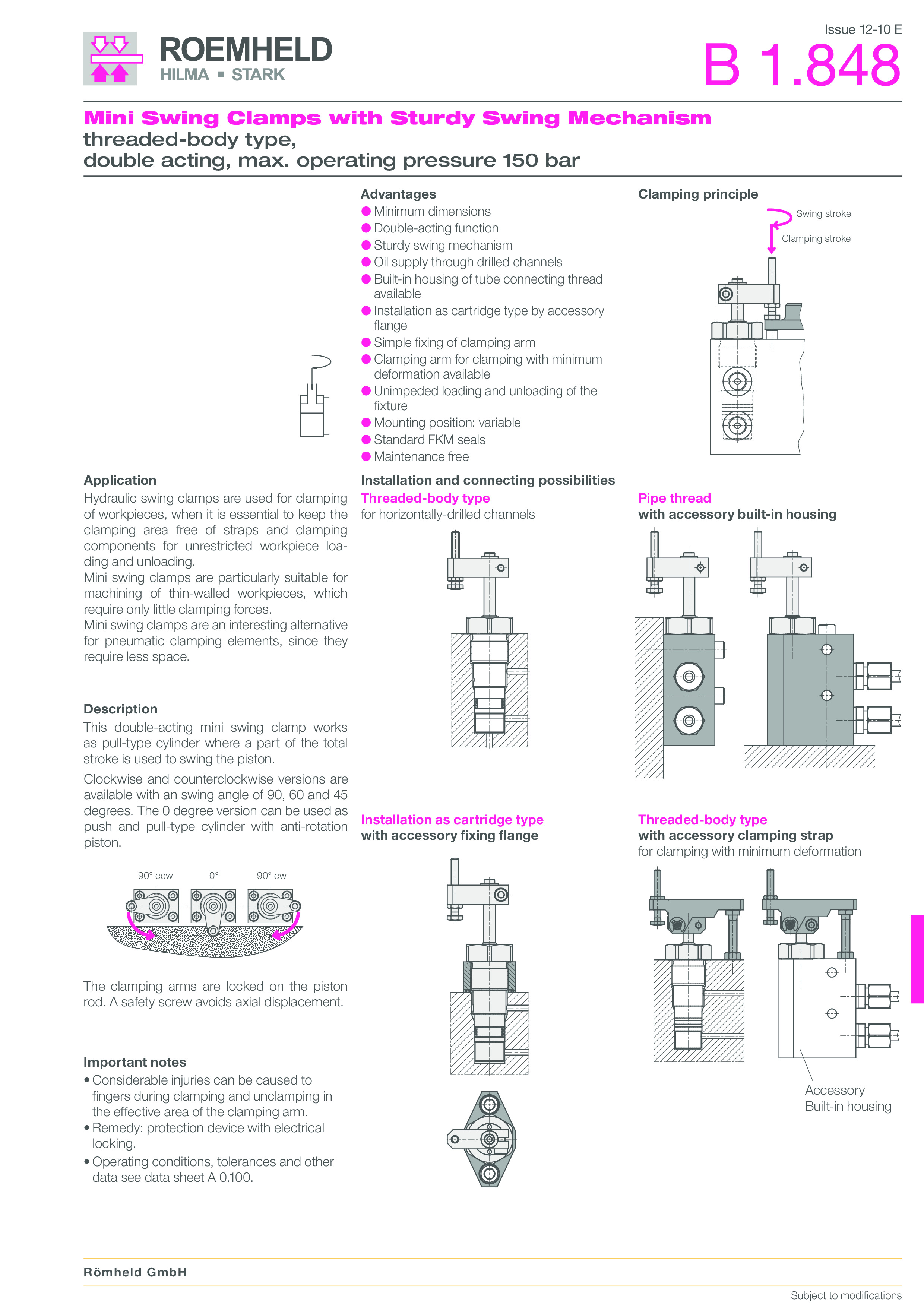

B1848
A0100

Mini Swing Clamps with Sturdy Swing Mechanism - ROEMHELD B1.848

  • Max. operating pressure 150 bar
  • Max. clamping force: 0.6 kN
  • Rod diameter: 6 mm
  • Piston diameter: 10 mm
  • Clamping stroke: 6 mm

Advantages:

  • Minimum dimensions
  • Double-acting function
  • Sturdy swing mechanism
  • Oil supply through drilled channels
  • Built-in housing of tube connecting thread available
  • Installation as cartridge type by accessory flange
  • Simple fixing of clamping arm
  • Clamping arm for clamping with minimum deformation available
  • Unimpeded loading and unloading of the fixture
  • Mounting position: variable
  • Standard FKM seals
  • Maintenance free

Application:

Hydraulic swing clamps are used for clamping of workpieces, when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading. Mini swing clamps are particularly suitable for machining of thin-walled workpieces, which require only little clamping forces. Mini swing clamps are an interesting alternative for pneumatic clamping elements, since they require less space.

Description:

This double-acting mini swing clamp works as pull-type cylinder where a part of the total stroke is used to swing the piston. The clamping arms are locked on the piston rod. A safety screw avoids axial displacement.
