Compact Swing Clamps

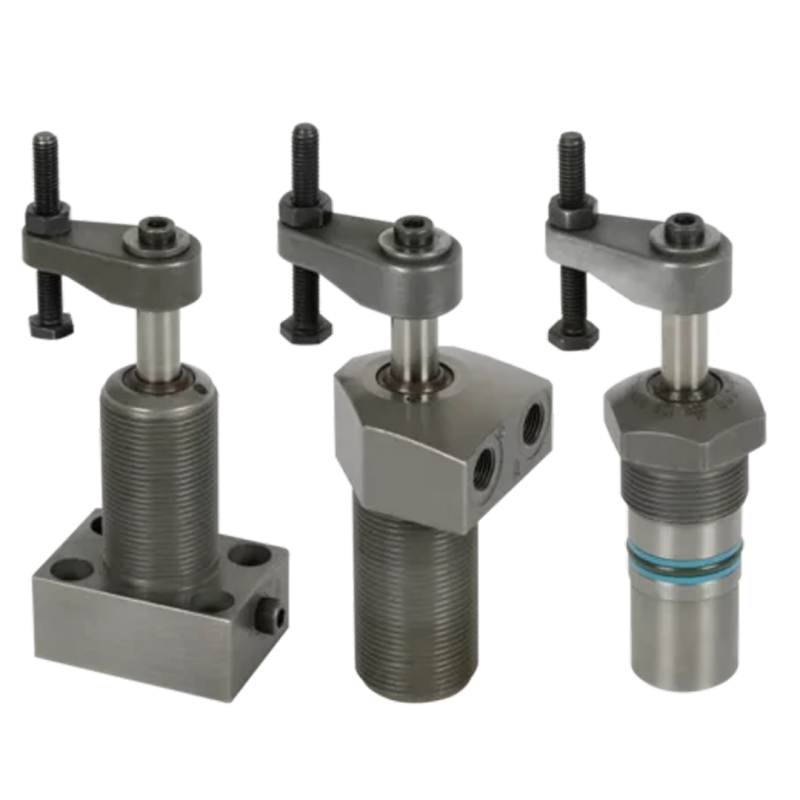

ROEMHELD B1.849 Compact Swing Clamps: bottom flange, top flange, threaded-body type, single acting

  • Maximum operating pressure 350 bar
  • Maximum clamping force: 2.2 kN
  • Rod diameter: 10 mm
  • Piston diameter: 14 mm
  • Clamping stroke: 6 mm
  • Maximum flow rate: 2.5 cm³/s

ROEMHELD Compact Single-Acting Hydraulic Swing Clamps, threaded-body type with top and bottom flange used for clamping of workpieces when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading.

Print page

Products
Downloads
Description
Part Number Material Number Type Swing Angle Swing Direction Price Add to Parts List
1849-001 1849-001 Flange at the bottom 0 degrees n/a £496.32
£595.58 Inc. VAT
1849-011 1849-011 Flange at the bottom 90 degrees Clockwise £479.07
£574.88 Inc. VAT
1849-021 1849-021 Flange at the bottom 90 degrees CounterClockwise £479.07
£574.88 Inc. VAT
1849-031 1849-031 Flange at the bottom 60 degrees Clockwise £496.32
£595.58 Inc. VAT
1849-041 1849-041 Flange at the bottom 60 degrees CounterClockwise £496.32
£595.58 Inc. VAT
1849-051 1849-051 Flange at the bottom 45 degrees Clockwise £496.32
£595.58 Inc. VAT
1849-061 1849-061 Flange at the bottom 45 degrees CounterClockwise £496.32
£595.58 Inc. VAT
1849-002 1849-002 Flange at the bottom with O-ring sealing 0 degrees n/a £479.07
£574.88 Inc. VAT
1849-012 1849-012 Flange at the bottom with O-ring sealing 90 degrees Clockwise £479.07
£574.88 Inc. VAT
1849-022 1849-022 Flange at the bottom with O-ring sealing 90 degrees CounterClockwise £479.07
£574.88 Inc. VAT
1849-032 1849-032 Flange at the bottom with O-ring sealing 60 degrees Clockwise £496.32
£595.58 Inc. VAT
1849-042 1849-042 Flange at the bottom with O-ring sealing 60 degrees CounterClockwise £496.32
£595.58 Inc. VAT
1849-052 1849-052 Flange at the bottom with O-ring sealing 45 degrees Clockwise £496.32
£595.58 Inc. VAT
1849-062 1849-062 Flange at the bottom with O-ring sealing 45 degrees CounterClockwise £496.32
£595.58 Inc. VAT
1849-013 1849-013 Flange at the top 90 degrees Clockwise £497.65
£597.17 Inc. VAT
1849-023 1849-023 Flange at the top 90 degrees CounterClockwise £497.65
£597.17 Inc. VAT
1849-033 1849-033 Flange at the top 60 degrees Clockwise £516.22
£619.47 Inc. VAT
1849-043 1849-043 Flange at the top 60 degrees CounterClockwise £516.22
£619.47 Inc. VAT
1849-053 1849-053 Flange at the top 45 degrees Clockwise £516.22
£619.47 Inc. VAT
1849-063 1849-063 Flange at the top 45 degrees CounterClockwise £516.22
£619.47 Inc. VAT
1849-003 1849-003 Flange at the top 0 degrees n/a £497.65
£597.17 Inc. VAT
1849-024 1849-024 Flange at the top with O-ring sealing 90 degrees CounterClockwise £461.81
£554.18 Inc. VAT
1849-034 1849-034 Flange at the top with O-ring sealing 60 degrees Clockwise £481.72
£578.06 Inc. VAT
1849-044 1849-044 Flange at the top with O-ring sealing 60 degrees CounterClockwise £481.72
£578.06 Inc. VAT
1849-054 1849-054 Flange at the top with O-ring sealing 45 degrees Clockwise £481.72
£578.06 Inc. VAT
1849-064 1849-064 Flange at the top with O-ring sealing 45 degrees CounterClockwise £481.72
£578.06 Inc. VAT
1849-004 1849-004 Flange at the top with O-ring sealing 0 degrees n/a £461.81
£554.18 Inc. VAT
1849-014 1849-014 Flange at the top with O-ring sealing 90 degrees Clockwise £461.81
£554.18 Inc. VAT
1849-035 1849-035 Threaded-body type 60 degrees Clockwise £414.04
£496.85 Inc. VAT
1849-045 1849-045 Threaded-body type 60 degrees CounterClockwise £414.04
£496.85 Inc. VAT
1849-055 1849-055 Threaded-body type 45 degrees Clockwise £414.04
£496.85 Inc. VAT
1849-065 1849-065 Threaded-body type 45 degrees CounterClockwise £414.04
£496.85 Inc. VAT
1849-005 1849-005 Threaded-body type 0 degrees n/a £395.46
£474.55 Inc. VAT
1849-015 1849-015 Threaded-body type 90 degrees Clockwise £395.46
£474.55 Inc. VAT
1849-025 1849-025 Threaded-body type 90 degrees CounterClockwise £395.46
£474.55 Inc. VAT

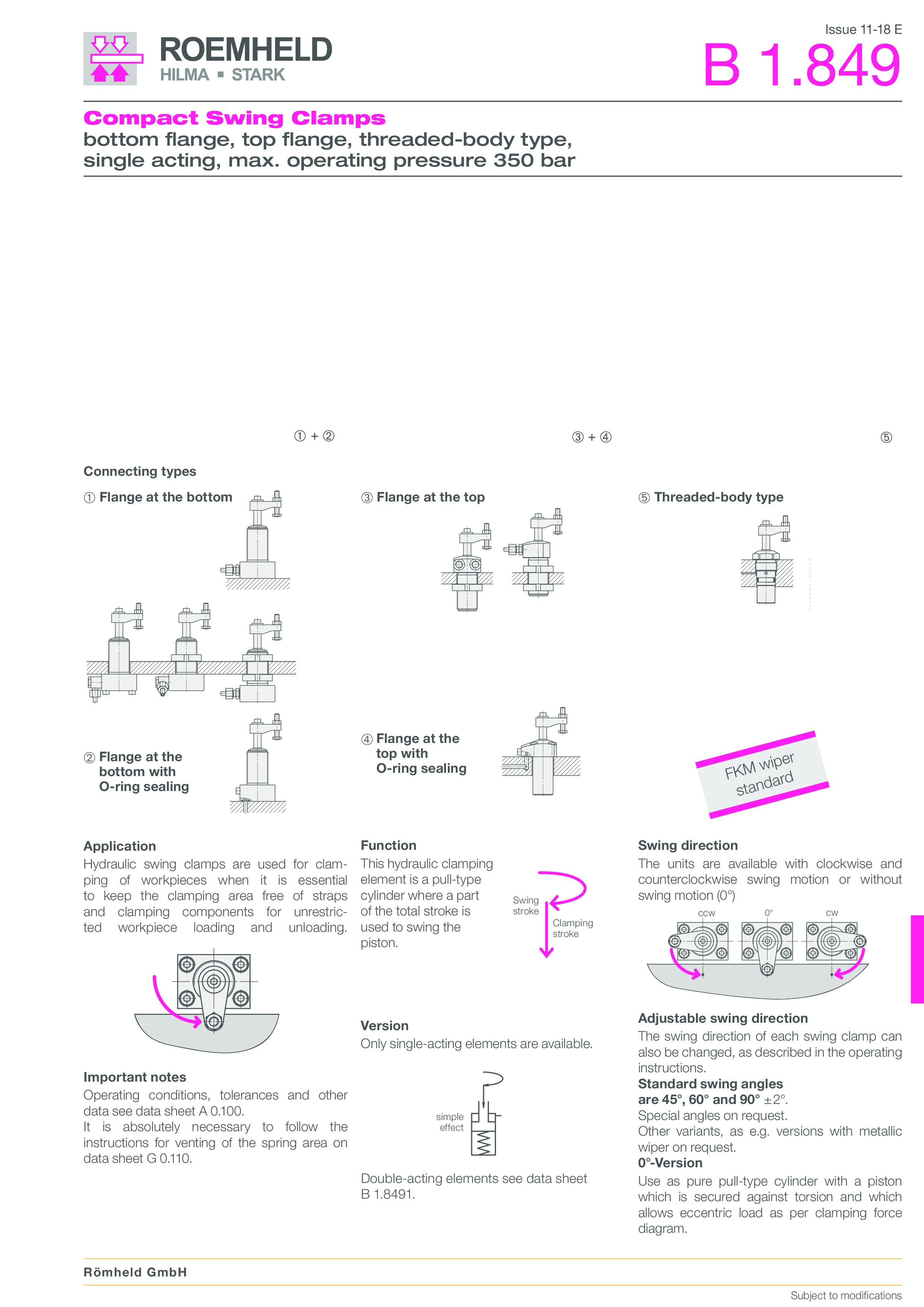

B1849
B18491
A0100
B1849_en_1210

Compact Swing Clamps - ROEMHELD B1.849

  • Max. operating pressure 350 bar
  • Max. clamping force: 2.2 kN
  • Rod diameter: 10 mm
  • Piston diameter: 14 mm
  • Clamping stroke: 6 mm
  • Max. flow rate: 2.5 cm³/s

Application:

Hydraulic swing clamps are used for clamping of workpieces when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading.

Description:

ROEMHELD Compact Single-Acting Hydraulic Swing Clamps, threaded-body type with top and bottom flange [B1.849] used for clamping of workpieces when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading.
