Compact Swing Clamps with Sturdy Swing Mechanism

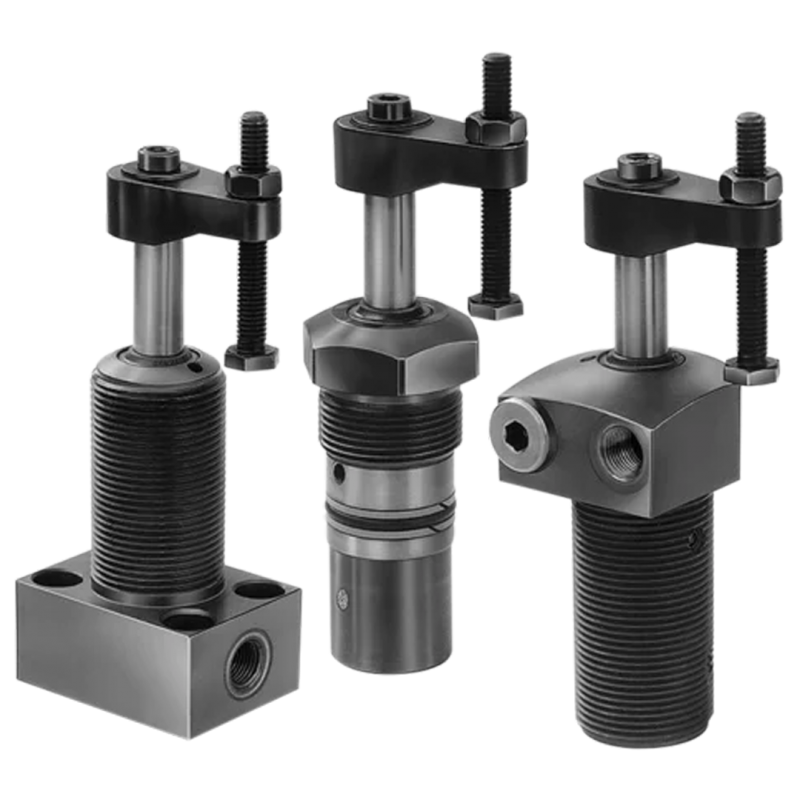

ROEMHELD B1.8491 Compact Swing Clamps with Sturdy Swing Mechanism: bottom flange, top flange, threaded-body type, double acting
- Maximum operating pressure 350 bar
- Maximum clamping force: 2.2 kN
- Rod diameter: 10 mm
- Piston diameter: 14 mm
- Clamping stroke: 8 mm
- Maximum flow rate: 5 cm³/s
ROEMHELD Compact Hydraulic Swing Clamps with Sturdy Swing Mechanism used for clamping of workpieces when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading.
Products
Downloads
Description
| Part Number | Material Number | Type | Swing Angle | Swing Direction | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| 1850-161 | Flange at the bottom | 45 degrees | CounterClockwise | £502.95 £603.54 Inc. VAT |
|
|
| 1850-101 | Flange at the bottom | 0 degrees | n/a | £502.95 £603.54 Inc. VAT |
|
|
| 1850-111 | Flange at the bottom | 90 degrees | Clockwise | £484.37 £581.25 Inc. VAT |
|
|
| 1850-121 | Flange at the bottom | 90 degrees | CounterClockwise | £484.37 £581.25 Inc. VAT |
|
|
| 1850-131 | Flange at the bottom | 60 degrees | Clockwise | £502.95 £603.54 Inc. VAT |
|
|
| 1850-141 | Flange at the bottom | 60 degrees | CounterClockwise | £502.95 £603.54 Inc. VAT |
|
|
| 1850-151 | Flange at the bottom | 45 degrees | Clockwise | £502.95 £603.54 Inc. VAT |
|
|
| 1850-102 | Flange at the bottom with O-ring sealing | 0 degrees | n/a | £502.95 £603.54 Inc. VAT |
|
|
| 1850-112 | Flange at the bottom with O-ring sealing | 90 degrees | Clockwise | £484.37 £581.25 Inc. VAT |
|
|
| 1850-122 | Flange at the bottom with O-ring sealing | 90 degrees | CounterClockwise | £484.37 £581.25 Inc. VAT |
|
|
| 1850-132 | Flange at the bottom with O-ring sealing | 60 degrees | Clockwise | £502.95 £603.54 Inc. VAT |
|
|
| 1850-142 | Flange at the bottom with O-ring sealing | 60 degrees | CounterClockwise | £502.95 £603.54 Inc. VAT |
|
|
| 1850-152 | Flange at the bottom with O-ring sealing | 45 degrees | Clockwise | £502.95 £603.54 Inc. VAT |
|
|
| 1850-162 | Flange at the bottom with O-ring sealing | 45 degrees | CounterClockwise | £502.95 £603.54 Inc. VAT |
|
|
| 1850-103 | Flange at the top | 0 degrees | n/a | £521.53 £625.84 Inc. VAT |
|
|
| 1850-113 | Flange at the top | 90 degrees | Clockwise | £502.95 £603.54 Inc. VAT |
|
|
| 1850-123 | Flange at the top | 90 degrees | CounterClockwise | £502.95 £603.54 Inc. VAT |
|
|
| 1850-133 | Flange at the top | 60 degrees | Clockwise | £521.53 £625.84 Inc. VAT |
|
|
| 1850-143 | Flange at the top | 60 degrees | CounterClockwise | £521.53 £625.84 Inc. VAT |
|
|
| 1850-153 | Flange at the top | 45 degrees | Clockwise | £521.53 £625.84 Inc. VAT |
|
|
| 1850-163 | Flange at the top | 45 degrees | CounterClockwise | £521.53 £625.84 Inc. VAT |
|
|
| 1850-114 | Flange at the top with O-ring sealing | 90 degrees | Clockwise | £502.95 £603.54 Inc. VAT |
|
|
| 1850-124 | Flange at the top with O-ring sealing | 90 degrees | CounterClockwise | £502.95 £603.54 Inc. VAT |
|
|
| 1850-134 | Flange at the top with O-ring sealing | 60 degrees | Clockwise | £521.53 £625.84 Inc. VAT |
|
|
| 1850-144 | Flange at the top with O-ring sealing | 60 degrees | CounterClockwise | £521.53 £625.84 Inc. VAT |
|
|
| 1850-154 | Flange at the top with O-ring sealing | 45 degrees | Clockwise | £521.53 £625.84 Inc. VAT |
|
|
| 1850-164 | Flange at the top with O-ring sealing | 45 degrees | CounterClockwise | £521.53 £625.84 Inc. VAT |
|
|
| 1850-104 | Flange at the top with O-ring sealing | 0 degrees | n/a | £521.53 £625.84 Inc. VAT |
|
|
| 1850-125 | Threaded-body type | 90 degrees | CounterClockwise | £403.42 £484.11 Inc. VAT |
|
|
| 1850-135 | Threaded-body type | 60 degrees | Clockwise | £420.68 £504.81 Inc. VAT |
|
|
| 1850-145 | Threaded-body type | 60 degrees | CounterClockwise | £420.68 £504.81 Inc. VAT |
|
|
| 1850-155 | Threaded-body type | 45 degrees | Clockwise | £420.68 £504.81 Inc. VAT |
|
|
| 1850-165 | Threaded-body type | 45 degrees | CounterClockwise | £420.68 £504.81 Inc. VAT |
|
|
| 1850-105 | Threaded-body type | 0 degrees | n/a | £420.68 £504.81 Inc. VAT |
|
|
| 1850-115 | Threaded-body type | 90 degrees | Clockwise | £403.42 £484.11 Inc. VAT |
|
Compact Swing Clamps with Sturdy Swing Mechanism - ROEMHELD B1.8491
- Max. clamping force: 2.2 kN
- Rod diameter: 10 mm
- Piston diameter: 14 mm
- Clamping stroke: 8 mm
- Max. flow rate: 5 cm³/s
Application:
Hydraulic swing clamps are used for clamping of workpieces when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading.
Description:
ROEMHELD Compact Hydraulic Swing Clamps with Sturdy Swing Mechanism [B1.8491] used for clamping of workpieces when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading.
