Threaded Body Swing Clamps for Restricted Areas

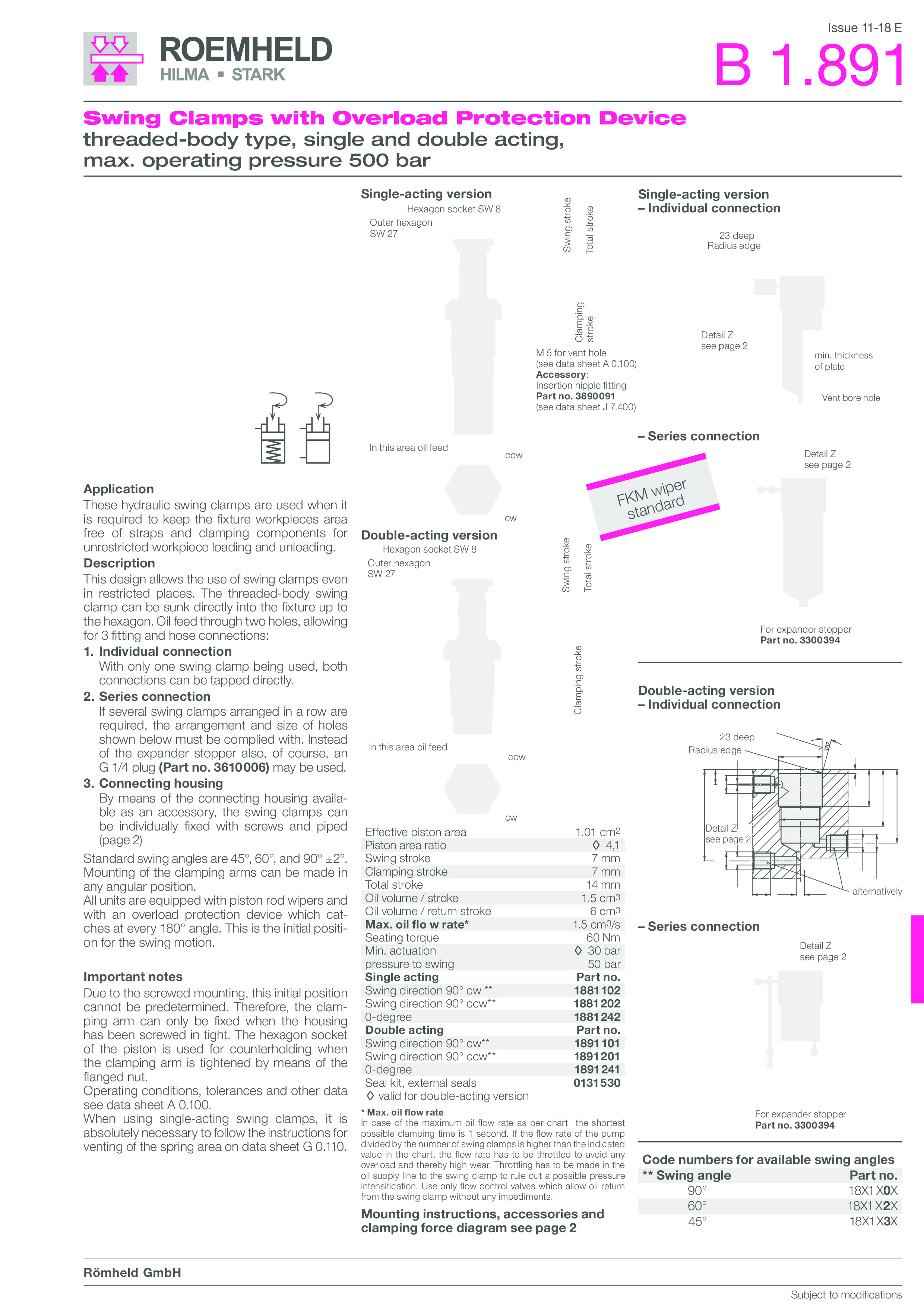

ROMEHELD B1.891 Swing Clamps with Overload Protection Device: threaded-body type, single and double acting
- Maximum operating pressure 500 bar
- Maximum clamping force: 4.0 kN
- Rod diameter: 20 mm
- Piston diameter: 23 mm
- Clamping stroke: 7 mm
- Maximum flow rate: 1.5 cm³/s
This design allows the use of swing clamps even in restricted places. The threaded-body swing clamp can be sunk directly into the fixture up to the hexagon. Oil feed through two holes, allowing for 3 fitting and hose connections (see below for options).
Threaded Body Swing Clamps - ROMEHELD B1.891
- Max. operating pressure 500 bar
- Max. clamping force: 4.0 kN
- Rod diameter: 20 mm
- Piston diameter: 23 mm
- Clamping stroke: 7 mm
- Max. flow rate: 1.5 cm³/s
Application:
These hydraulic swing clamps are used when it is required to keep the fixture workpieces area free of straps and clamping components for unrestricted workpiece loading and unloading.
Description:
This design allows the use of swing clamps even in restricted places. The threaded-body swing clamp can be sunk directly into the fixture up to the hexagon. Oil feed through two holes, allowing for 3 fitting and hose connections:
- Individual connection:
With only one swing clamp being used, both connections can be tapped directly. - Series connection:
If several swing clamps arranged in a row are required, the arrangement and size of holes shown below must be complied with. Instead of the expander stopper also, of course, an G 1/4 plug (Part no. 3610-006) may be used.
