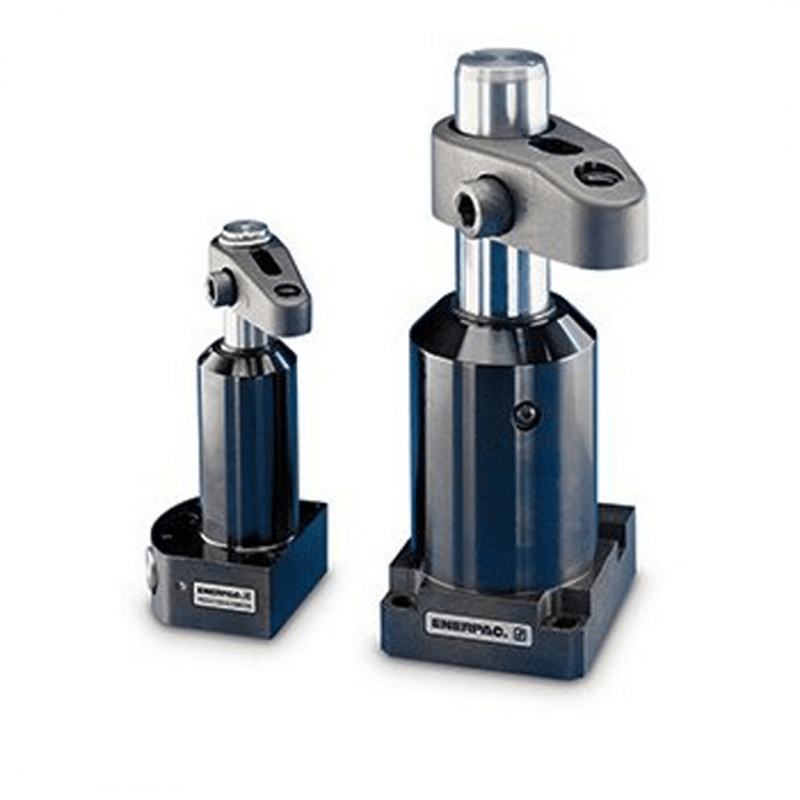

Enerpac SL-Series Lower Flange Models Swing Cylinders

Enerpac SL-Series Lower Flange Models Swing Cylinders

• Force: 2,1 - 33,8 kN
• Stroke: 16,5 - 32,6 mm
• Pressure: 35 - 350 bar

Features:

• Enerpac lower flange model swing cylinders do not require a fixture hole – cylinder can be bolted directly to fixture
• Flexible design allows for manifold or threaded port connection
• Hydraulic connections are made through SAE or BSPP oil connection or the standard integrated O-ring ports
• 30, 45 and 60 degree swing angles available on request
• Easiest mounting preparation in the swing cylinder line
• Symmetrical rectangular flange design enables clamping at three sides of the cylinder
• Allows extra large parts to be clamped

Enerpac lower flange series swing clamps can be bolted to the fixture, allowing easy installation of the unit and does not require machined
