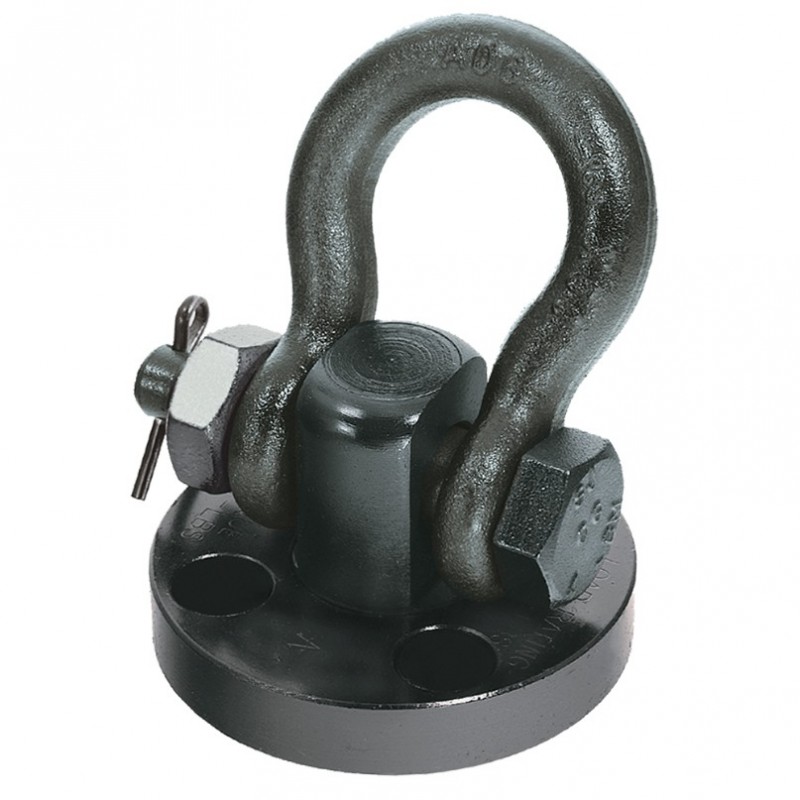

Carr Lane Shackle Hoist Rings
Shackle hoist rings are intended for permanent installation on tooling and equipment. The forged alloy-steel shackle pivots 180° and swivels 360° simultaneously, enabling lifting from any direction. They can be either bolted or welded into position, with a safety factor of 5:1. Available in load capacities up to 24,000 lbs.
- Load Rating - 2000 - 24000 lbs
- Nominal Shackle Size - 3/8 - 1-1/4
| Part Number | Material Number | Load Rating (LBS) | Nominal Shackle Size | Price | Add to Parts List |
|---|---|---|---|---|---|
| CL-36510-SHHR | 2000 | 3/8 | £179.35 £215.22 Inc. VAT |
|
|
| CL-36520-SHHR | 3000 | 7/16 | £203.34 £244.01 Inc. VAT |
|
|
| CL-36530-SHHR | 4000 | 1/2 | £233.96 £280.75 Inc. VAT |
|
|
| CL-36540-SHHR | 6500 | 5/8 | £268.82 £322.58 Inc. VAT |
|
|
| CL-36550-SHHR | 13000 | 7/8 | £355.13 £426.16 Inc. VAT |
|
|
| CL-36560-SHHR | 19000 | 1-1/8 | £474.53 £569.44 Inc. VAT |
|
|
| CL-36570-SHHR | 24000 | 1-1/4 | £583.24 £699.89 Inc. VAT |
|
Carr Lane Shackle Hoist Rings
- Load Rating - 2000 - 24000 lbs
- Nominal Shackle Size - 3/8 - 1-1/4
* Safety factor = 5:1
These swivel hoist rings are designed for permanent mounting on tooling and equipment. Forged alloy-steel shackle pivots 180° and swivels 360° simultaneously to allow lifting from any direction. Can be bolted or welded in place. Fasten with four grade-8 socket-head cap screws. Alternatively, install by welding around the entire perimeter of the base (certified welding). Always install so that the hoist ring can pivot and swivel freely.
