Pull Clamping Elements

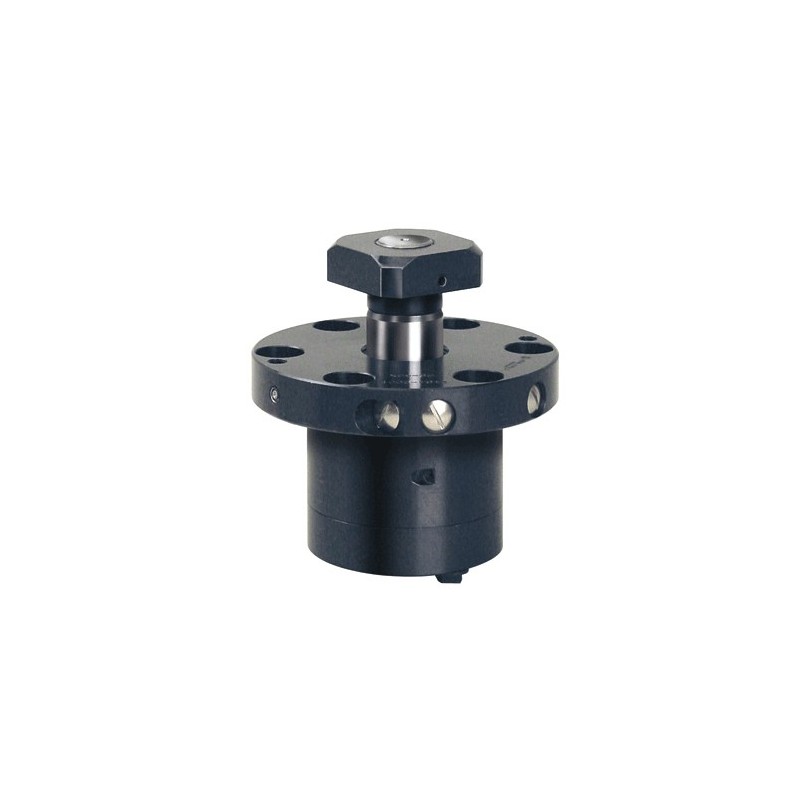

HILMA WZ 4.2180 Compact, Double Acting Pull Clamps for clamping dies on a press bed or press ram, used when space is limited.
- Max. pulling force 60 - 164 kN
- Piston diameter: 52 - 88 mm
- Clamping stroke: 10 mm
- Clamping edge: 28 - 48 mm
Pull Clamping Elements - HILMA WZ 4.2180
- Max. pulling force 60 - 164 kN
- Piston diameter: 52 - 88 mm
- Clamping stroke: 10 mm
- Clamping edge: 28 - 48 mm
Special features:
- Position monitoring ensures high functional safety
- Ideal power transmission with centrally arranged clamping elements
- Compact design
- Clamping force of between 60 and 104 kN
- Optimum use of bed and ram surfaces
- Die clamping in barely accessible positions
- Compensates for large clamping edge tolerances (± 1.5 mm)
Applications:
- Integrated in press rams
- Integrated in press beds
- In machine tools and equipment
- When the available space is limited
Function:

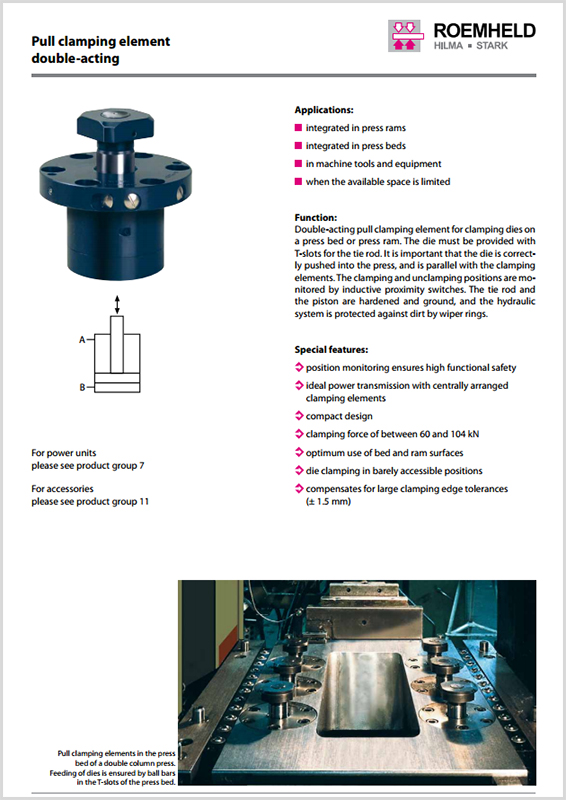

Double-acting pull clamping element for clamping dies on a press bed or press ram. The die must be provided with T-slots for the tie rod. It is important that the die is correctly pushed into the press, and is parallel with the clamping elements. The clamping and unclamping positions are monitored by inductive proximity switches. The tie rod and the piston are hardened and ground, and the hydraulic system is protected against dirt by wiper rings.
