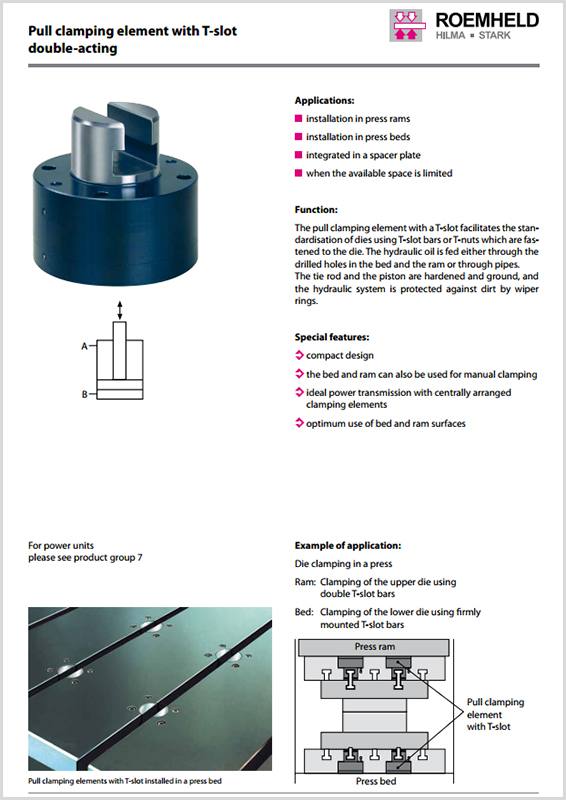

Pull Clamping Element with T-slot

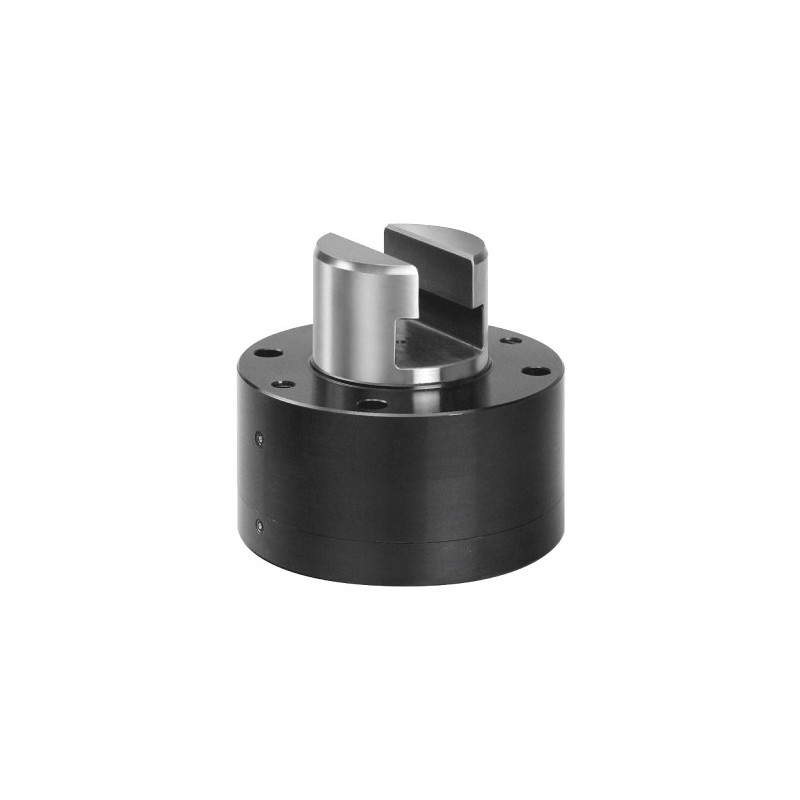

HILMA WZ 4.2350 Pull Clamp with T-Slot that facilitates a die standardisation by means of a T-slot bar or T-nuts on the die
- Max. pulling force 55 - 144 kN
- For T-slot: 18 - 28 mm
- Piston diameter: 70 - 105 mm
- Clamping stroke: 6 mm
Description
Downloads
Pull Clamping Element with T-slot - HILMA WZ 4.2350
- Max. pulling force 55 - 144 kN
- For T-slot: 18 - 28 mm
- Piston diameter: 70 - 105 mm
- Clamping stroke: 6 mm
Special features:
- Compact design
- The bed and ram can also be used for manual clamping
- Ideal power transmission with centrally arranged
- Clamping elements
- Optimum use of bed and ram surfaces
Applications:
- Installation in press rams
- Installation in press beds
- Integrated in a spacer plate
- When the available space is limited
Function:
The pull clamping element with a T-slot facilitates the standardisation of dies using T-slot bars or T-nuts which are fastened to the die. The hydraulic oil is fed either through the drilled holes in the bed and the ram or through pipes. The tie rod and the piston are hardened and ground, and the hydraulic system is protected against dirt by wiper rings.
