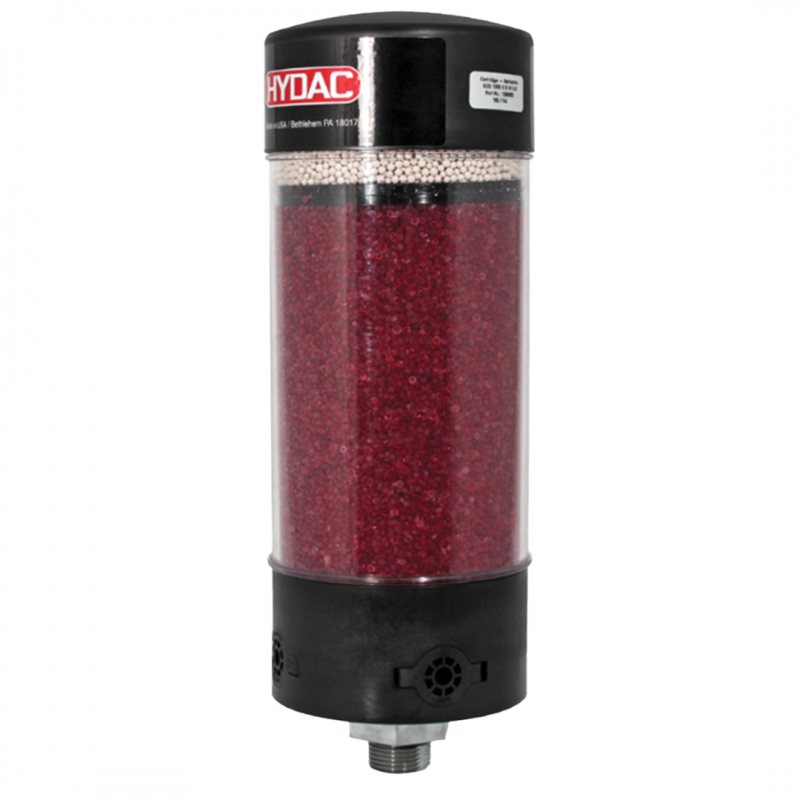

Hydac Tank Breather Dryer BDE

HYDAC Tank Breather Dryer BDE

• Air flow up to 5,500 l/min
• Fastening by means of flange, thread, or slip fit connection
• Installation sizes: 200, 400, 1000
• Two different desiccants used
• Temperature range: -30 °C to +100 °C
• Storage temperature: -40 °C to +100 °C

Features:

• When the filter is due to be changed the colour changes reliably from dark red to light orange
• As an option, and as a special protection of the desiccant, four valves are built into the bottom of the unit so that during system downtime the desiccants will not become saturated
• A check valve is available as an option to prevent exhaust air from the tank/transmission from flowing back through the desiccant
• The built-in pleated air filter element provides the filter with a very high contamination retention capacity
• Special models and accessories available on request
• Compatibility with hydraulic fluids ISO 2943
• The filter cartridge actively prevents contamination particles and humidity from entering the tank. Compatible with mineral oils and bio oils

Caution: The new BDE is not suitable as a breather for reservoirs containing highly flammable liquids (e.g. fuel, solvents, etc...)
