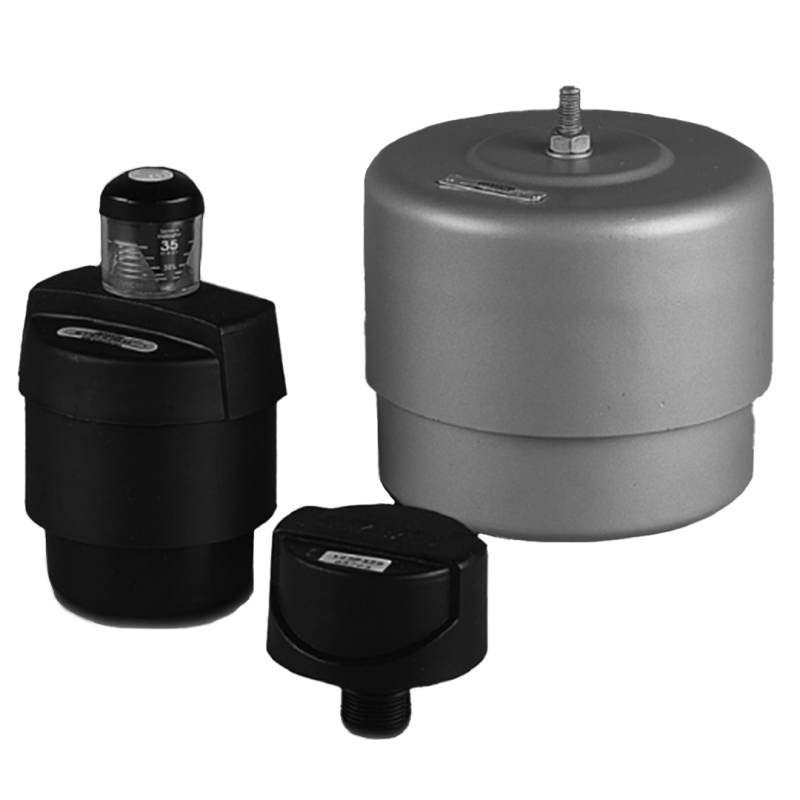

Hydac Tank Breather Filters BF
The HYDAC Tank Breather Filters BF offer reliable protection against airborne contaminants with airflow up to 15,000 l/min and a wide range of connection sizes. Designed for flexibility, they feature built-in or exchangeable elements, optional oil mist traps, and are compatible with ISO 2943 hydraulic fluids.
Key Features:
- Air flow up to 15000 l/min (with Dp=0.01 bar)
- Connections: G¼ to DN 125
- Installation sizes: 4, 10, 3, 30, 7, 72, 5, 52, 8, 9
Description
Downloads
HYDAC Tank Breather Filters BF
- Air flow up to 15000 l/min (with Dp=0.01 bar)
- Connections: G¼ to DN 125
- Installation sizes: 4, 10, 3, 30, 7, 72, 5, 52, 8, 9
Features:
- Breather filter sizes 4, 10, 3 and 30 consist of a housing which is screwed onto the oil tank, and a built-in filter element
- Sizes 5, 52, 7 and 72 have housings which are screwed onto the oil tank and have one or two exchangeable filter element(s)
- BF 5 and 52 are fitted with a built-in oil mist trap as standard
- Sizes 8 and 9 consist of a flange for mounting to the tank, an exchangeable
element and a cap - The BF 9 also has an oil mist trap which allows the oil to be drained via an oil drain plug
- Special models and accessories available on request
- HYDAC filter elements are validated and their quality is constantly monitored
- Compatibility with hydraulic fluids ISO 2943
