Roemheld Threaded-body Cylinders B1.450

Threaded Body Cylinders

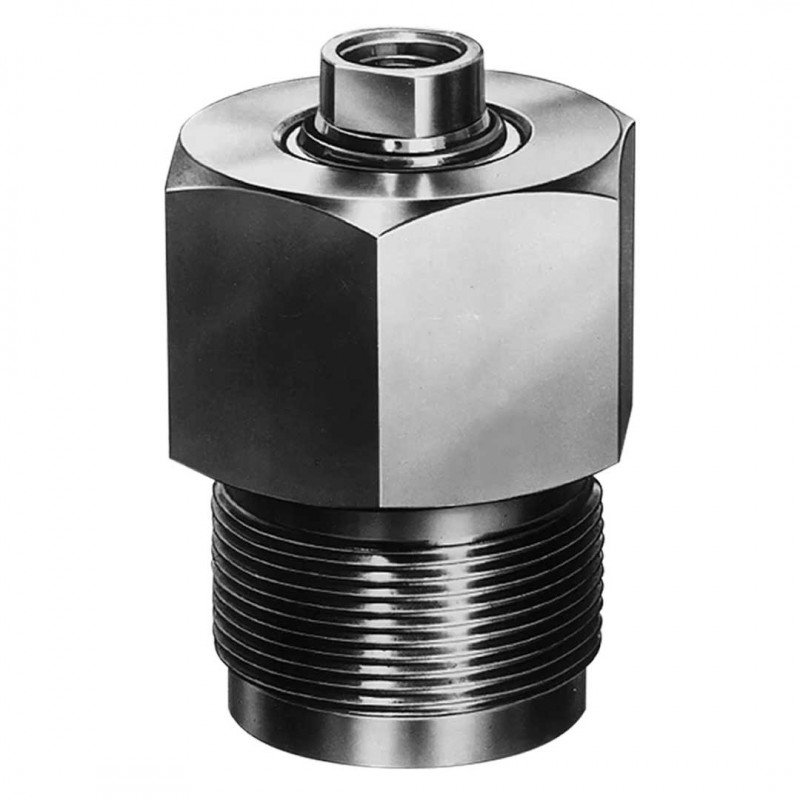

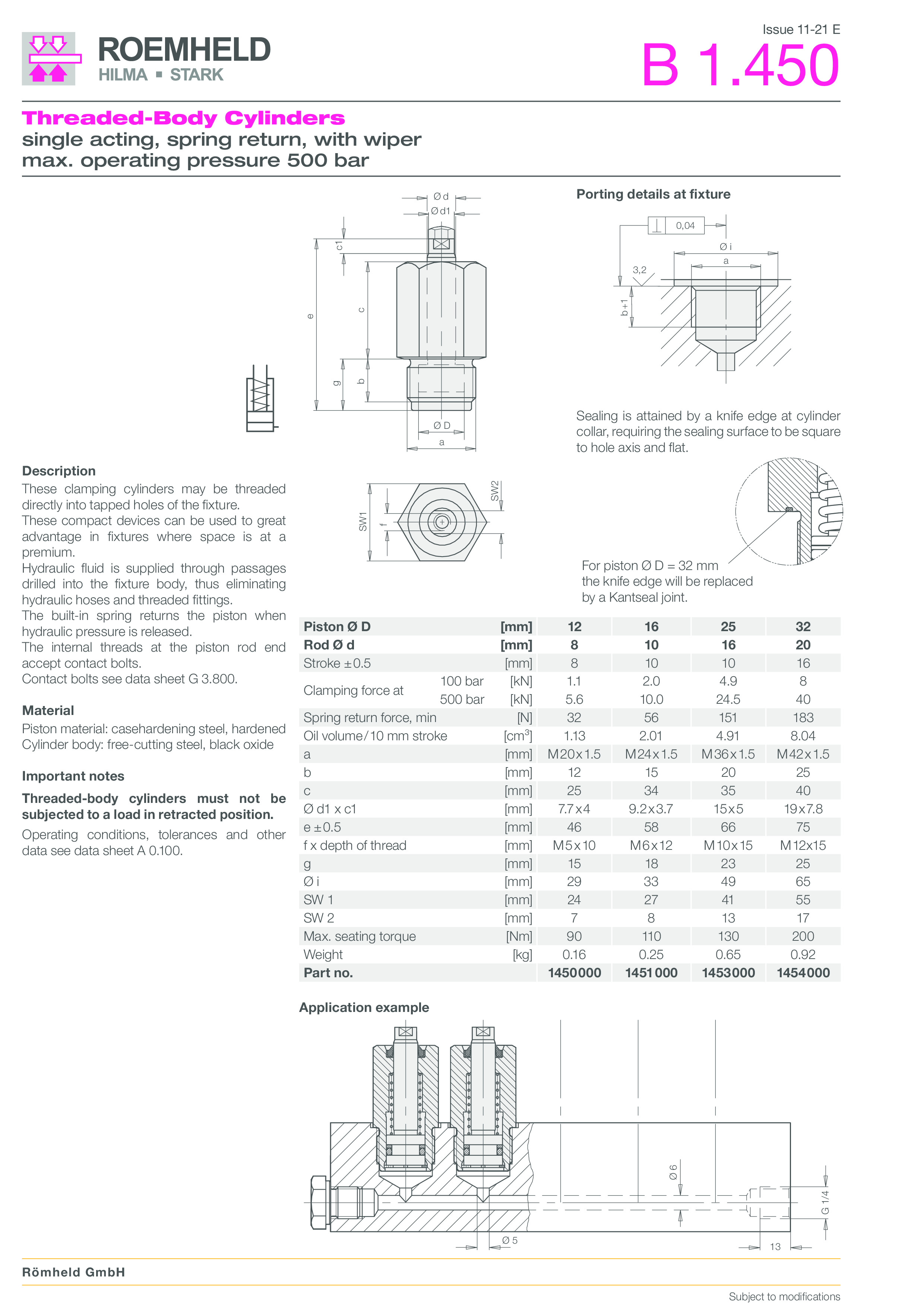

ROEMHELD B1.450 Hydraulic Threaded Body Cylinders

  • Single acting, spring return with wiper
  • Operating pressure 500 bar maximum
  • 4 sizes available
  • Strokes 8 to 16 mm
  • Clamping forces 5.6 to 40 kN at 500 bar

These hydraulic cylinders are threaded directly into the tapped holes of a clamping fixture. They are a compact solution and can be used to great advantage in fixtures where space is at a premium. Hydraulic fluid is supplied through passageways drilled into the fixture body, this reducing the use of hydraulic pipework, fittings and hoses. The built-in spring returns the piston when hydraulic pressure is released. The female threads at the piston rod end is designed to accept a contact bolt.

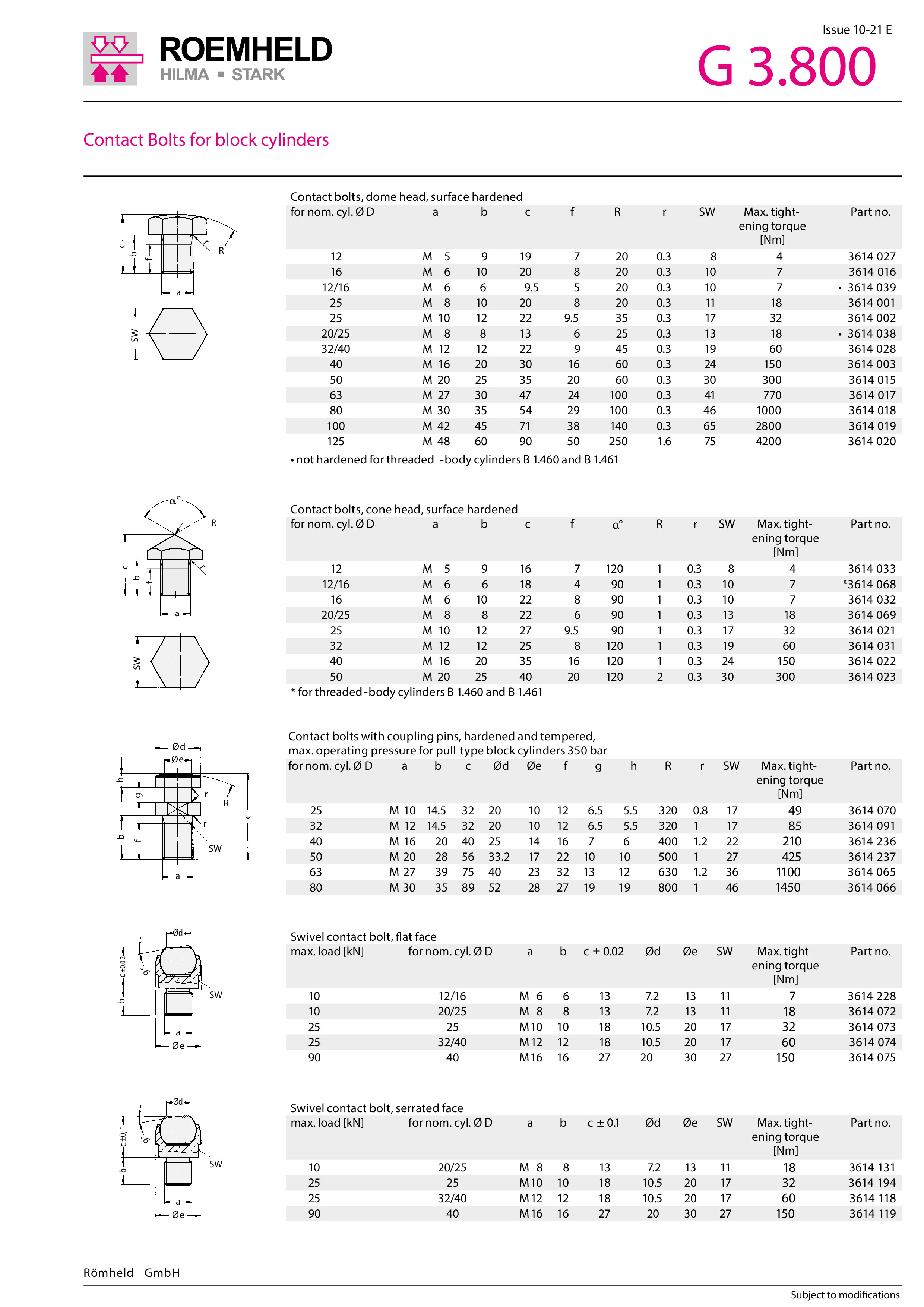

See datasheet G 3.800 for contact bolts.

Print page

Products
Downloads
Description
Part Number Material Number Stroke Clamping Force at 100 bar (kN) Clamping Force at 500 bar (kN) Mounting Cavity (mm) Price Add to Parts List
1450-000 1450-000 8mm 1.1 5.6 M20 x 1.5 £67.55
£81.06 Inc. VAT
1453-000 1453-000 10mm 4.9 24.5 M36 x 1.5 £105.63
£126.76 Inc. VAT
1451-000 1451-000 10mm 2.0 10.0 M24 x 1.5 £72.72
£87.27 Inc. VAT
1454-000 1454-000 16mm 8 40 M42 x 1.5 £120.76
£144.91 Inc. VAT
B1450
G3800
A0100

Threaded Body Cylinder - ROEMHELD B1.450

  • Single acting, spring return with wiper
  • Operating pressure 500 bar maximum
  • 4 sizes available
  • Strokes 8 to 16 mm
  • Clamping forces 1.1 to 8 kN at 500 bar
  • Clamping forces 5.6 to 40 kN at 500 bar
  • Piston material: casehardening steel, hardened
  • Cylinder body: free-cutting steel, black oxide

Material:

  • Piston material: casehardening steel, hardened
  • Cylinder body: free-cutting steel, black oxide

Description:

These hydraulic cylinders are threaded directly into the tapped holes of a clamping fixture. They are a compact solution and can be used to great advantage in fixtures where space is at a premium. Hydraulic fluid is supplied through passage ways drilled into the fixture body, this reducing the use of hydraulic pipework, fittings and hoses. The built-in spring returns the piston when hydraulic pressure is released. The female threads at the piston rod end is designed to accept a contact bolt.

See datasheet G 3.800 for contact bolts.

Important notes:

  • Threaded-body cylinders must not be subjected to a load in retracted position
  • Operating conditions, tolerances and other data see datasheet A 0.100
Quantity Unit discount You Save
