ROEMHELD B1.458 Threaded Body Cylinder

Threaded Body Cylinders with Spring Return

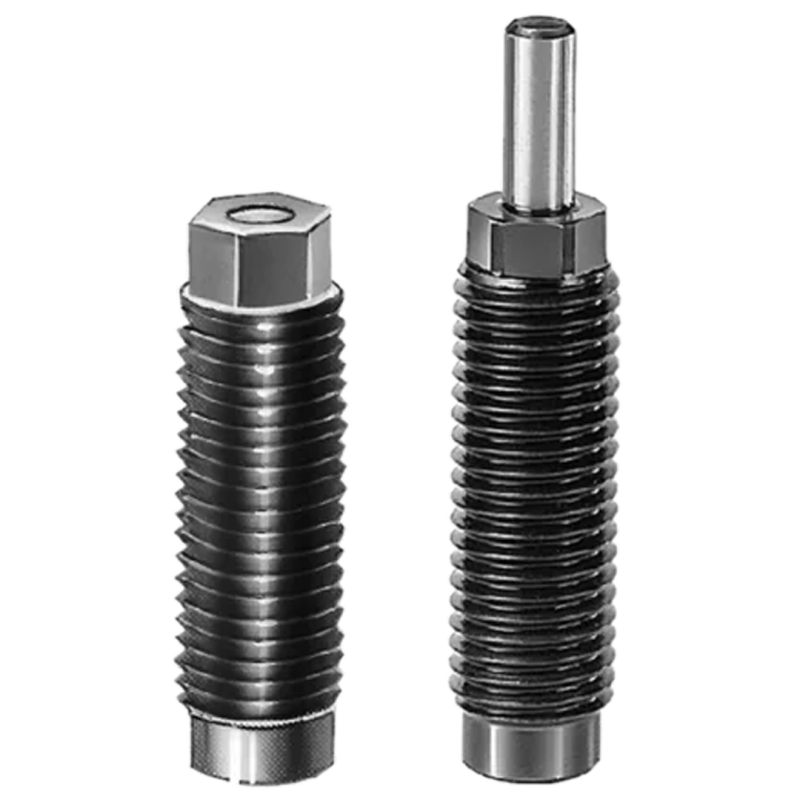

ROEMHELD B1.458 Threaded Body Cylinder:  single acting spring return

  • Operating pressure 500 / 160 bar maximum
  • Push force at 500 bar 2.5 kN
  • Push force at 160 bar 0.8 kN
  • Stroke Options 5 or 10 mm

Threaded-body cylinders are suitable for clamping of smaller workpieces in clamping fixtures. Sealing is made with the sealing ring supplied on a machined surface in a M12x1.5mm hole on the fixture. Multiple can be installed on a pitch as small as 15mm. Where the supplied sealing ring cannot be used, sealing nuts 3300-406 are available for sealing on the machined surface of the fixture as opposed to inside the threaded hole. Other mounting options included a connecting housing 3467-064 and hexagonal nuts 3300-408.

Print page

Products
Downloads
Description
Part Number Material Number Stroke Version Assembly Options Clamping Force at 100 bar (kN) Clamping Force at 500 bar (kN) Price Add to Parts List
1458-001 1458-001 5mm Standard with Sealing Ring 0.5 2.5 £54.81
£65.77 Inc. VAT
1458-101 1458-101 5mm Minimum Leakage Rate with Sealing Ring 0.5 2.5 £62.90
£75.48 Inc. VAT
1458-011 1458-011 5mm Standard with Sealing Ring and Piston Rod Extension 0.5 2.5 £57.73
£69.27 Inc. VAT
1458-111 1458-111 5mm Minimum Leakage Rate with Sealing Ring and Piston Rod Extension 0.5 2.5 £65.95
£79.15 Inc. VAT
1458-012 1458-012 10mm Standard with Sealing Ring and Piston Rod Extension 0.5 2.5 £66.62
£79.94 Inc. VAT
1458-002 1458-002 10mm Standard with Sealing Ring 0.5 2.5 £65.95
£79.15 Inc. VAT
1458-112 1458-112 10mm Minimum Leakage Rate with Sealing Ring and Piston Rod Extension 0.5 2.5 £77.10
£92.52 Inc. VAT
1458-102 1458-102 10mm Minimum Leakage Rate with Sealing Ring 0.5 2.5 £75.64
£90.77 Inc. VAT
B1458
A0100

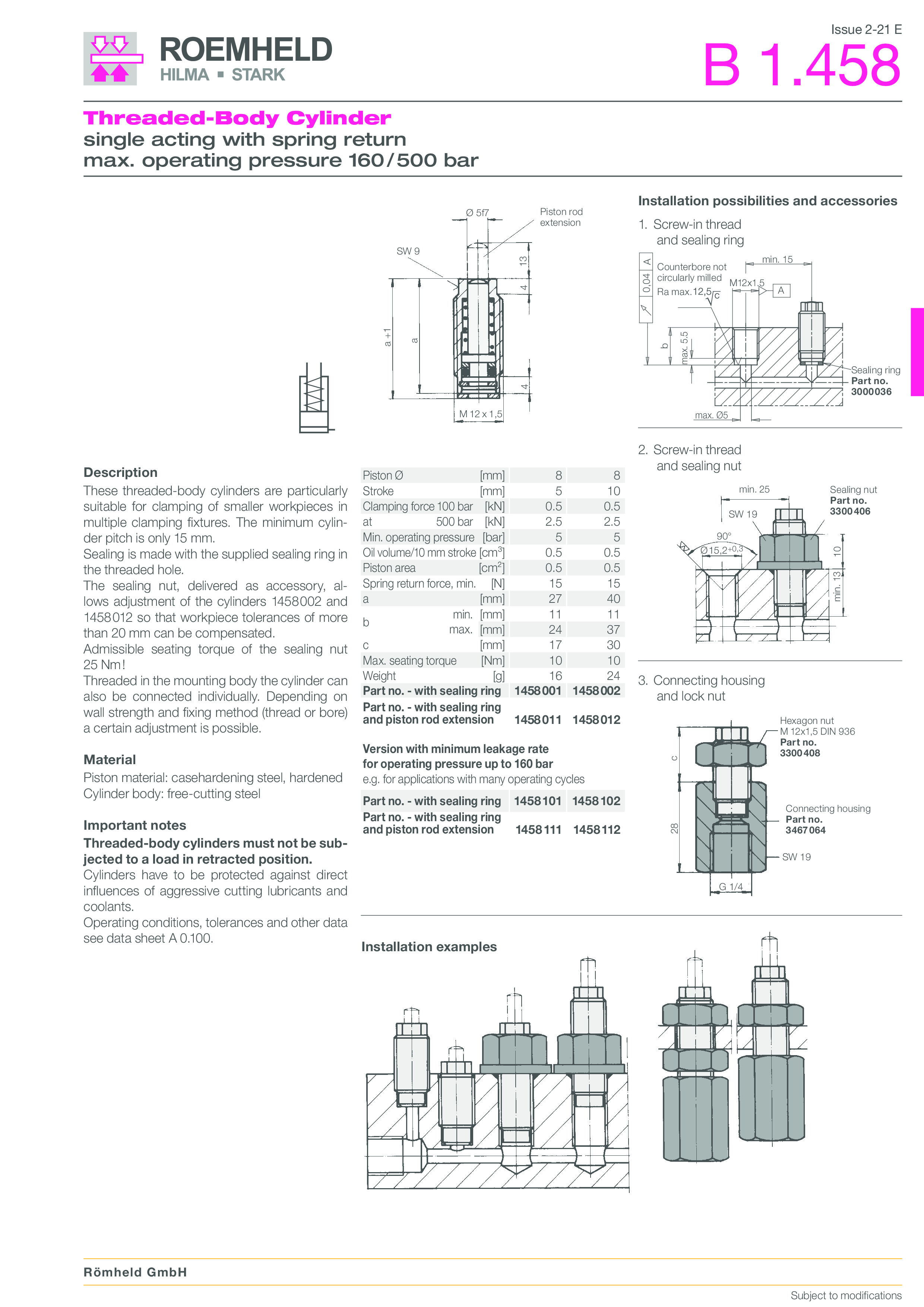

Threaded Body Cylinders with Spring Return - ROEMHELD B1.458

  • Max. operating pressure 160 / 500 bar
  • Stroke: 5 and 10 mm
  • Max. push force: 2.5 kN
  • External thread: M12

Material:

  • Piston material: casehardening steel, hardened
  • Cylinder body: free-cutting steel

Description:

These threaded-body cylinders are particularly suitable for clamping of smaller workpieces in multiple clamping fixtures. The minimum cylinder pitch is only 15 mm. Sealing is made with the supplied sealing ring in the threaded hole. The sealing nut, delivered as accessory, allows adjustment of the cylinders 1458-002 and 1458-012 so that workpiece tolerances of more than 20 mm can be compensated. Admissible seating torque of the sealing nut 25 Nm!
Threaded in the mounting body the cylinder can also be connected individually. Depending on wall strength and fixing method (thread or bore) a certain adjustment is possible.

Quantity Unit discount You Save
