Threaded Body Cylinders with Spring Return and Wiper Seal

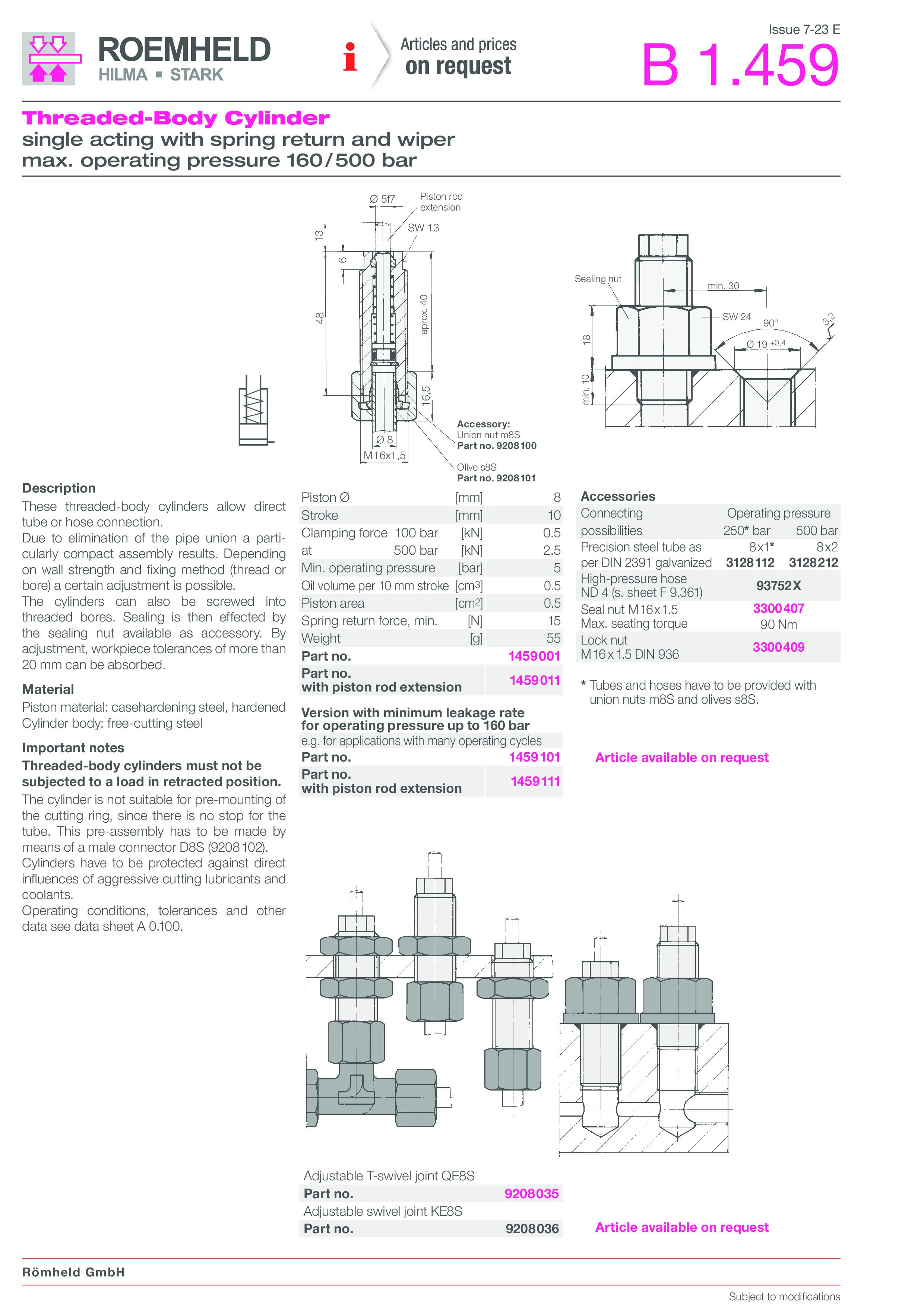

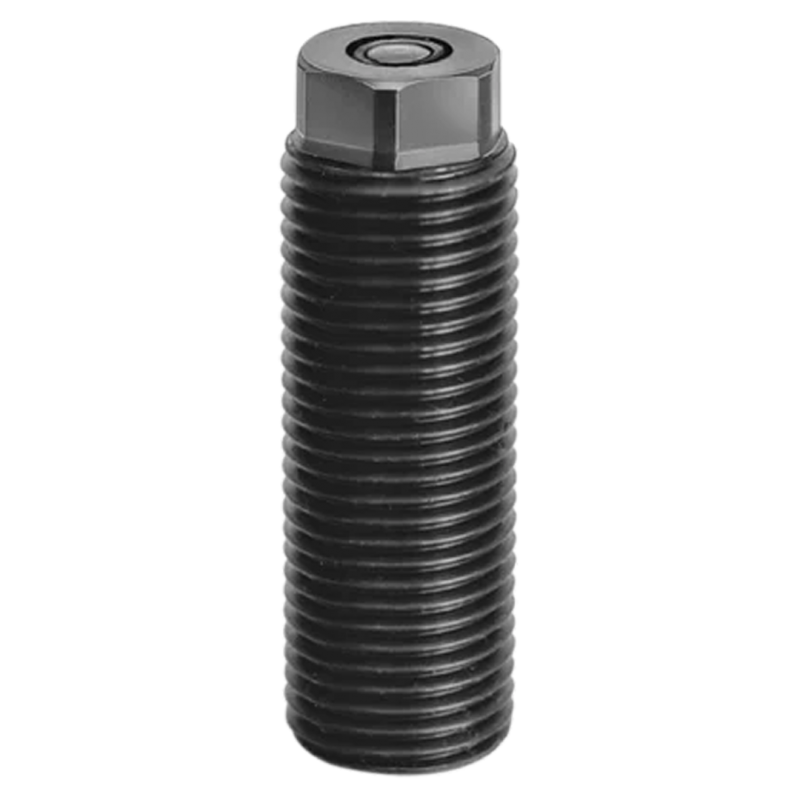

ROEMHELD B1.459 Threaded Body Cylinder: single acting with spring return
OBSOLETE ITEM - CONTACT HYQUIP
- Operating pressure 160 / 500 bar maximum
- Stroke 10 mm
- Push force 2.5 kN maximum
- M16 external thread
These threaded-body cylinders allow direct tube or hose connection. Due to elimination of the pipe union a particularly compact assembly results. Depending on wall strength and fixing method (thread or bore) a certain adjustment is possible. The cylinders can also be screwed into threaded bores. Sealing is then effected by the sealing nut available as accessory. By adjustment, workpiece tolerances of more than 20 mm can be absorbed.
| Part Number | Material Number | Stroke | Version | Assembly Options | Clamping Force at 100 bar (kN) | Clamping Force at 500 bar (kN) | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|---|
| 1459-001 | 10mm | Standard | n/a | 0.5 | 2.5 | On Enquiry | ||
| 1459-111 | 10mm | Minimum Leakage Rate | with Piston Rod Extension | 0.5 | 2.5 | On Enquiry | ||
| 1459-101 | 10mm | Minimum Leakage Rate | n/a | 0.5 | 2.5 | On Enquiry | ||
| 1459-011 | 10mm | Standard | with Piston Rod Extension | 0.5 | 2.5 | On Enquiry |
Threaded Body Cylinders with Spring Return and Wiper Seal - ROEMHELD B1.459
- Max. operating pressure 160 / 500 bar
- Stroke: 10 mm
- Max. push force: 2.5 kN
- External thread: M16
Material:
- Piston material: casehardening steel,hardened
- Cylinder body: free-cutting steel
Description:
These threaded-body cylinders allow direct tube or hose connection. Due to elimination of the pipe union a particularly compact assembly results. Depending on wall strength and fixing method (thread or bore) a certain adjustment is possible. The cylinders can also be screwed into threaded bores. Sealing is then effected by the sealing nut available as accessory. By adjustment, workpiece tolerances of more than 20 mm can be absorbed.
Important notes:
Threaded-body cylinders must not be subjected to a load in retracted position. The cylinder is not suitable for pre-mounting of the cutting ring, since there is no stop for the tube. This pre-assembly has to be made by means of a male connector D8S (9208 102). Cylinders have to be protected against direct influences of aggressive cutting lubricants and coolants. Operating conditions, tolerances and other data see datasheet A 0.100.
