Threaded Body Cylinders, Single Acting with Spring Return

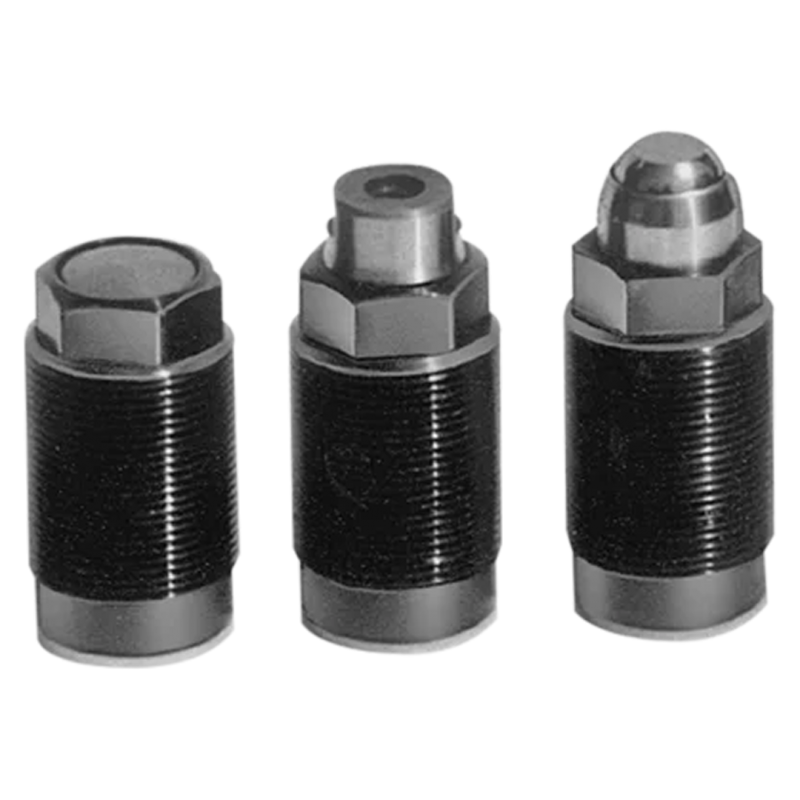

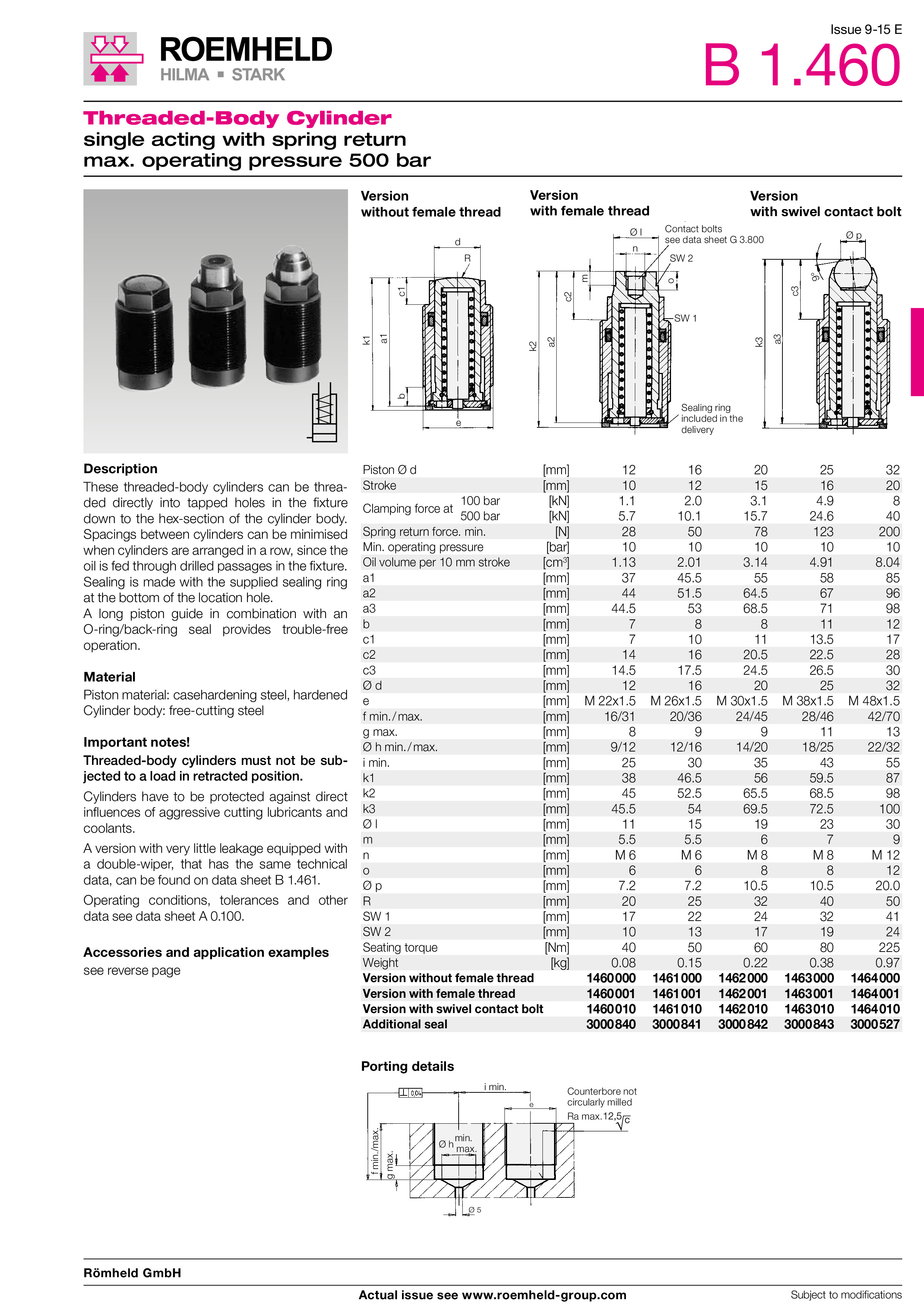

ROEMHELD B1.460 Threaded Body Cylinder: single acting with spring return
- Operating pressure 500 bar maximum
- Piston diameter ranging from 12 to 32 mm
- Stroke 10 - 20 mm
- Clamping force at 500 bar (5.7 - 40 kN)
- M22 - M48 external thread
These threaded-body cylinders can be threaded directly into tapped holes in the fixture down to the hex-section of the cylinder body. Spacings between cylinders can be minimised when cylinders are arranged in a row, since the oil is fed through drilled passages in the fixture. Sealing is made with the supplied sealing ring at the bottom of the location hole. A long piston guide in combination with an O-ring/back-ring seal provides trouble-free operation.
| Part Number | Material Number | Stroke | Assembly Options | Clamping Force at 100 bar (kN) | Clamping Force at 500 bar (kN) | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| 3000-840 | 10mm | Additional Seal | 1.1 | 5.7 | £3.01 £3.61 Inc. VAT |
|
|
| 1460-001 | 10mm | With Female Thread | 1.1 | 5.7 | £64.36 £77.23 Inc. VAT |
|
|
| 1460-010 | 10mm | With Swivel Contact Bolt | 1.1 | 5.7 | £114.13 £136.95 Inc. VAT |
|
|
| 1460-000 | 10mm | Without Female Thread | 1.1 | 5.7 | £63.70 £76.44 Inc. VAT |
|
|
| 3000-841 | 12mm | Additional Seal | 2.0 | 10.1 | £3.91 £4.69 Inc. VAT |
|
|
| 1461-001 | 12mm | With Female Thread | 2.0 | 10.1 | £75.64 £90.77 Inc. VAT |
|
|
| 1461-010 | 12mm | With Swivel Contact Bolt | 2.0 | 10.1 | £106.30 £127.56 Inc. VAT |
|
|
| 1461-000 | 12mm | Without Female Thread | 2.0 | 10.1 | £72.72 £87.27 Inc. VAT |
|
|
| 1462-010 | 15mm | With Swivel Contact Bolt | 3.1 | 15.7 | £134.03 £160.84 Inc. VAT |
|
|
| 1462-000 | 15mm | Without Female Thread | 3.1 | 15.7 | £87.72 £105.26 Inc. VAT |
|
|
| 3000-842 | 15mm | Additional Seal | 3.1 | 15.7 | £4.66 £5.59 Inc. VAT |
|
|
| 1462-001 | 15mm | With Female Thread | 3.1 | 15.7 | £88.38 £106.06 Inc. VAT |
|
|
| 3000-843 | 16mm | Additional Seal | 4.9 | 24.6 | £4.66 £5.59 Inc. VAT |
|
|
| 1463-001 | 16mm | With Female Thread | 4.9 | 24.6 | £100.46 £120.55 Inc. VAT |
|
|
| 1463-010 | 16mm | With Swivel Contact Bolt | 4.9 | 24.6 | £139.34 £167.21 Inc. VAT |
|
|
| 1463-000 | 16mm | Without Female Thread | 4.9 | 24.6 | £95.95 £115.14 Inc. VAT |
|
|
| 1464-010 | 20mm | With Swivel Contact Bolt | 8 | 40 | £246.83 £296.20 Inc. VAT |
|
|
| 1464-000 | 20mm | Without Female Thread | 8 | 40 | £168.54 £202.24 Inc. VAT |
|
|
| 3000-527 | 20mm | Additional Seal | 8 | 40 | £4.66 £5.59 Inc. VAT |
|
|
| 1464-001 | 20mm | With Female Thread | 8 | 40 | £180.48 £216.58 Inc. VAT |
|
Threaded Body Cylinders, Single Acting with Spring Return - ROEMHELD B1.460
- Max. operating pressure 500 bar
- Piston diameter: 12 - 32 mm
- Stroke: 10 - 20 mm
- Clamping force at 500 bar: 5.7 - 40 kN
- External thread: M22 - M48
Material:
- Piston material: casehardening steel, hardened
- Cylinder body: free-cutting steel
Description:
These threaded-body cylinders can be threaded directly into tapped holes in the fixture down to the hex-section of the cylinder body. Spacings between cylinders can be minimised when cylinders are arranged in a row, since the oil is fed through drilled passages in the fixture. Sealing is made with the supplied sealing ring at the bottom of the location hole. A long piston guide in combination with an O-ring/back-ring seal provides trouble-free operation.
