Threaded Body Cylinders with Double Wiper

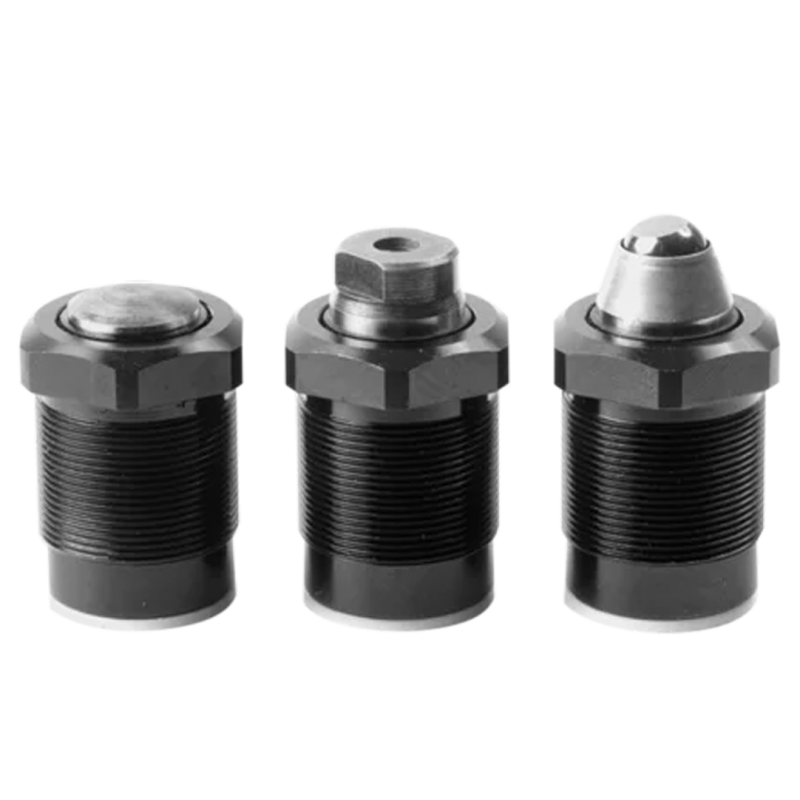

ROEMHELD B1.461 Threaded Body Cylinder: single acting with spring return and double wiper
- Operating pressure 500 bar maximum
- Piston diameter ranging from 12 - 32 mm
- Stroke 10 - 20 mm
- Clamping force at 500 bar (5.7 - 40 kN)
- M22 - M48 external thread
These threaded-body cylinders can be threaded directly into tapped holes in the fixture down to the hex-section of the cylinder body. Spacings between cylinders can be minimised when cylinders are arranged in a row, since the oil is fed through drilled passages in the fixture.
| Part Number | Material Number | Stroke | Assembly Options | Clamping Force at 100 bar (kN) | Clamping Force at 500 bar (kN) | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| 1460-101 | 10mm | With Female Thread | 1.1 | 5.7 | £81.61 £97.94 Inc. VAT |
|
|
| 1460-110 | 10mm | With Swivel Contact Bolt | 1.1 | 5.7 | £128.72 £154.47 Inc. VAT |
|
|
| 1460-100 | 10mm | Without Female Thread | 1.1 | 5.7 | £73.39 £88.06 Inc. VAT |
|
|
| 1461-110 | 12mm | With Swivel Contact Bolt | 2.0 | 10.1 | £130.05 £156.06 Inc. VAT |
|
|
| 1461-100 | 12mm | Without Female Thread | 2.0 | 10.1 | £81.61 £97.94 Inc. VAT |
|
|
| 1461-101 | 12mm | With Female Thread | 2.0 | 10.1 | £88.38 £106.06 Inc. VAT |
|
|
| 1462-101 | 15mm | With Female Thread | 3.1 | 15.7 | £99.00 £118.80 Inc. VAT |
|
|
| 1462-110 | 15mm | With Swivel Contact Bolt | 3.1 | 15.7 | £159.25 £191.10 Inc. VAT |
|
|
| 1462-100 | 15mm | Without Female Thread | 3.1 | 15.7 | £95.02 £114.02 Inc. VAT |
|
|
| 1463-110 | 16mm | With Swivel Contact Bolt | 4.9 | 24.6 | £177.83 £213.39 Inc. VAT |
|
|
| 1463-100 | 16mm | Without Female Thread | 4.9 | 24.6 | £109.35 £131.22 Inc. VAT |
|
|
| 1463-101 | 16mm | With Female Thread | 4.9 | 24.6 | £118.11 £141.73 Inc. VAT |
|
|
| 1464-110 | 20mm | With Swivel Contact Bolt | 8 | 40 | £260.10 £312.12 Inc. VAT |
|
|
| 1464-100 | 20mm | Without Female Thread | 8 | 40 | £195.08 £234.09 Inc. VAT |
|
|
| 1464-101 | 20mm | With Female Thread | 8 | 40 | £204.37 £245.24 Inc. VAT |
|

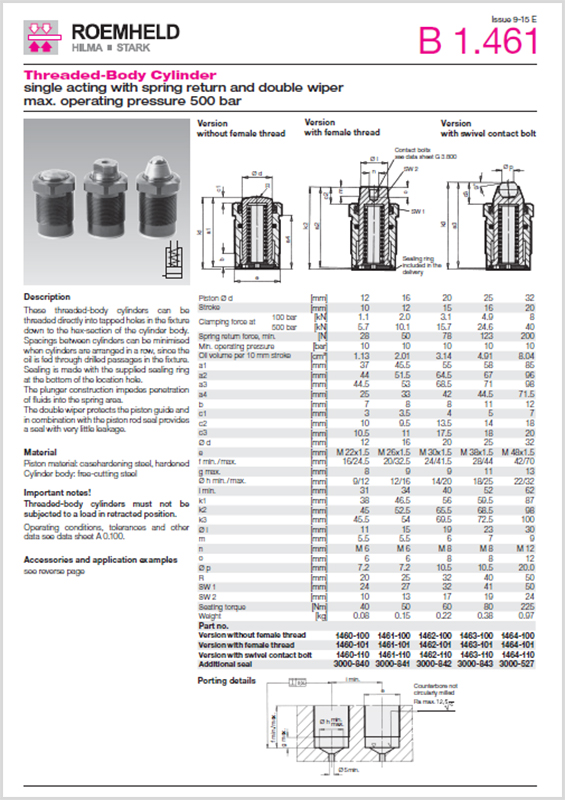

Threaded Body Cylinders with Double Wiper - ROEMHELD B1.461
- Operating pressure 500 bar maximum
- Piston diameter: 12 - 32 mm
- Stroke: 10 - 20 mm
- Clamping force at 500 bar: 5.7 - 40 kN
- External thread: M22 - M48
Material:
- Piston material: casehardening steel, hardened
- Cylinder body: free-cutting steel
Description:
These threaded-body cylinders can be threaded directly into tapped holes in the fixture down to the hex-section of the cylinder body. Spacings between cylinders can be minimised when cylinders are arranged in a row, since the oil is fed through drilled passages in the fixture. Sealing is made with the supplied sealing ring at the bottom of the location hole. The plunger construction impedes penetration of fluids into the spring area. The double wiper protects the piston guide and in combination with the piston rod seal provides a seal with very little leakage.
