Threaded Body Cylinders, Short Stroke Single Acting

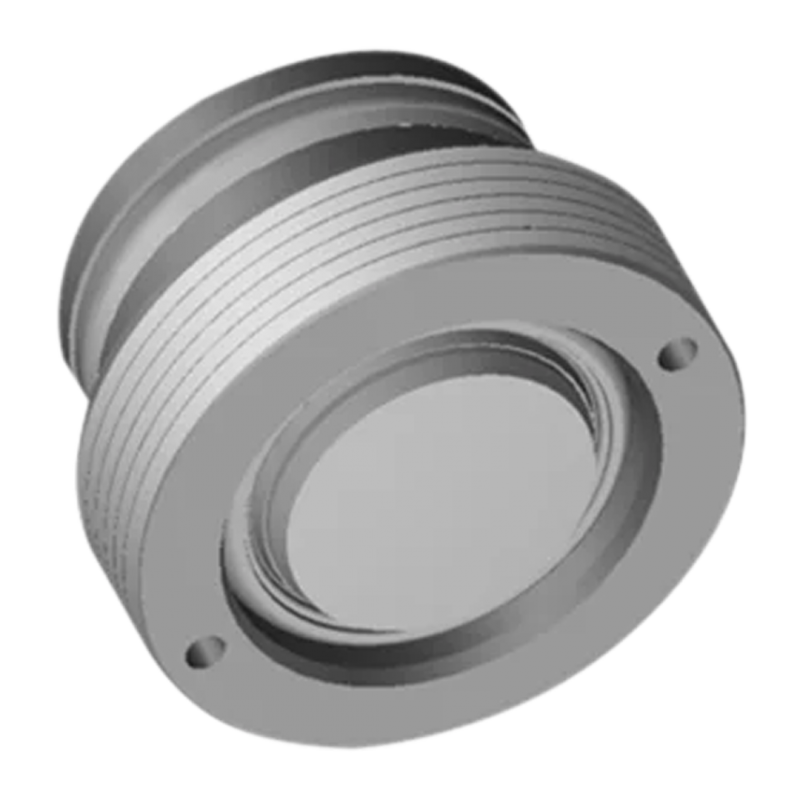

ROEMHELD B1.464 Threaded Body Cylinder: short stroke, single acting with spring return
- Operating pressure 500 bar maximum
- Piston diameter ranges from 20 to 32 mm
- Stroke Options are 4 and 8 mm
- Clamping Force at 500 bar (5.7 - 40.2 kN)
- M38 - M56 external threads

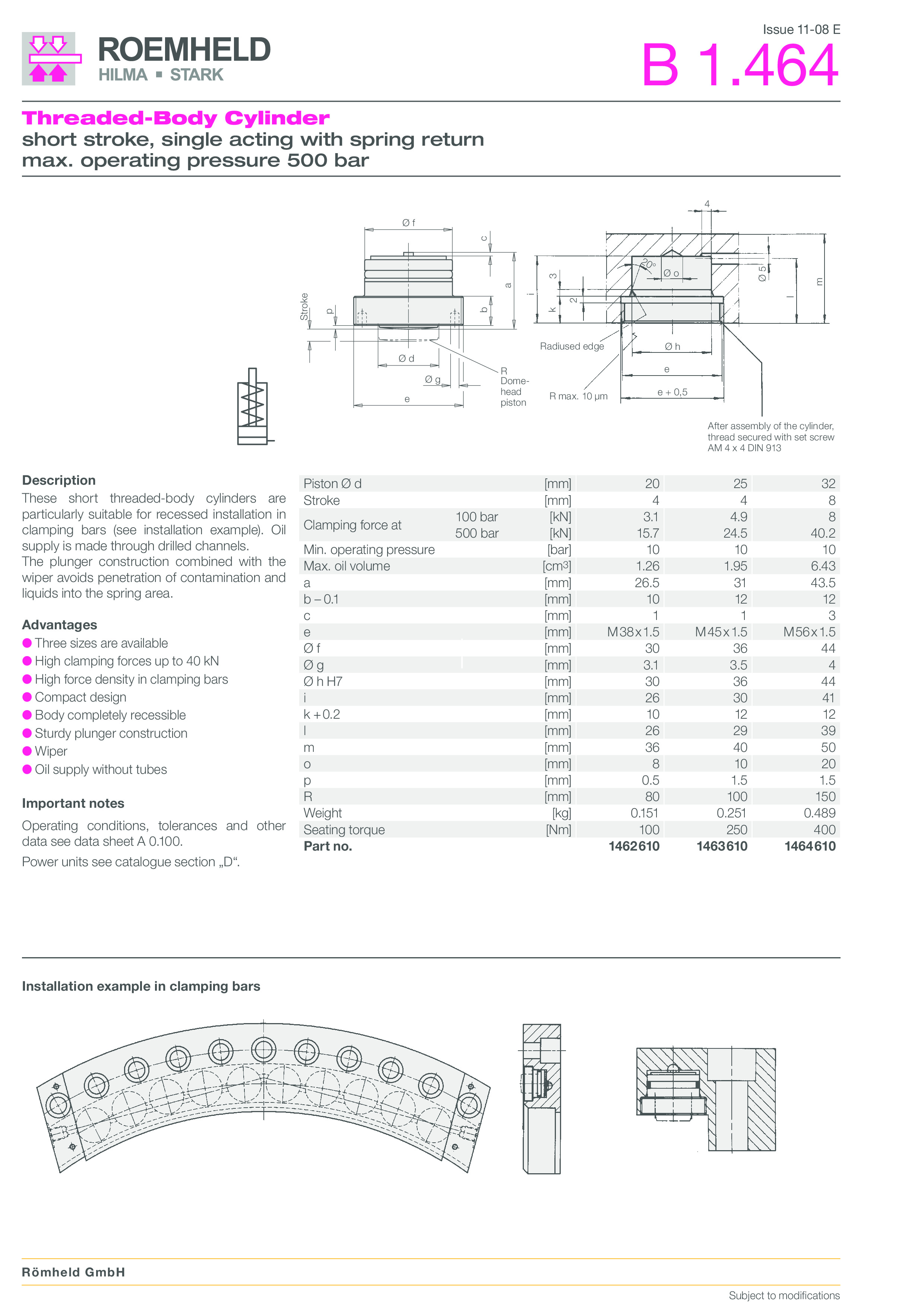

These short threaded-body cylinders are particularly suitable for recessed installation in clamping bars (see datasheet). Oil supply is made through drilled channels. The plunger construction combined with the wiper avoids penetration of contamination and liquids into the spring area.
Description
Downloads
Threaded Body Cylinders, Short Stroke Single Acting - ROEMHELD B1.464
- Max. operating pressure 500 bar
- Piston diameter: 20 - 32 mm
- Stroke: 4 and 8 mm
- Clamping Force at 500 bar : 15.7 - 40.2 kN
- External thread: M38 - M56
Advantages:
- Three sizes are available
- High clamping forces up to 40 kN
- High force density in clamping bars
- Compact design
- Body completely recessible
- Sturdy plunger construction
- Wiper
- Oil supply without tubes
Description:
These short threaded-body cylinders are particularly suitable for recessed installation in clamping bars (see installation example). Oil supply is made through drilled channels. The plunger construction combined with the wiper avoids penetration of contamination and liquids into the spring area.
