Double Acting Threaded Body Cylinders

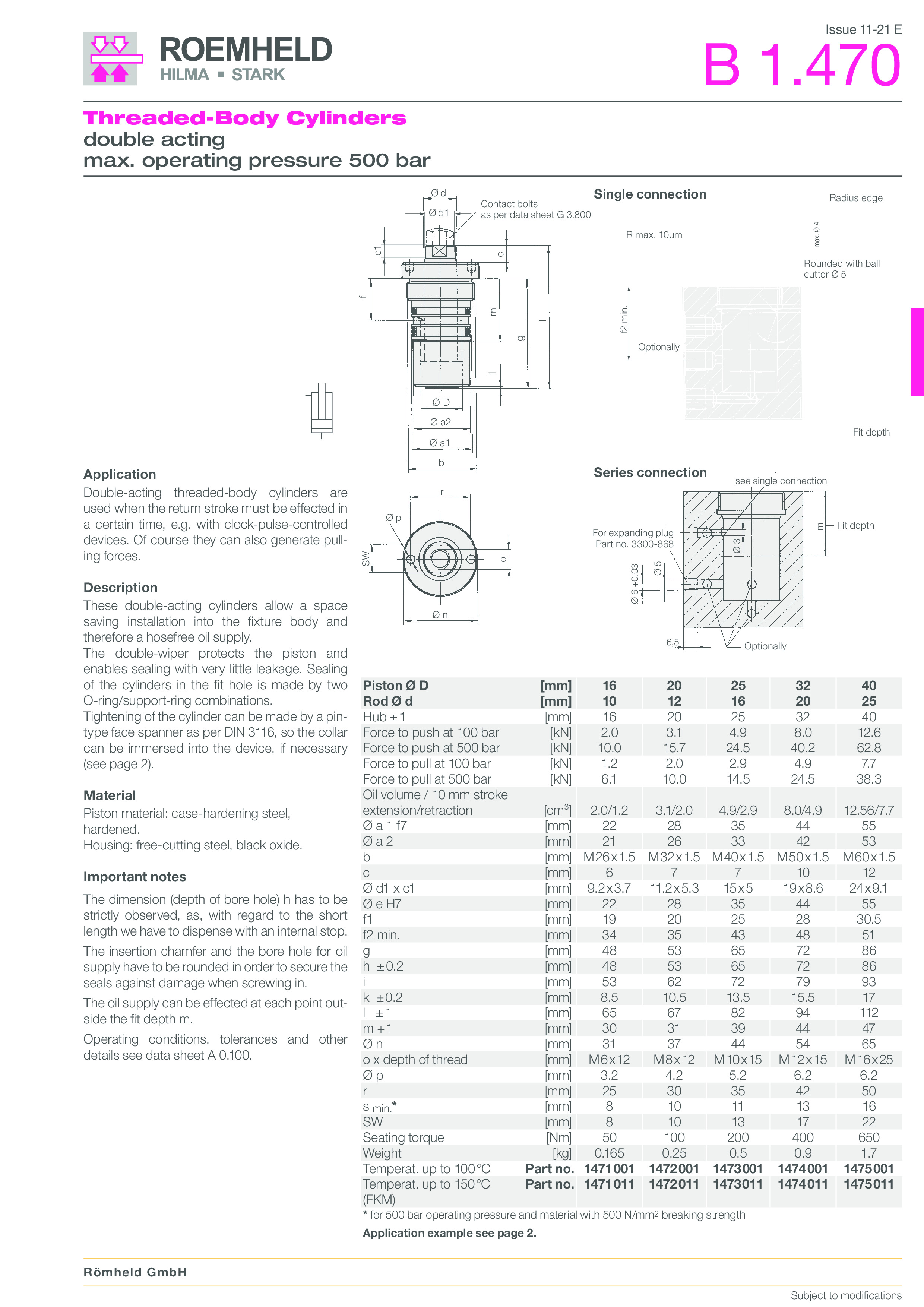

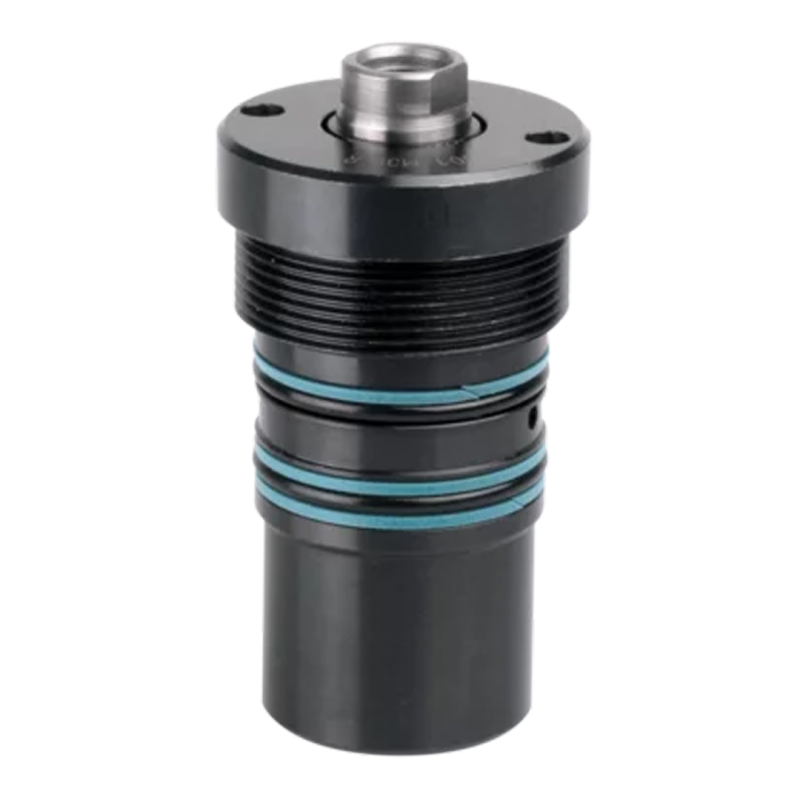

ROEMHELD B1.470 Threaded Body Cylinder: double acting.
- Operating pressure 500 bar maximum
- Piston diameter ranges from 16 to 40 mm
- Rod diameter 10 to 25 mm
- Stroke ranges from 16 to 40 mm
- Push force 10.0 to 62.8 kN maximum
- M26 - M60 external thread
These double-acting cylinders allow a space saving installation into the fixture body and therefore a hose free oil supply. The double-wiper protects the piston and enables sealing with very little leakage. Sealing of the cylinders in the fit hole is made by two O-ring/support-ring combinations.
Double Acting Threaded Body Cylinders - ROEMHELD B1.470
- Max. operating pressure 500 bar
- Piston diameter: 16 - 40 mm
- Rod diameter: 10 - 25 mm
- Stroke: 16 - 40 mm
- Max. push force: 10.0 - 62.8 kN
- External thread: M26 - M60
Material:
- Piston material: case-hardening steel, hardened.
- Housing: free-cutting steel, black oxide.
Application:
Double-acting threaded-body cylinders are used when the return stroke must be effected in a certain time, e.g. with clock-pulse- controlled devices. Of course they can also generate pulling forces.
Description:
These double-acting cylinders allow a space saving installation into the fixture body and therefore a hosefree oil supply. The double-wiper protects the piston and enables sealing with very little leakage. Sealing of the cylinders in the fit hole is made by two O-ring/support-ring comb inations. Tightening of the cylinder can be made by a pin-type face spanner as per DIN 3116, so the collar can be immersed into the device, if necessary.
