Z2FS 6 Size 6 Series 4x
Twin throttle check valves type Z2FS 6
- Size: 6
- Component series: 4X
- Maximum operating pressure: 315 bar
- Maximum flow: 80 l/min
Products

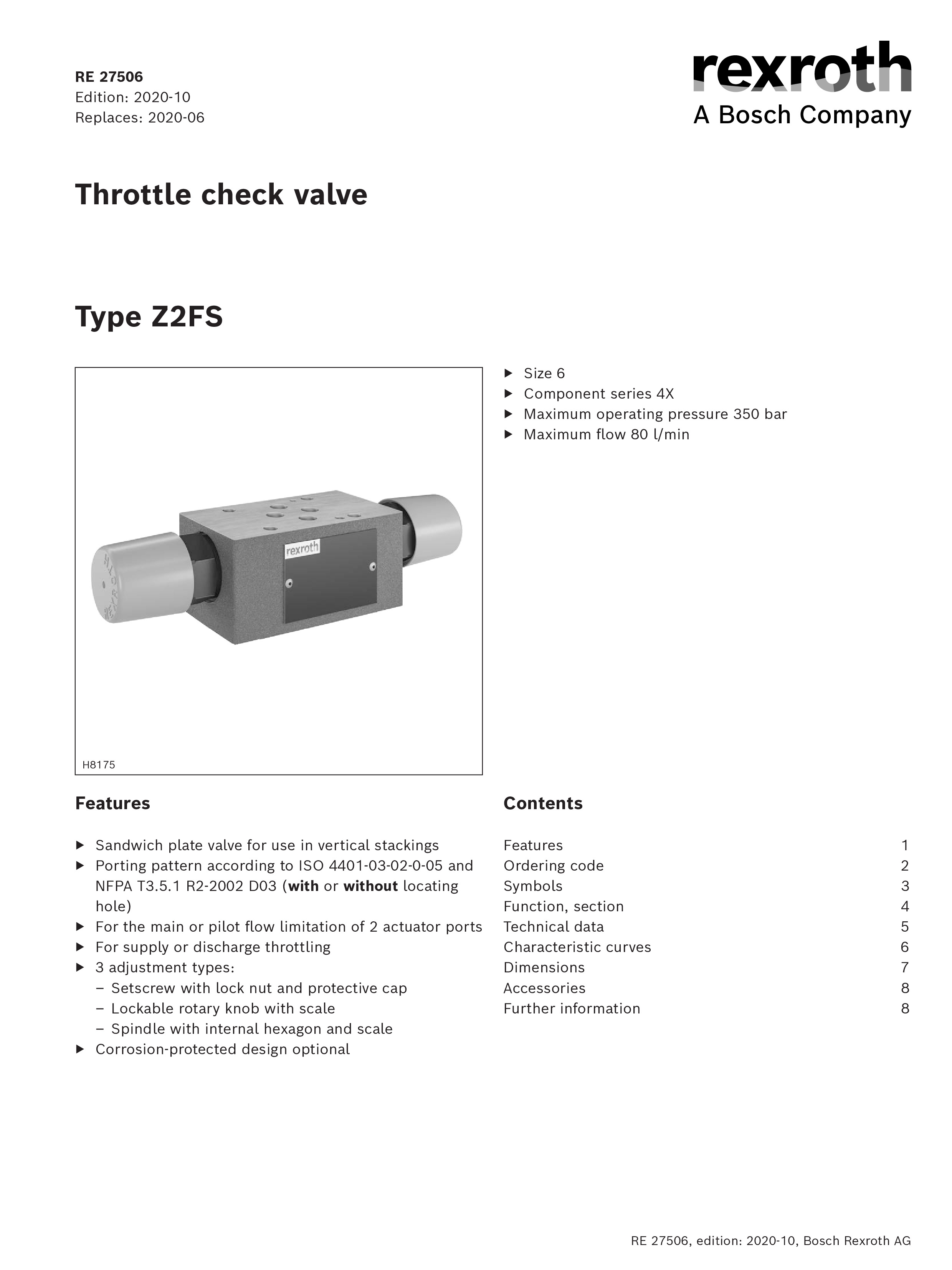

Downloads
Description
| Part Number | Material Number | No-Show | Price | Add to Parts List |
|---|---|---|---|---|
| Z2FS 6-2-4X/1Q | R900481621 | 0 | £292.46 £350.95 Inc. VAT |
|
| Z2FS 6-5-4X/2QV | R900476838 | 0 | £369.60 £443.52 Inc. VAT |
|
| Z2FS 6 A2-4X/2QV | R900439389 | 0 | £292.46 £350.95 Inc. VAT |
|
| Z2FS 6-2-4X/1QV | R900481623 | 0 | £292.46 £350.95 Inc. VAT |
|
| Z2FS 6-3-4X/2QV | R900455714 | 0 | £654.05 £784.86 Inc. VAT |
|
| Z2FS 6 B2-4X/2QV | R900440565 | 0 | £292.46 £350.95 Inc. VAT |
|
| Z2FS 6-2-4X/2QV | R900481624 | 0 | £292.46 £350.95 Inc. VAT |
|
| Z2FS 6-2-4X/2Q | R900481622 | 5 | £292.46 £350.95 Inc. VAT |
|

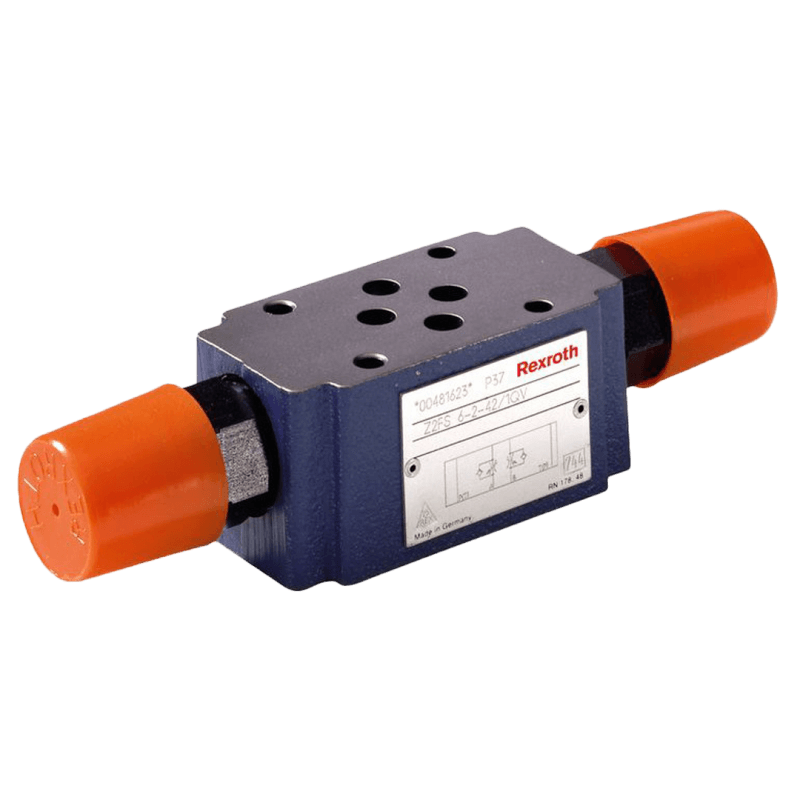

Bosch Rexroth Twin Throttle Check Valves Type Z2FS 6
- Size: 6
- Component series: 4X
- Maximum operating pressure: 315 bar
- Maximum flow: 80 l/min
Features:
- Sandwich plate valve for use in vertical stackings
- Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03 (with or without locating hole)
- For the main or pilot flow limitation of 2 actuator ports
- For supply or discharge throttling
- 3 adjustment types:
- Setscrew with lock nut and protective cap
- Lockable rotary knob with scale
- Spindle with internal hexagon and scale - Corrosion-protected design optional
| Quantity | Unit discount | You Save |
|---|
